Product information

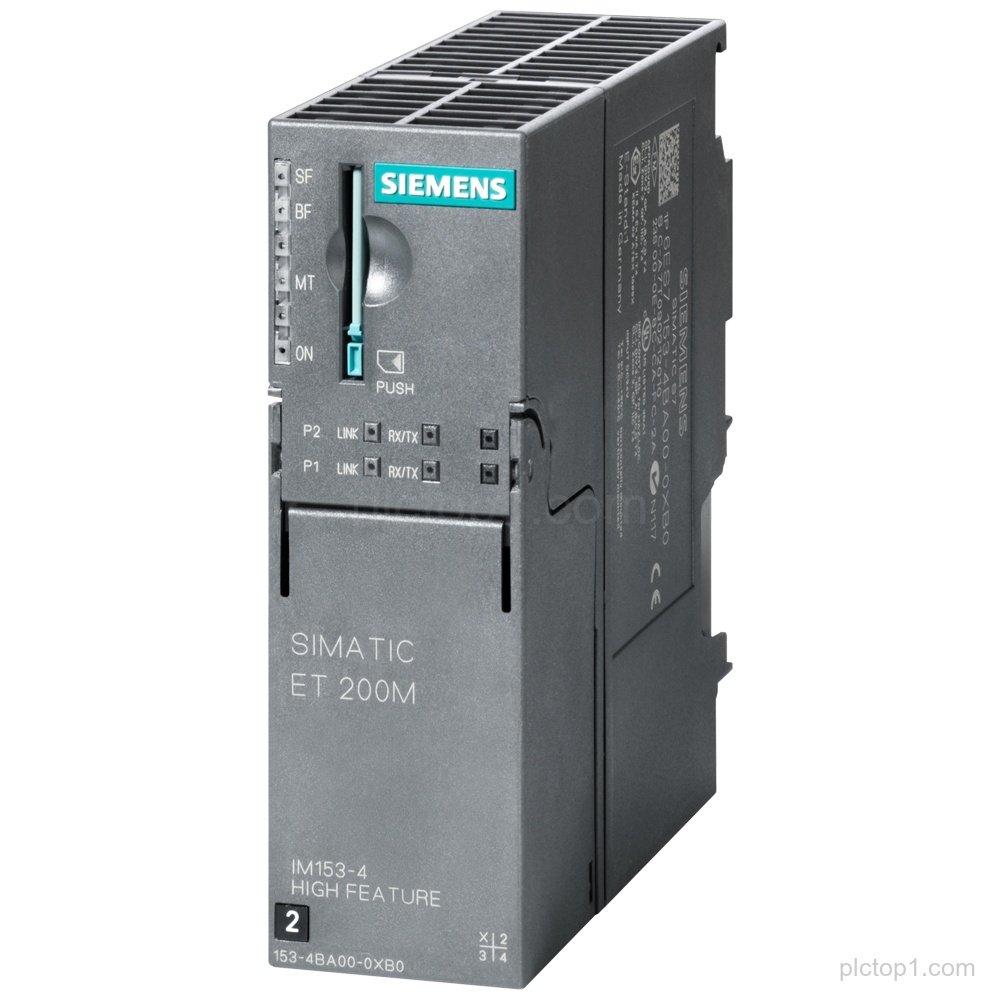

SIMATIC DP connection ET 200M IM 153-4 PN IO High Feature, spare part for part number 6ES7153-4BA00-0XB0, supports up to 12 S7-300 modules and includes support for fail-safe modules, HART modules, shared device, and a medium redundancy protocol.
Detailed Parameters
Product type:Spare part
System family:SIMATIC DP
Connection:ET 200M IM 153-4 PN IO High Feature
Maximum S7-300 modules:12
Supports fail-safe modules:Yes
Supports HART modules:Yes
Shared device:Supported
Medium redundancy protocol:Supported
Engineering Context
The SIMATIC DP connection is designed for ET 200M IM 153-4 PN IO High Feature operation with up to 12 S7-300 modules.
The configuration supports fail-safe modules and HART modules.
The product supports a shared device and a medium redundancy protocol depending on system configuration.
FAQ
1. What is the product part number?
The part number is 6ES7153-4BA00-0XB0.
2. Which SIMATIC family and connection type are used?
It is a SIMATIC DP connection for ET 200M IM 153-4 PN IO High Feature.
3. What is the maximum number of S7-300 modules it supports?
It supports for max. 12 S7-300 modules.
4. Does it support fail-safe modules?
Yes, it supports fail-safe modules.
5. Does it support HART modules?
Yes, it supports HART modules.
6. What additional system functions are supported?
It supports shared device and medium redundancy protocol.
