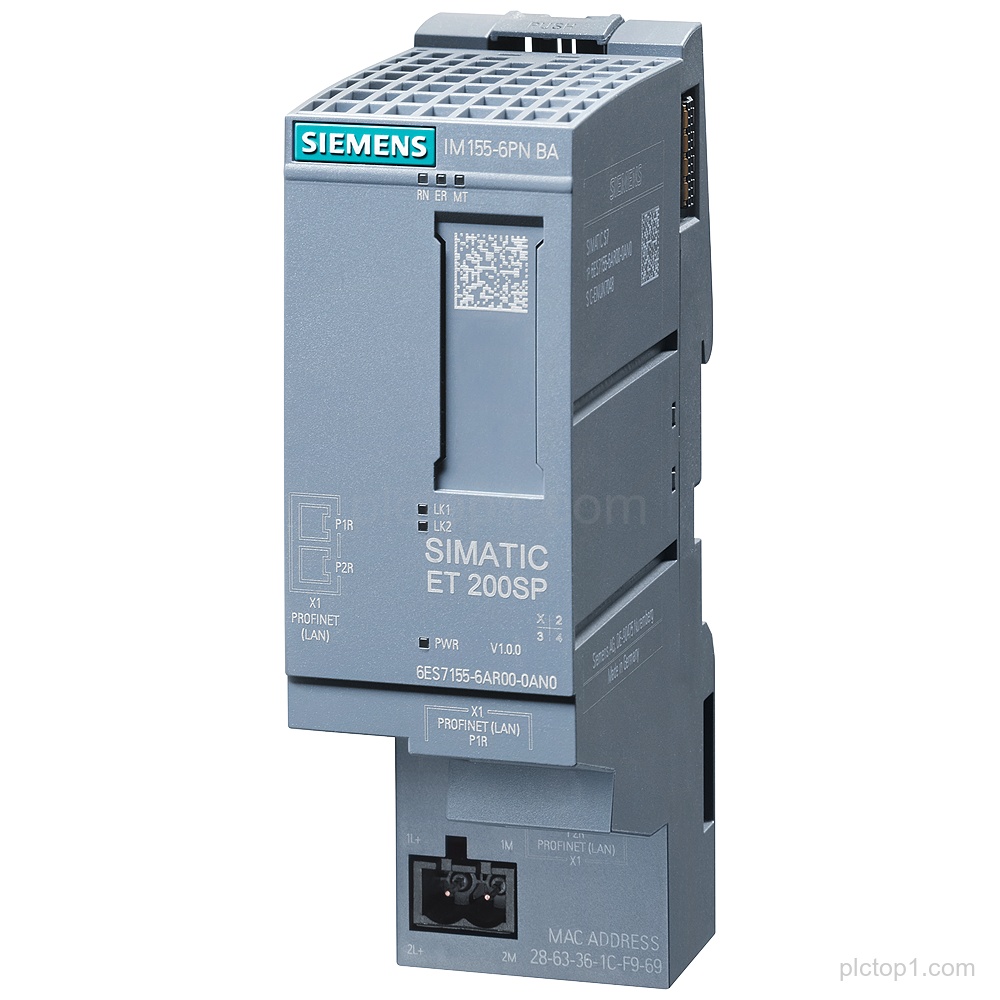

SIMATIC ET 200SP PROFINET interface module IM 155-6PN Basic (Part number: 6ES7155-6AR00-0AN0) provides a PROFINET interface and supports a system configuration of up to 12 I/O modules with 2x integrated RJ45 sockets incl. server module.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:PROFINET interface module
Designation:IM 155-6PN Basic
Max. number of I/O modules:12
Integrated RJ45 sockets:2x
RJ45 sockets include:server module
Part number:6ES7155-6AR00-0AN0
Engineering Context
Use the SIMATIC ET 200SP PROFINET interface module IM 155-6PN Basic to provide the PROFINET interface for the ET 200SP system.
The module is designed for configurations with up to 12 I/O modules.
The module includes 2x integrated RJ45 sockets including the server module.
FAQ
1. What product family and module type does 6ES7155-6AR00-0AN0 belong to?
6ES7155-6AR00-0AN0 belongs to SIMATIC ET 200SP and is a PROFINET interface module (IM 155-6PN Basic).
2. What is the maximum number of I/O modules supported?
The maximum number of I/O modules supported is 12.
3. How many integrated RJ45 sockets are included?
The module includes 2x integrated RJ45 sockets.
4. Do the integrated RJ45 sockets include a server module?
Yes, the 2x integrated RJ45 sockets are specified as including the server module.
