Product information

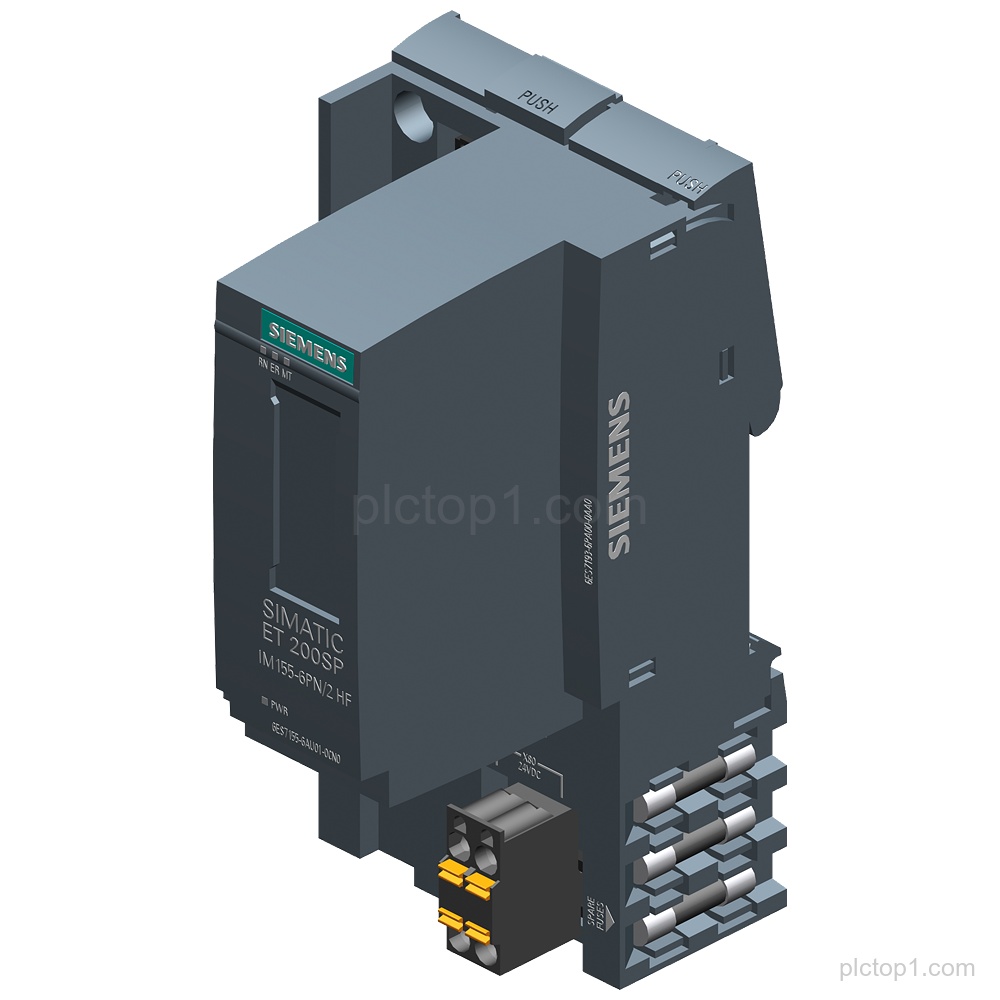

SIMATIC ET 200SP PROFINET 2-port interface module IM 155-6PN/2 High Feature (Part Number: 6ES7155-6AU01-0CN0) provides PROFINET interface capability with 2-port structure, high feature configuration, and system support for S2 redundancy and multi-hotswap, including server module.
Detailed Parameters
PROFINET:2-port interface module
Module designation:IM 155-6PN/2 High Feature
Number of ports:2
Slot for BusAdapter:1 slot
Max. I/O modules:64
Max. ET 200AL modules:16
Redundancy:S2 redundancy
Hot swap support:multi-hotswap
System cycle time:0.25 ms
Mode:isochronous mode
PN strain relief:optional
Included:including server module
Engineering Context
The IM 155-6PN/2 High Feature is a SIMATIC ET 200SP PROFINET 2-port interface module intended for system configurations with up to 64 I/O modules and 16 ET 200AL modules.
S2 redundancy and multi-hotswap are supported for relevant ET 200SP system configurations.
The module supports isochronous mode with a specified value of 0.25 ms.
FAQ
1. What is the product family and designation for Part Number 6ES7155-6AU01-0CN0?
It is SIMATIC ET 200SP PROFINET 2-port interface module IM 155-6PN/2 High Feature.
2. How many PROFINET ports does IM 155-6PN/2 High Feature provide?
It provides 2 ports.
3. What capacity does the module support for connected modules?
It supports max. 64 I/O modules and 16 ET 200AL modules.
4. Does the module support redundancy and hot swap?
Yes—S2 redundancy and multi-hotswap are supported.
5. What is the specified isochronous mode timing value?
The specified value is 0.25 ms.
6. Is PN strain relief included or optional?
PN strain relief is optional.
