Product information

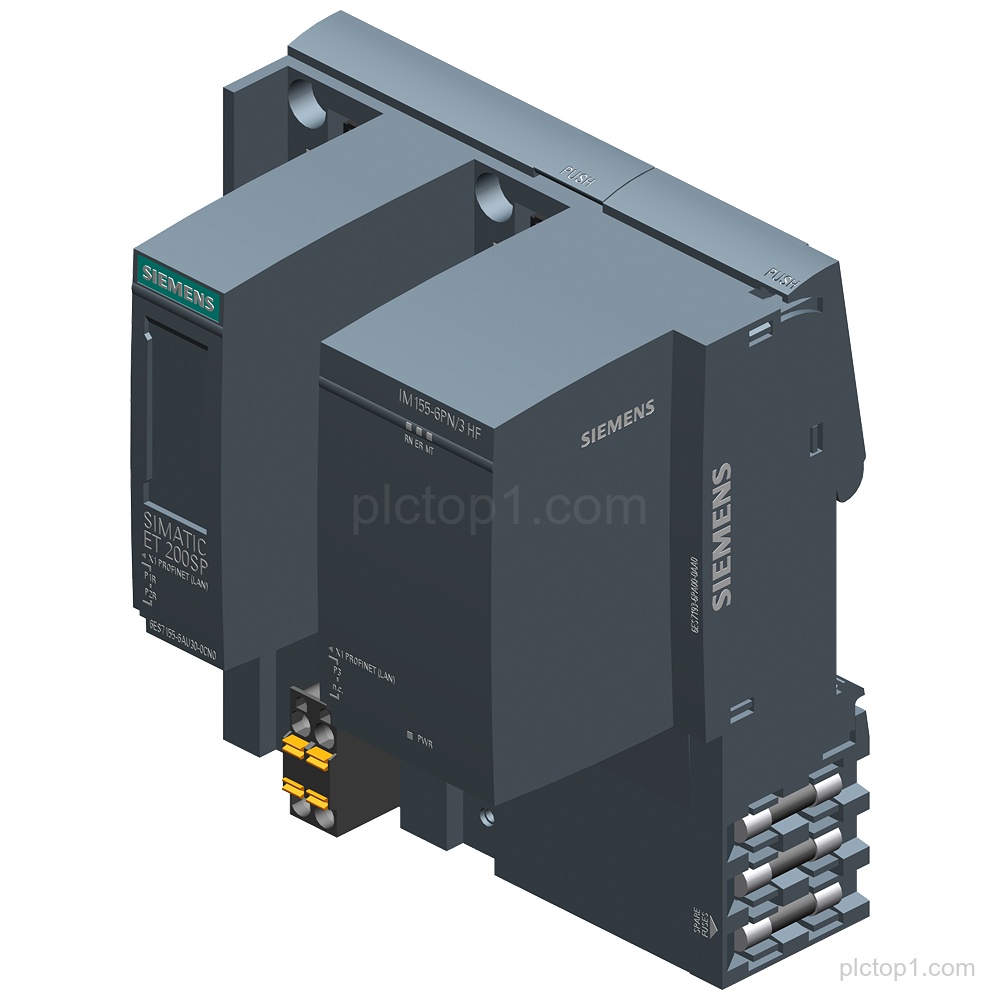

SIMATIC ET 200SP PROFINET 3-port interface module IM 155-6PN/3 High Feature (Part Number: 6ES7155-6AU30-0CN0) provides a PROFINET interface with support for S2 redundancy, multi-hotswap, and isochronous mode, including server module.
Detailed Parameters
Product family:SIMATIC ET 200SP
Interface:PROFINET
Module type / designations:3-port interface module, IM 155-6PN/3 High Feature
Ports:3-port
Slots for BusAdapter:2
Maximum I/O modules:64
Maximum ET 200AL modules:16 ET 200AL modules
Redundancy:S2 redundancy
Hotswap:multi-hotswap
Time specification:0.25 ms
Mode:isochronous mode
PN strain relief:optional PN strain relief
Included:including server module
Engineering Context
The IM 155-6PN/3 High Feature is a SIMATIC ET 200SP PROFINET 3-port interface module intended for system configurations requiring PROFINET connectivity.
The module is specified for use with up to 64 I/O modules and 16 ET 200AL modules and provides 2 slots for BusAdapter.
The module supports S2 redundancy, multi-hotswap, and isochronous mode.
FAQ
1. What module designation and port configuration does 6ES7155-6AU30-0CN0 provide?
It is specified as a PROFINET 3-port interface module with IM 155-6PN/3 High Feature.
2. How many BusAdapter slots are available on this module?
The module provides 2 slots for BusAdapter.
3. What is the maximum number of I/O modules supported?
The module is specified for up to 64 I/O modules.
4. What is the maximum number of ET 200AL modules supported?
The module is specified for up to 16 ET 200AL modules.
5. What redundancy and hot-swap features are specified for this module?
It supports S2 redundancy and is specified as multi-hotswap.
6. Which mode and time specification are stated for this module?
It is specified with isochronous mode and 0.25 ms.
7. Is an additional PN strain relief mentioned for this module?
An optional PN strain relief is mentioned for this module.
