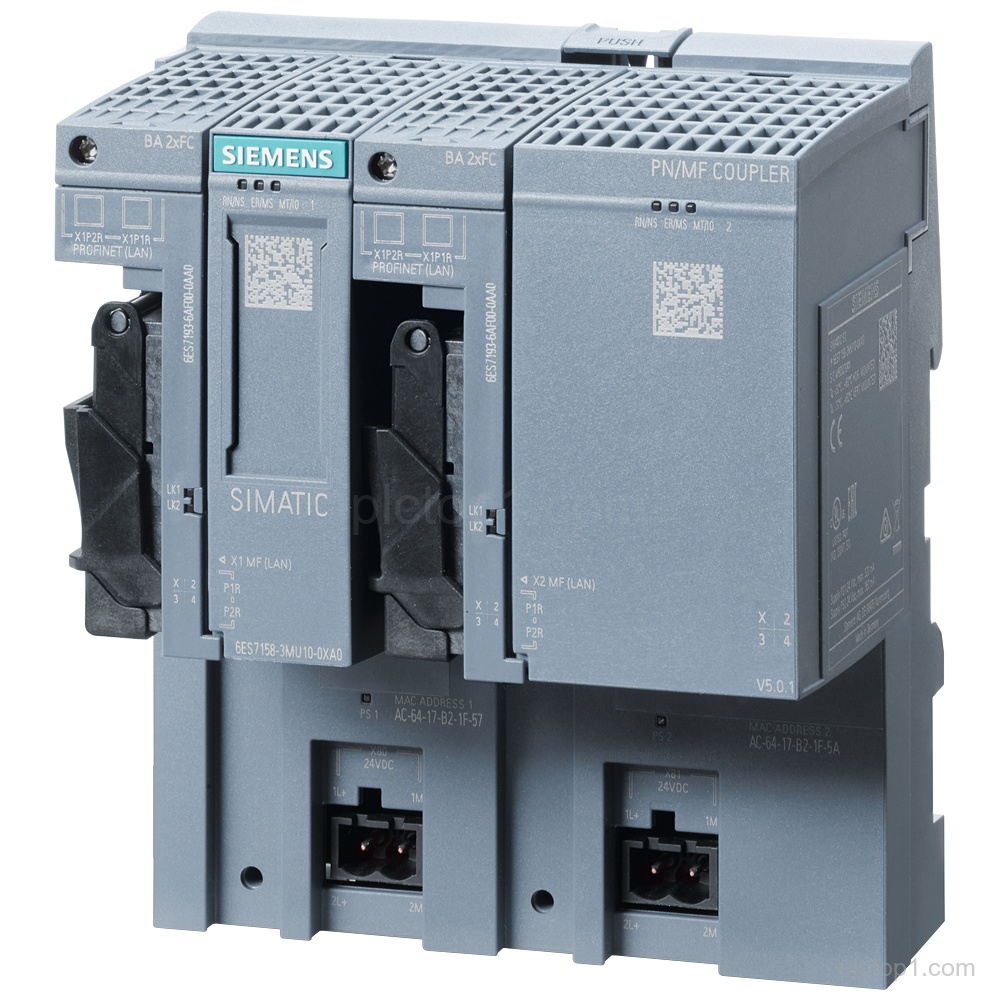

SIMATIC PN/MF coupler multi-fieldbus coupler (PN IO) for deterministic data exchange between max. 1 controller per side, part number 6ES7158-3MU10-0XA0.
Detailed Parameters
Product family:SIMATIC PN/MF coupler
Designation:multi-fieldbus coupler
System interface:PN IO
Fieldbus:EtherNet/IP
Deterministic data exchange:Yes
Max. controllers per side:1
Current infeed:redundant current infeed
Ethernet connection:via SIMATIC BusAdapter (BA)
Scope of supply:supplied without BusAdapter
Engineering Context
Designed for deterministic data exchange between max. 1 controller per side.
Supports redundant current infeed.
Provides the Ethernet connection via SIMATIC BusAdapter (BA), supplied without BusAdapter.
FAQ
1. What is the product family and designation of 6ES7158-3MU10-0XA0?
The product belongs to the SIMATIC PN/MF coupler family and is a multi-fieldbus coupler.
2. Which system interface and fieldbus are supported?
It is designed for PN IO using EtherNet/IP.
3. What is the maximum number of controllers per side for deterministic data exchange?
Deterministic data exchange is specified between max. 1 controller per side.
4. How is the Ethernet connection established?
The Ethernet connection is via SIMATIC BusAdapter (BA).
5. Is the SIMATIC BusAdapter included in the scope of supply?
No, it is supplied without BusAdapter.
6. Does the coupler support redundant current infeed?
Yes, it provides redundant current infeed.
