Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

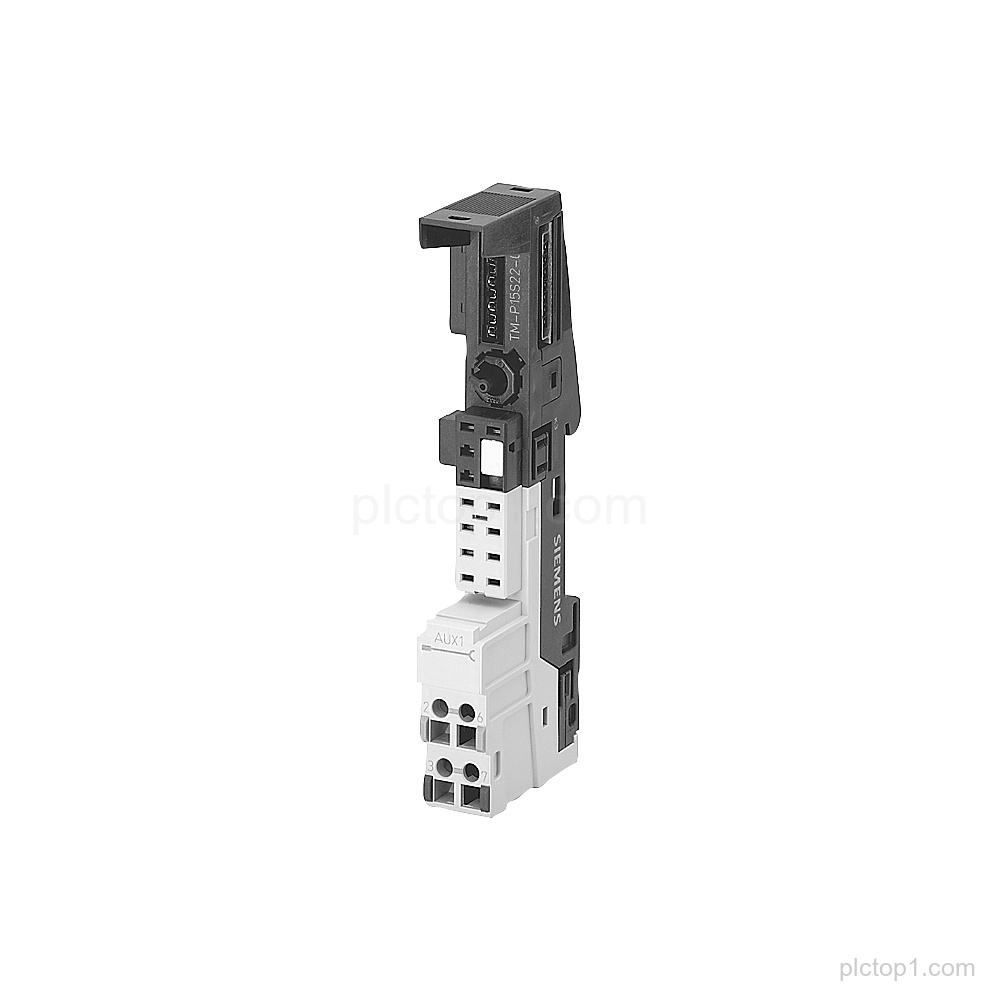

SIMATIC DP TM-P15C22-01 terminal module for ET 200S power modules; part number 6ES7193-4CE10-0AA0.
Detailed Parameters
Spare part:Yes
Product family:SIMATIC DP
Module designation:TM-P15C22-01
For system:ET 200S
Application context:for power modules
Width:15 mm
Terminal type:spring-type terminals (Cage Clamp)
Terminal connections:2×2
AUX1:without terminal access to AUX1
AUX1 continuous:AUX1 continuous
Engineering Context
TM-P15C22-01 is specified as a spare part within SIMATIC DP for ET 200S power modules.
The module provides spring-type terminals (Cage Clamp) with 15 mm width and 2×2 terminal connections.
The terminal configuration is specified as without terminal access to AUX1 while AUX1 continuous is indicated.
FAQ
1. What is the module designation for part 6ES7193-4CE10-0AA0?
The module designation is TM-P15C22-01.
2. For which system is TM-P15C22-01 specified?
It is specified for ET 200S.
3. What is TM-P15C22-01 intended for on ET 200S?
It is intended for power modules.
4. What terminal type and width are specified?
It uses spring-type terminals (Cage Clamp) and has a 15 mm width.
5. How many terminal connections are provided?
It provides 2×2 terminal connections.
6. Does the module provide terminal access to AUX1?
No, it is specified as without terminal access to AUX1, with AUX1 continuous indicated.
