Product information

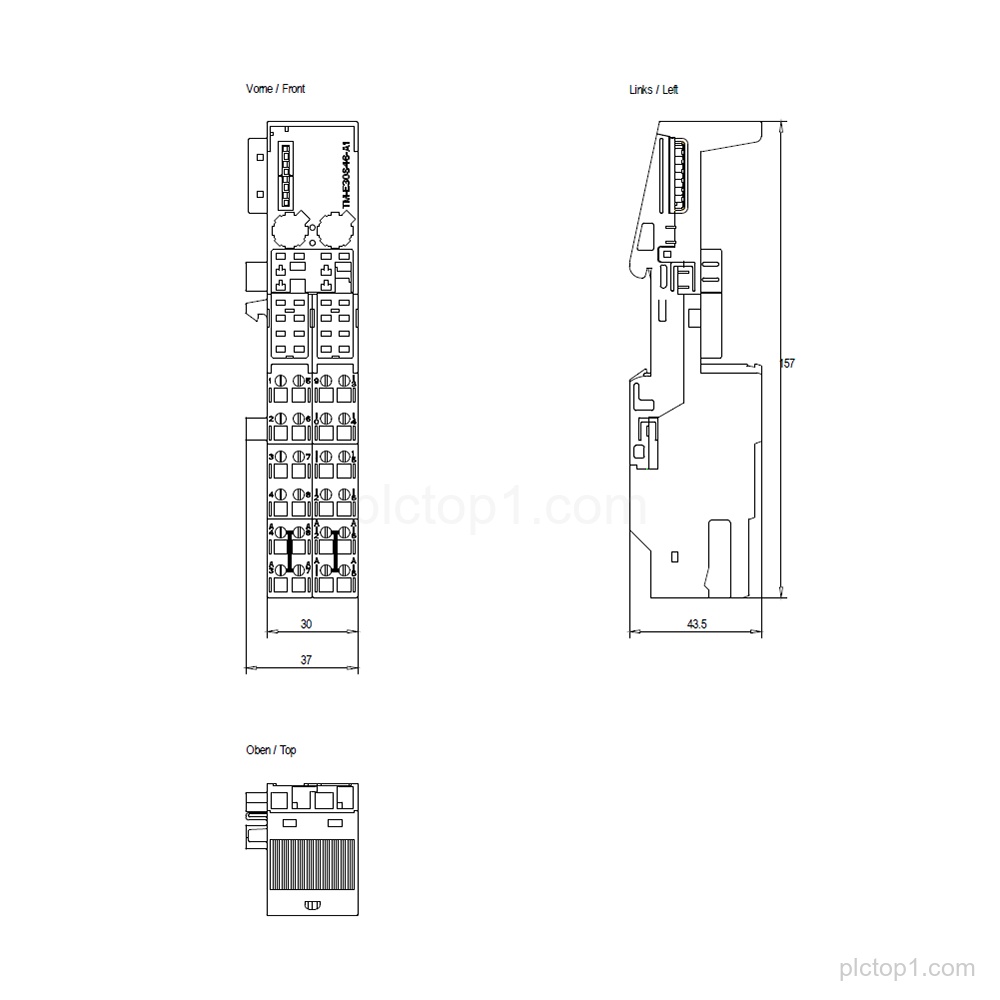

SIMATIC DP terminal module TM-E30S46-A1 for ET 200S is provided as spare part under part number 6ES7193-4CF40-0AA0.
Detailed Parameters
Product type:Spare part
System:SIMATIC DP
Terminal module:TM-E30S46-A1
Application interface:for ET 200S
For electronic modules (overall width):30 mm
Connection type:Screw terminals
Terminal connections:4x 6 terminal connections
Terminal access to AUX1:Terminal access to AUX1
AUX1:AUX1 continuous
Engineering Context
The TM-E30S46-A1 terminal module supports ET 200S electronic modules with a 30 mm overall width.
The terminal module provides screw terminals with 4x 6 terminal connections.
Terminal access to AUX1 is available with AUX1 continuous.
FAQ
1. What system is the spare part assigned to?
It is assigned to SIMATIC DP.
2. Which terminal module designation is provided?
TM-E30S46-A1.
3. For which ET 200S configuration is the terminal module intended?
For ET 200S.
4. What is the overall width of the electronic modules supported?
30 mm overall width.
5. What connection type does the terminal module use?
Screw terminals.
6. How many terminal connections are provided and how is AUX1 made available?
It provides 4x 6 terminal connections with terminal access to AUX1 (AUX1 continuous).
