Product information

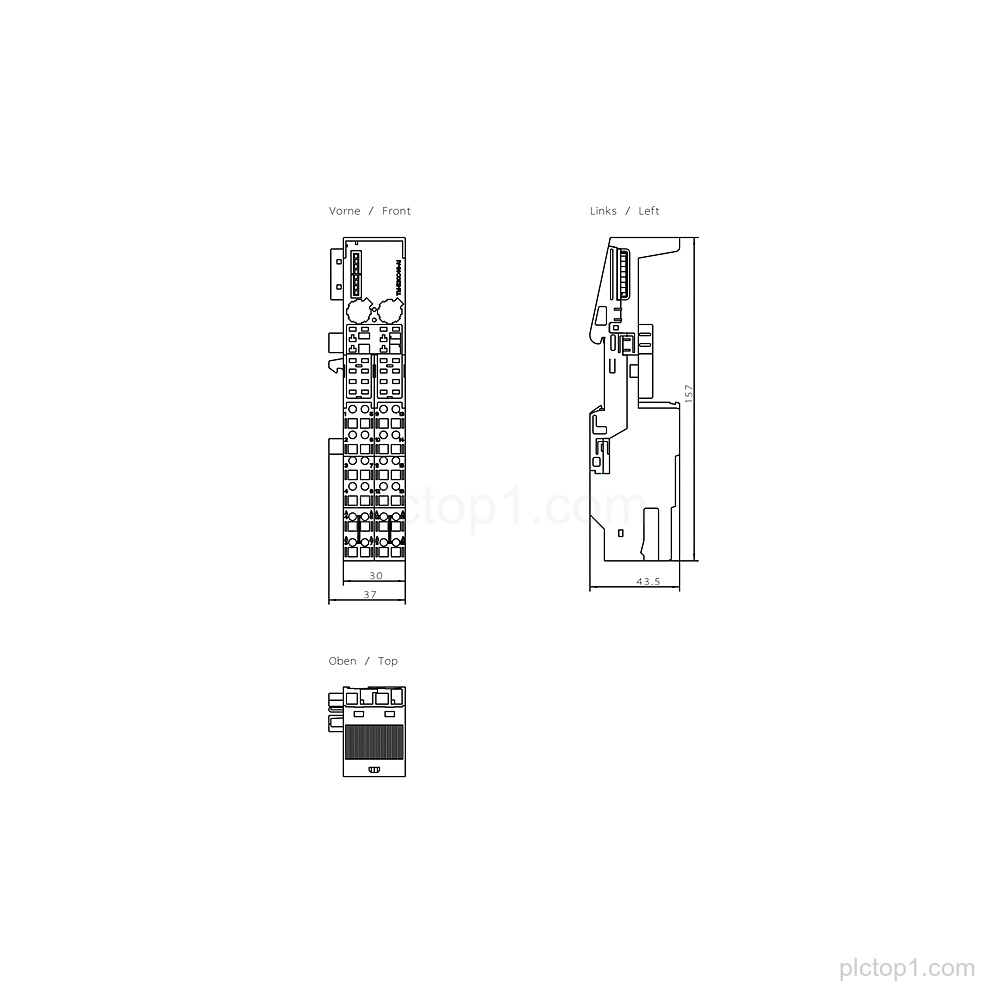

Terminal module TM-E30C46-A1 for ET 200S (SIMATIC DP) is provided under part number 6ES7193-4CF50-0AA0 for electronic modules 30 mm overall width.
Detailed Parameters
Product type:Terminal module
Product family:SIMATIC DP
Device:ET 200S
Spare part:Yes
Designation:TM-E30C46-A1
Overall width:30 mm
Terminal type:spring-type terminals
Number of terminal connections:4x 6
Terminal access:AUX1
AUX1 access:AUX1 continuous
Engineering Context
The TM-E30C46-A1 terminal module is provided as a spare part for SIMATIC DP ET 200S for electronic modules with 30 mm overall width.
Spring-type terminals and terminal access to AUX1 are configured via 4x 6 terminal connections.
AUX1 is available with continuous access as stated for the TM-E30C46-A1 terminal module.
FAQ
1. What is the product type for 6ES7193-4CF50-0AA0?
6ES7193-4CF50-0AA0 is a terminal module (TM-E30C46-A1).
2. Which Siemens system is this terminal module for?
It is intended for ET 200S in the SIMATIC DP product family.
3. What overall width is supported for electronic modules?
The terminal module is for electronic modules with 30 mm overall width.
4. What terminal type does TM-E30C46-A1 use?
TM-E30C46-A1 uses spring-type terminals.
5. How many terminal connections are provided?
It provides 4x 6 terminal connections.
6. Is there terminal access to AUX1?
Yes. It includes terminal access to AUX1 with AUX1 continuous.
