SIMATIC DP terminal module TM-E30S44-01 for ET 200S (spare part), part number 6ES7193-4CG20-0AA0, with 4x 4 terminal connections and screw terminals.
Detailed Parameters
Product type:Spare part
System:SIMATIC DP
Terminal module:TM-E30S44-01
For:ET 200S

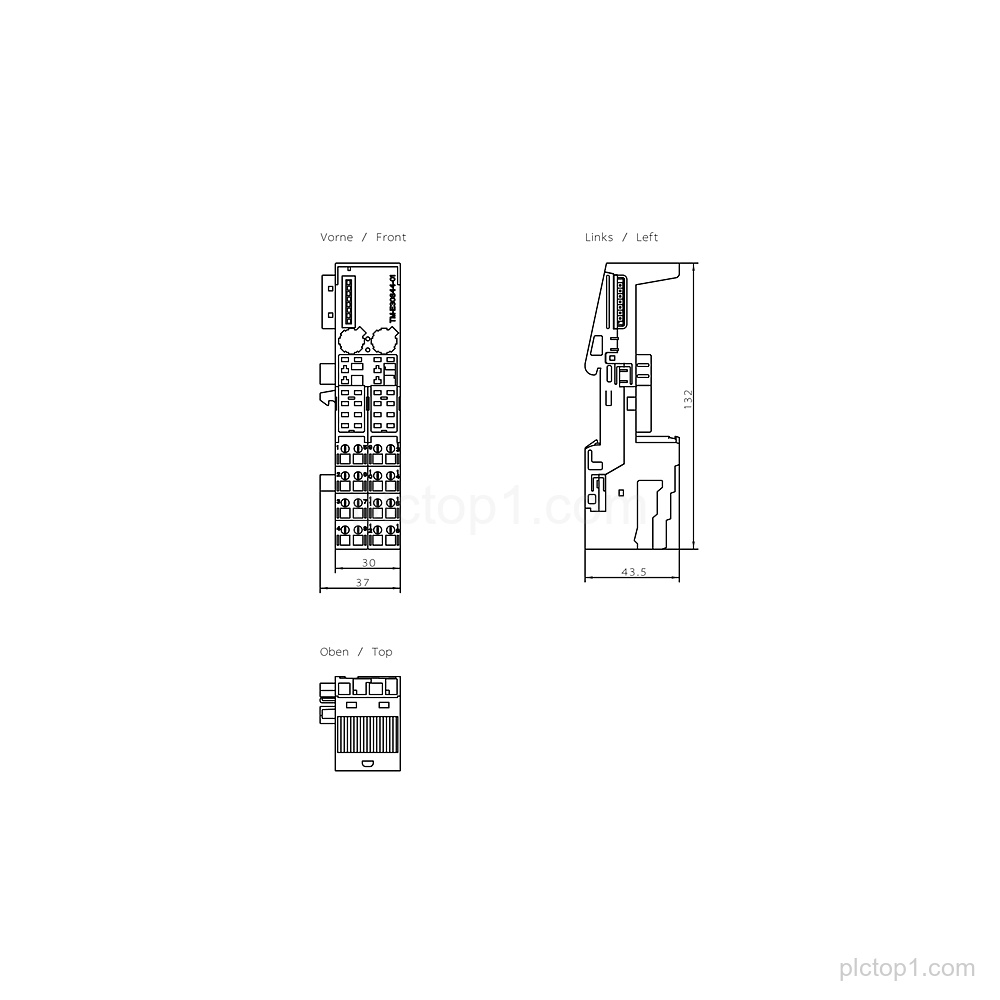

Overall width:30 mm
Terminal connection type:Screw terminals
Terminal connections:4x 4 terminal connections
AUX1 access:without terminal access to AUX1
AUX1 continuous:AUX1 continuous
Engineering Context
Use the SIMATIC DP terminal module TM-E30S44-01 for ET 200S spare part replacement in systems with electronic modules of 30 mm overall width.
The module provides screw terminal connection for 4x 4 terminal connections configuration.
AUX1 is available as AUX1 continuous while the module is specified as without terminal access to AUX1.
FAQ
1. Is 6ES7193-4CG20-0AA0 a spare part?
Yes. It is specified as a spare part.
2. Which terminal module designation is associated with part number 6ES7193-4CG20-0AA0?
TM-E30S44-01.
3. For which system is TM-E30S44-01 provided?
ET 200S.
4. What is the overall width of the electronic modules supported by this terminal module?
30 mm overall width.
5. How are the terminals connected?
Screw terminals.
6. How many terminal connections does the module provide?
4x 4 terminal connections.
7. Does the module provide terminal access to AUX1?
No, it is specified as without terminal access to AUX1.
