Product information

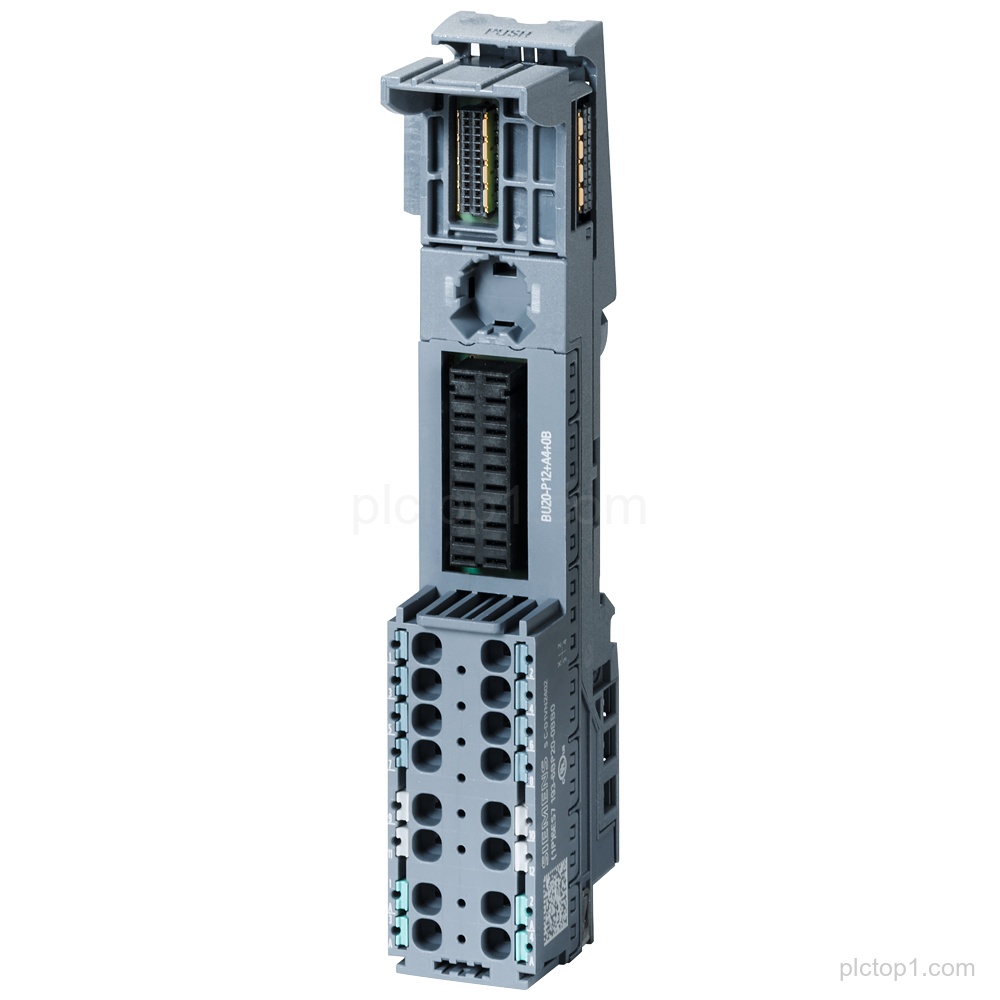

SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B (part number 6ES7193-6BP20-0BB0) provides a BU type B0 base unit with push-in terminals and 4 AUX terminals bridged to the left.
Detailed Parameters
Product family:SIMATIC ET 200SP
BaseUnit:BU20-P12+A4+0B
BU type:B0
Terminals:Push-in terminals
AUX terminals:4 AUX terminals
AUX terminal bridging:Bridged to the left
Dimensions (WxH):20 mm x 117 mm
Part number:6ES7193-6BP20-0BB0
Engineering Context
Use SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B (6ES7193-6BP20-0BB0) for a BU type B0 base unit configuration.
The base unit is equipped with push-in terminals and includes 4 AUX terminals bridged to the left.
Select the base unit dimensions as 20 mm x 117 mm for the intended mounting arrangement.
FAQ
1. What product family and base unit designation does 6ES7193-6BP20-0BB0 belong to?
6ES7193-6BP20-0BB0 is a SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B.
2. Which terminal type is used on this BaseUnit?
It uses push-in terminals.
3. How many AUX terminals are included and how are they bridged?
It has 4 AUX terminals, bridged to the left.
4. What BU type is specified for this BaseUnit?
The BU type is B0.
5. What are the stated dimensions (WxH) for this BaseUnit?
The stated dimensions are WxH: 20 mm x 117 mm.
