Product information

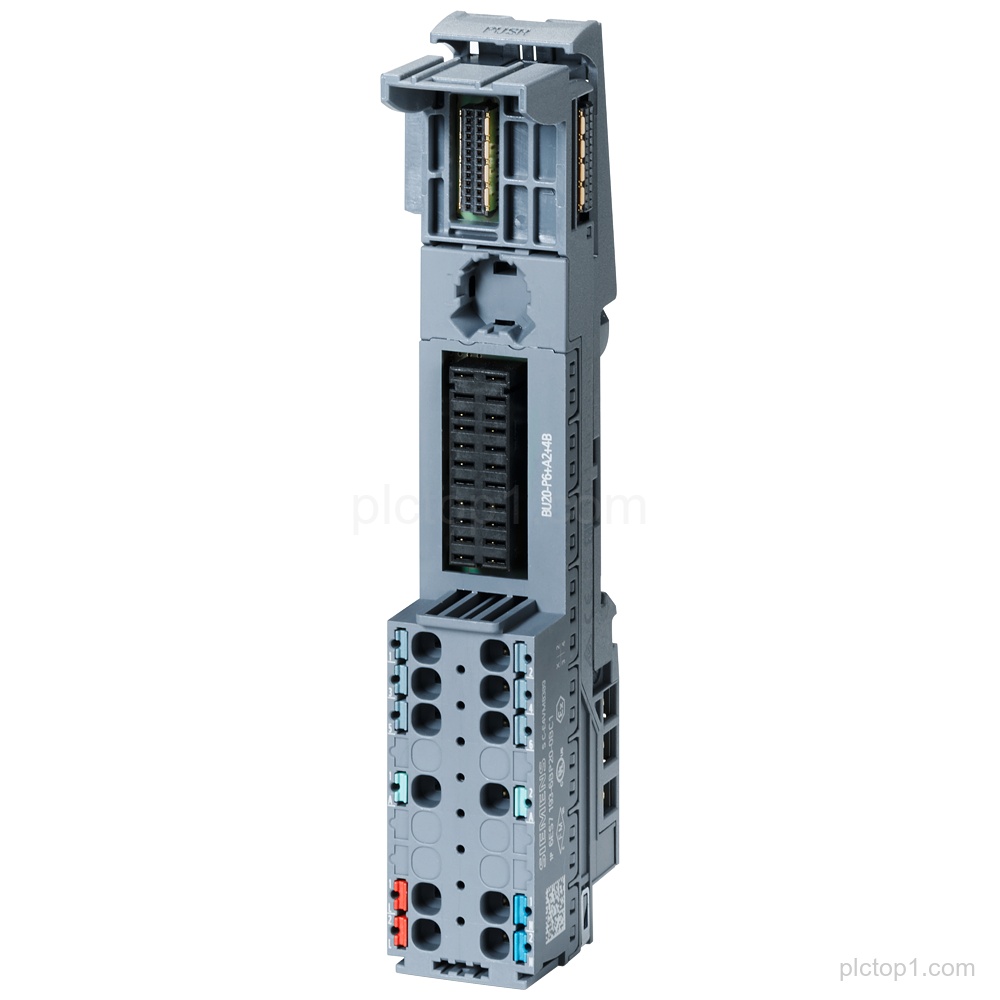

SIMATIC ET 200SP BaseUnit Type C1, part number 6ES7193-6BP20-0BC1, BU20-P6+A2+4B with push-in terminals and 2 AUX terminals bridged to the left.
Detailed Parameters
Product family:SIMATIC ET 200SP
BaseUnit type:C1
BaseUnit configuration:BU20-P6+A2+4B BU type C1
Terminal type:Push-in terminals
AUX terminals:2 AUX terminals
AUX terminal bridging:Bridged to the left
Dimensions (W x H):20 mm x 117 mm
Engineering Context
Use SIMATIC ET 200SP BaseUnit Type C1 configured as BU20-P6+A2+4B.
The base unit is equipped with push-in terminals and includes 2 AUX terminals bridged to the left.
The specified form factor for the base unit is 20 mm x 117 mm (W x H).
FAQ
1. Which product family and base unit type does 6ES7193-6BP20-0BC1 belong to?
It belongs to SIMATIC ET 200SP and is a BaseUnit Type C1.
2. What terminal type is used on this BaseUnit Type C1?
It uses push-in terminals.
3. How many AUX terminals does this base unit include and how are they bridged?
It has 2 AUX terminals, bridged to the left.
4. What is the base unit configuration designation?
The configuration is BU20-P6+A2+4B BU type C1.
5. What are the dimensions (W x H) of the base unit?
The dimensions are 20 mm x 117 mm.
