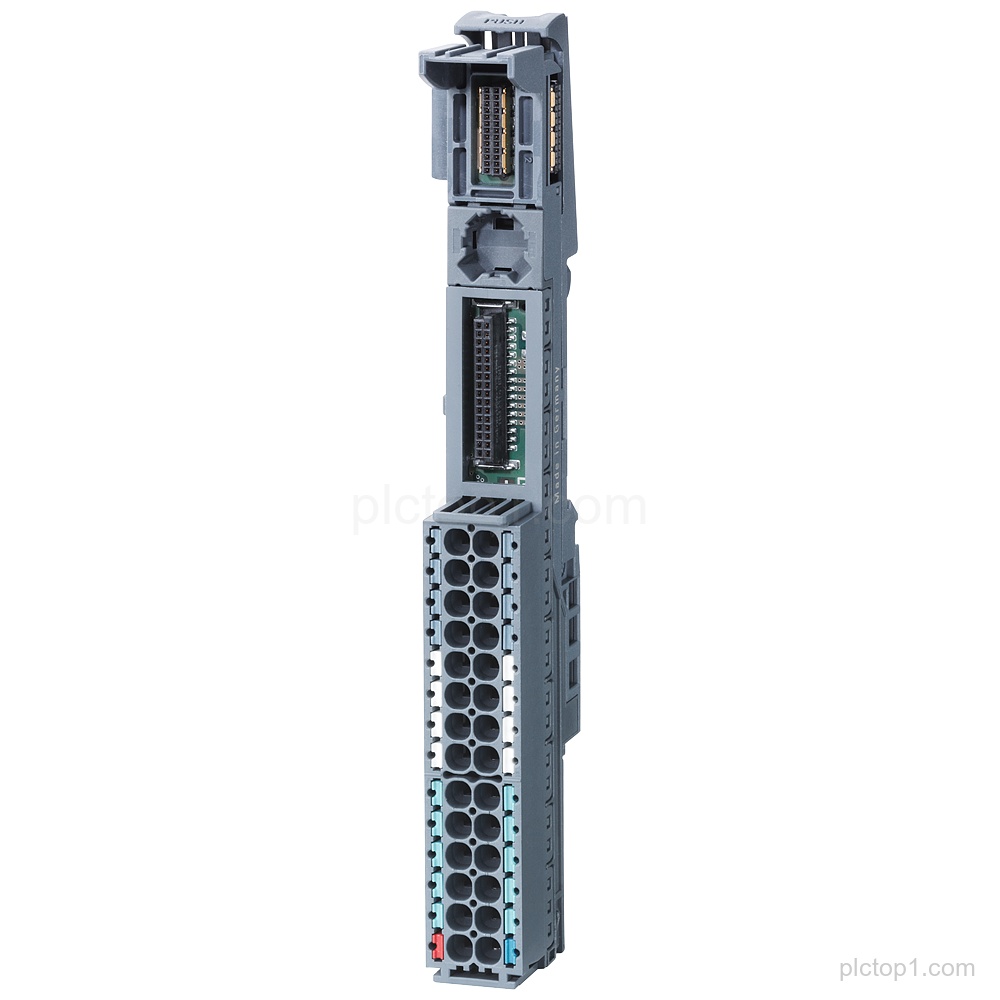

SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T (Part number: 6ES7193-6BP40-0BA1) provides temperature acquisition and includes push-in terminals with 2x 5 add-on terminals bridged to the left.
Detailed Parameters
Part number:6ES7193-6BP40-0BA1
Product family:SIMATIC ET 200SP
BaseUnit designation:BU15-P16+A0+12B/T
BaseUnit type:BU type A1
Terminal type:Push-in terminals
Add-on terminals:2x 5 add-on terminals
Add-on terminal bridging:Bridged to the left
Dimensions (W x H):15 mm x 141 mm
Temperature acquisition:With temperature acquisition
Engineering Context
The SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T supports temperature acquisition for the configured ET 200SP system.
The BaseUnit uses push-in terminals and supports 2x 5 add-on terminals bridged to the left.
The provided dimensions for this base unit are WxH: 15 mm x 141 mm.
FAQ
1. What is the part number for the SIMATIC ET 200SP base unit with temperature acquisition?
The part number is 6ES7193-6BP40-0BA1.
2. Which SIMATIC ET 200SP BaseUnit designation is included in this delivery?
The BaseUnit designation is BU15-P16+A0+12B/T.
3. What terminal type does the BaseUnit use?
It uses push-in terminals.
4. How many add-on terminals are included, and how are they bridged?
It includes 2x 5 add-on terminals bridged to the left.
5. What are the given dimensions (W x H) for this BaseUnit?
The dimensions are WxH: 15 mm x 141 mm.
