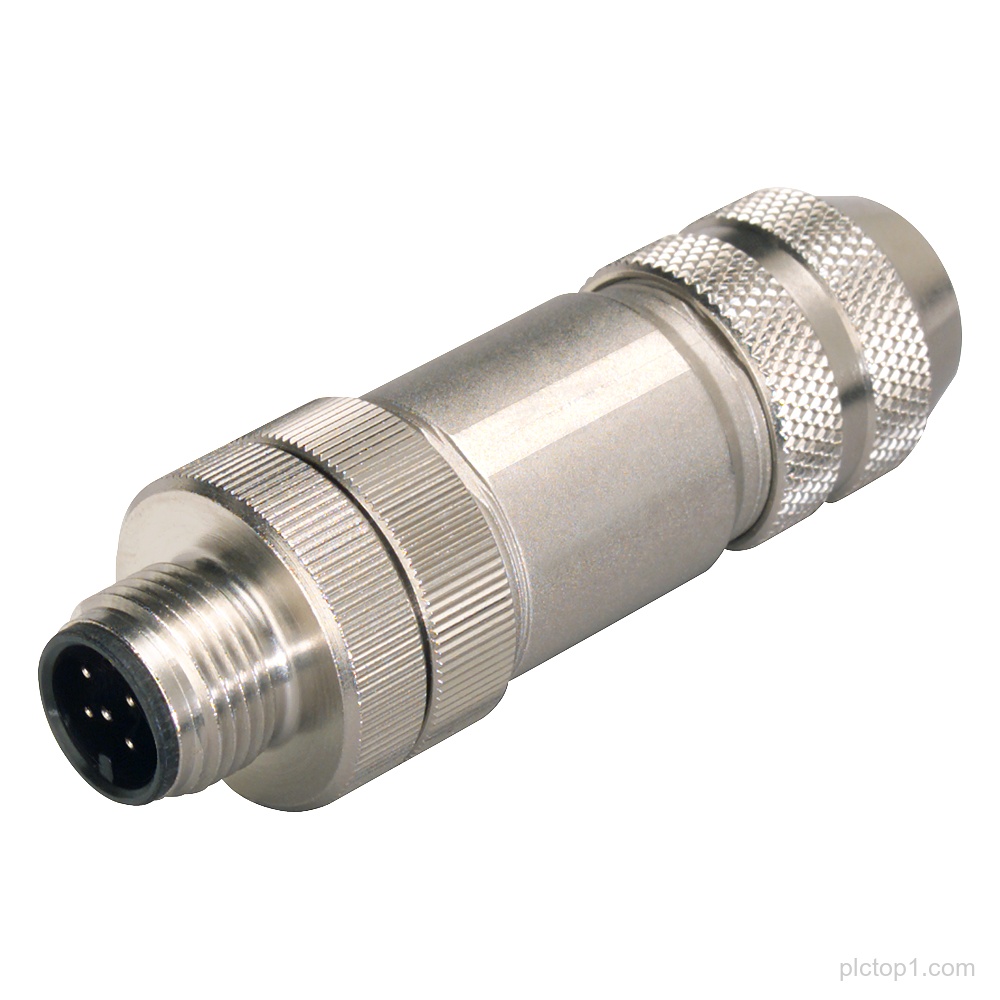

SIMATIC DP M12 compensation plugs with integrated Pt1000 (Part number: 6ES7194-4AB00-0AA0) for reference junction compensation when connecting thermocouples.
Detailed Parameters
Product family:SIMATIC DP
Type:M12 compensation plug
Integrated element:Pt1000
Function:Reference junction compensation
When connecting:Thermocouples
Engineering Context
Use the SIMATIC DP M12 compensation plug with integrated Pt1000 to provide reference junction compensation for thermocouple connection.
The integrated Pt1000 supports reference junction compensation in the thermocouple connection setup.
Select this SIMATIC DP compensation plug when thermocouples require reference junction compensation.
FAQ
1. What is the SIMATIC DP product type for part 6ES7194-4AB00-0AA0?
It is an M12 compensation plug.
2. What integrated element does 6ES7194-4AB00-0AA0 include?
It includes an integrated Pt1000.
3. What is the purpose of the integrated Pt1000 for thermocouples?
It is used for reference junction compensation when connecting thermocouples.
4. For which sensor type is the compensation plug described in the product information?
Thermocouples.
