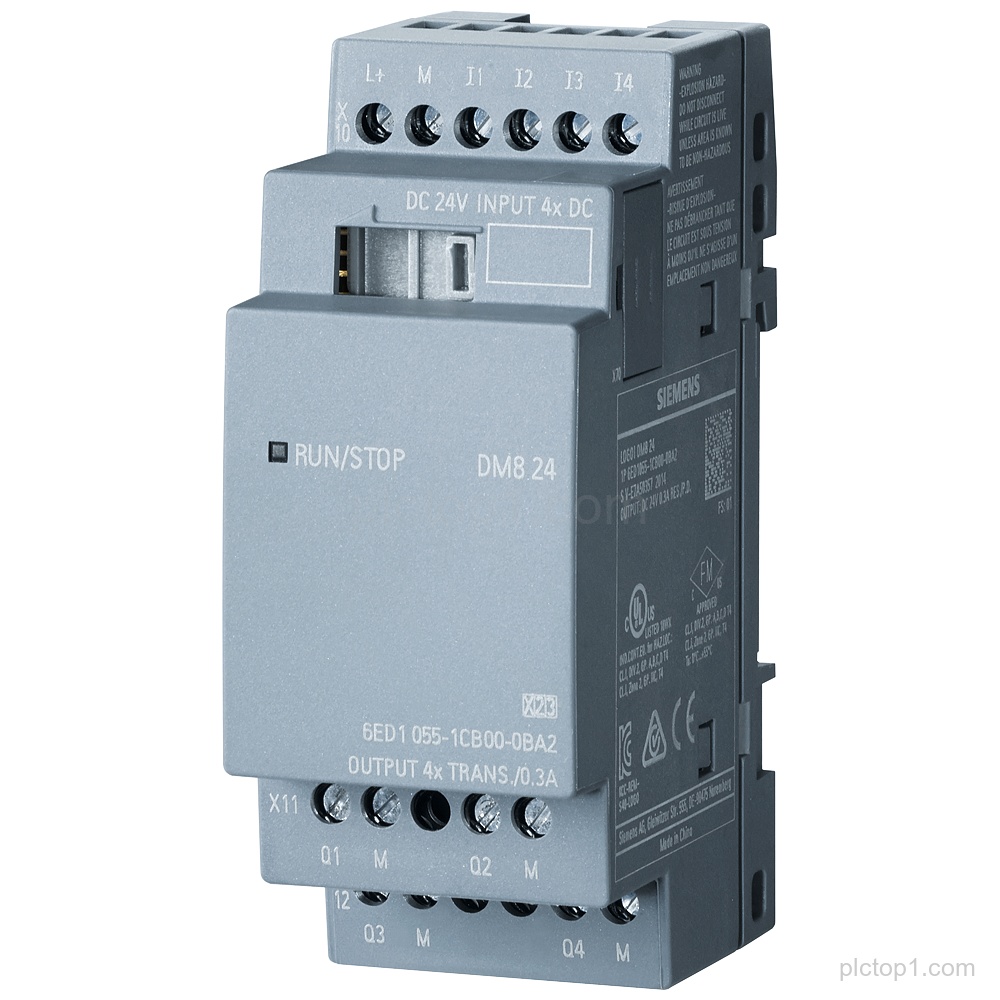

LOGO! DM8 24 expansion module for LOGO! 8. Part number 6ED1055-1CB00-0BA2 provides 4 digital inputs and 4 digital outputs with PS/I/O 24V/24V/trans.
Detailed Parameters
Product family:LOGO! DM8 24
Module type:expansion module
PS/I/O:24V/24V/trans.
Digital inputs:4 DI
Digital outputs:4 DO
For:LOGO! 8
Engineering Context
The LOGO! DM8 24 expansion module extends LOGO! 8 with digital I/O.
With PS/I/O 24V/24V/trans., the module supports 4 DI and 4 DO channels.
Use this expansion module configuration to match the LOGO! 8 system with 24V digital input/output requirements as specified.
FAQ
1. What is the function of 6ED1055-1CB00-0BA2?
It is a LOGO! DM8 24 expansion module providing 4 DI and 4 DO for LOGO! 8.
2. How many digital input and output channels does the module provide?
The module provides 4 DI and 4 DO.
3. What is the PS/I/O setting for the module?
The PS/I/O is 24V/24V/trans.
4. Which system is the module intended for?
The module is for LOGO! 8.
