Product information

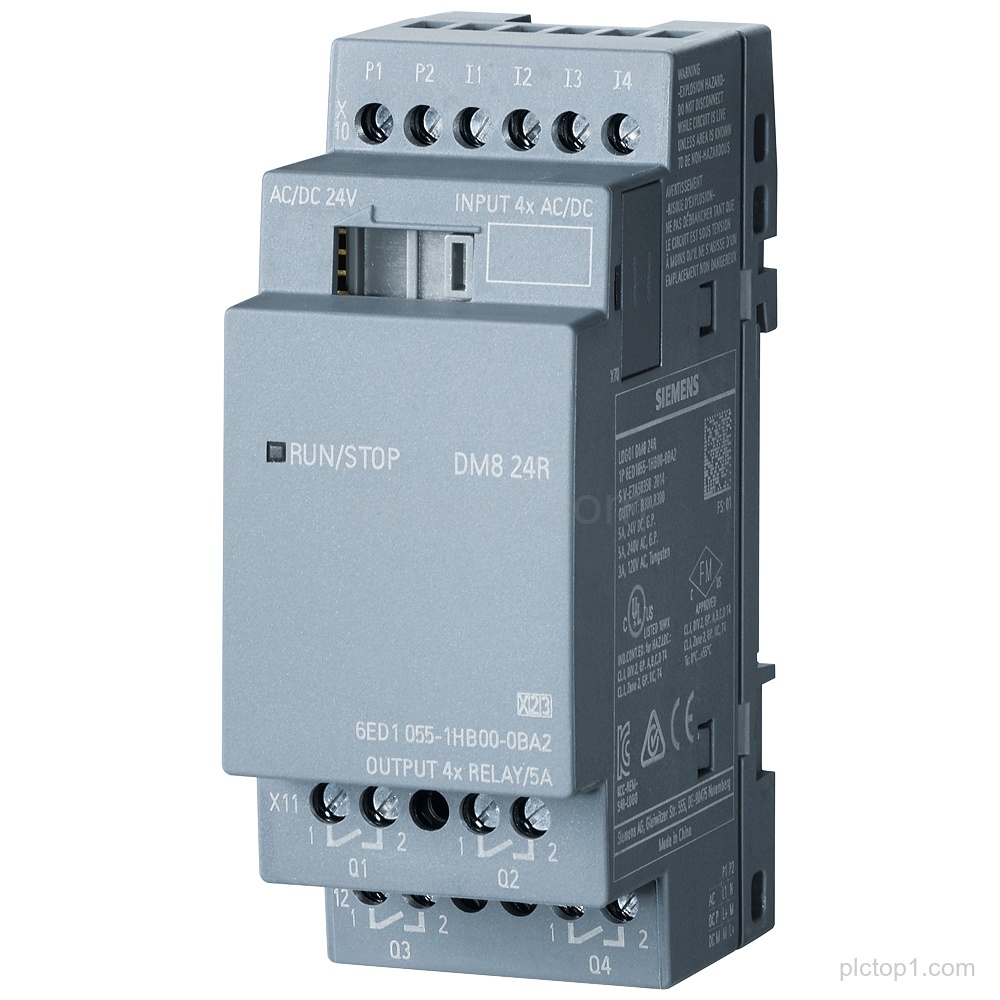

LOGO! DM8 24R expansion module for part number 6ED1055-1HB00-0BA2 with PS/I/O 24V/24V/relay and AC/DC/NPN input for LOGO! 8.
Detailed Parameters
Product family:LOGO! DM8 24R
Part number:6ED1055-1HB00-0BA2
Module type:expansion module
PS/I/O:24V/24V/relay
I/O channels:4 DI/4 DO
Input type:AC/DC/NPN
For system:LOGO! 8
Designation:2 MW
Engineering Context
The LOGO! DM8 24R expansion module adds 4 DI and 4 DO to a LOGO! 8 configuration.
The module is designed with PS/I/O 24V/24V/relay and supports AC/DC/NPN input signals.
The module designation includes 2 MW for LOGO! DM8 24R.
FAQ
1. What module family and function does 6ED1055-1HB00-0BA2 belong to?
6ED1055-1HB00-0BA2 is a LOGO! DM8 24R expansion module.
2. What is the PS/I/O setting for this module?
The PS/I/O is 24V/24V/relay.
3. How many digital inputs and outputs does the LOGO! DM8 24R provide?
It provides 4 DI and 4 DO.
4. What input signal type is supported for LOGO! 8?
It supports AC/DC/NPN input for LOGO! 8.
5. What system is the module intended for?
It is for LOGO! 8.
