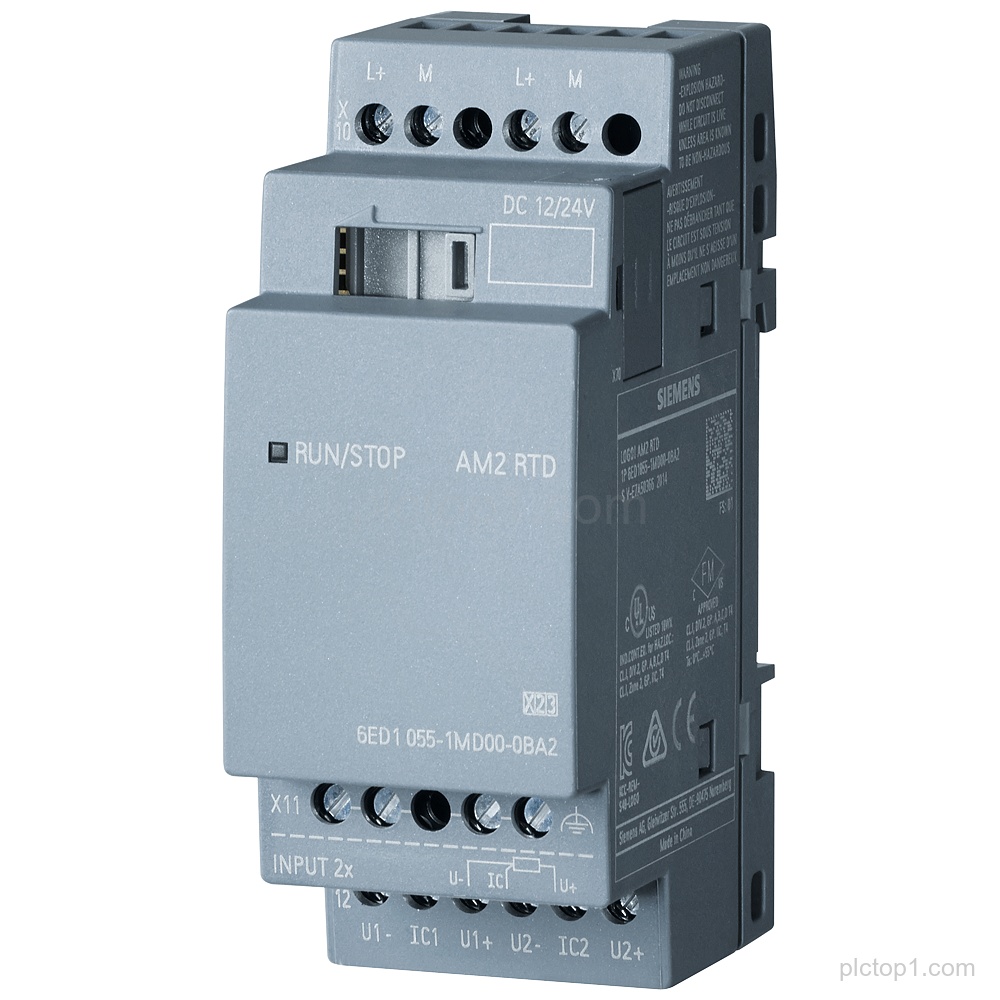

LOGO! AM2 RTD expansion module with part number 6ED1055-1MD00-0BA2 for RTD measuring input operation for LOGO! 8.
Detailed Parameters
Product family:LOGO! AM2
Module type:RTD expansion module
Power supply:12/24 V DC
Input channels:2AI
RTD sensor type:Pt100/1000
Measuring range:50…+200°/C
For:LOGO! 8
Engineering Context
The LOGO! AM2 RTD expansion module provides RTD input capability for LOGO! 8.
With PS: 12/24 V DC, the module is intended for operation within a LOGO! 8 system using the specified power supply.
The module supports 2AI inputs for Pt100/1000 sensors over the stated temperature range.
FAQ
1. What is the function of the 6ED1055-1MD00-0BA2?
It is a LOGO! AM2 RTD expansion module.
2. What power supply does this module require?
PS: 12/24 V DC.
3. How many analog inputs are provided by this RTD expansion module?
2AI.
4. Which RTD sensor types are supported?
Pt100/1000.
5. What temperature measuring range is specified?
50…+200°/C.
6. For which LOGO! system is this expansion module intended?
LOGO! 8.
