Product information

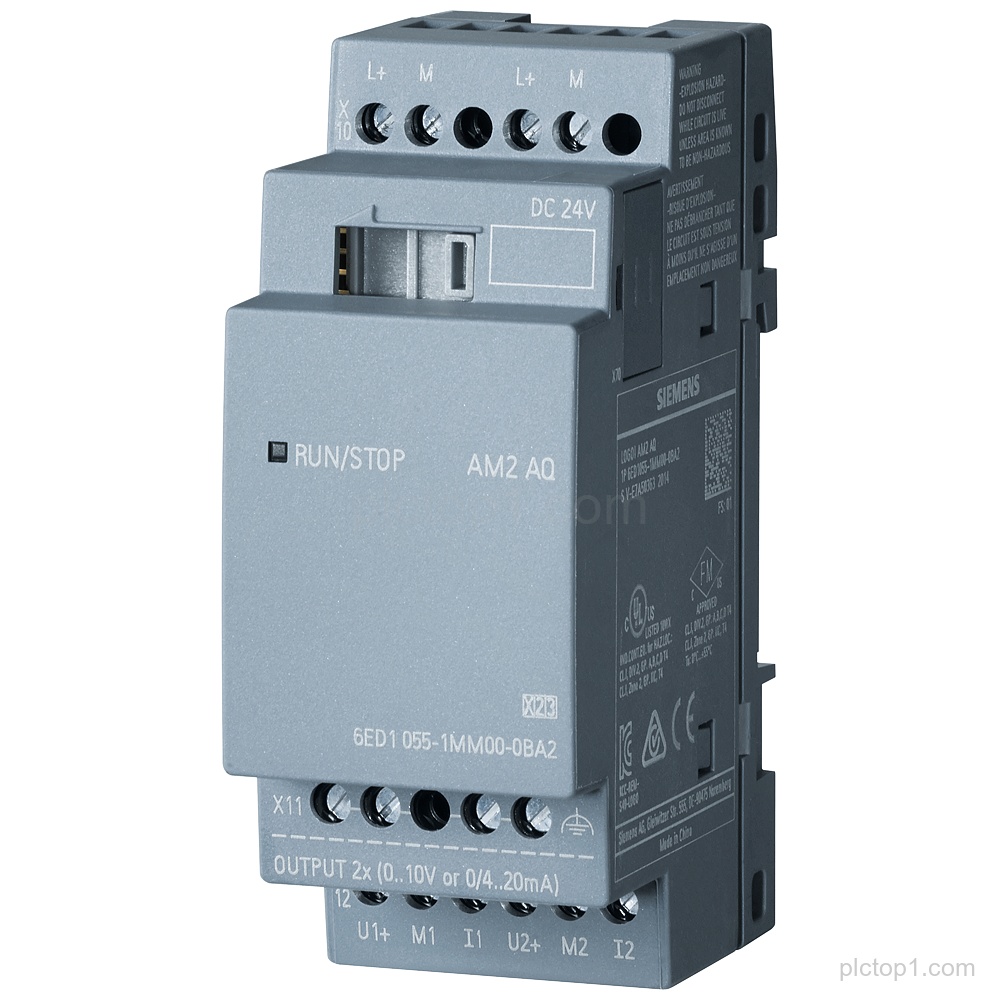

LOGO! AM2 AQ expansion module for LOGO! 8 with part number 6ED1055-1MM00-0BA2, featuring PS: 24 V DC analog outputs (2 AO) for 0-10 V and 0/4-20 mA.
Detailed Parameters
Product name:LOGO! AM2 AQ expansion module
Power supply (PS):24 V DC
Output type:AO
Number of outputs:2
Voltage output range:0-10 V
Current output range:0/4-20 mA
For:LOGO! 8
Engineering Context
The LOGO! AM2 AQ expansion module provides analog outputs (2 AO) for LOGO! 8 system configuration.
The module uses PS: 24 V DC and supports output signals in the ranges 0-10 V and 0/4-20 mA.
The expansion module supports both voltage and current analog output signal types for the configured output channels.
FAQ
1. What is the module type for part number 6ED1055-1MM00-0BA2?
LOGO! AM2 AQ expansion module with analog outputs (AO).
2. What is the power supply requirement (PS) for this module?
PS: 24 V DC.
3. How many analog output channels are provided?
2 AO.
4. Which analog output ranges are supported?
0-10 V and 0/4-20 mA.
5. For which LOGO! system is the module specified?
LOGO! 8.
