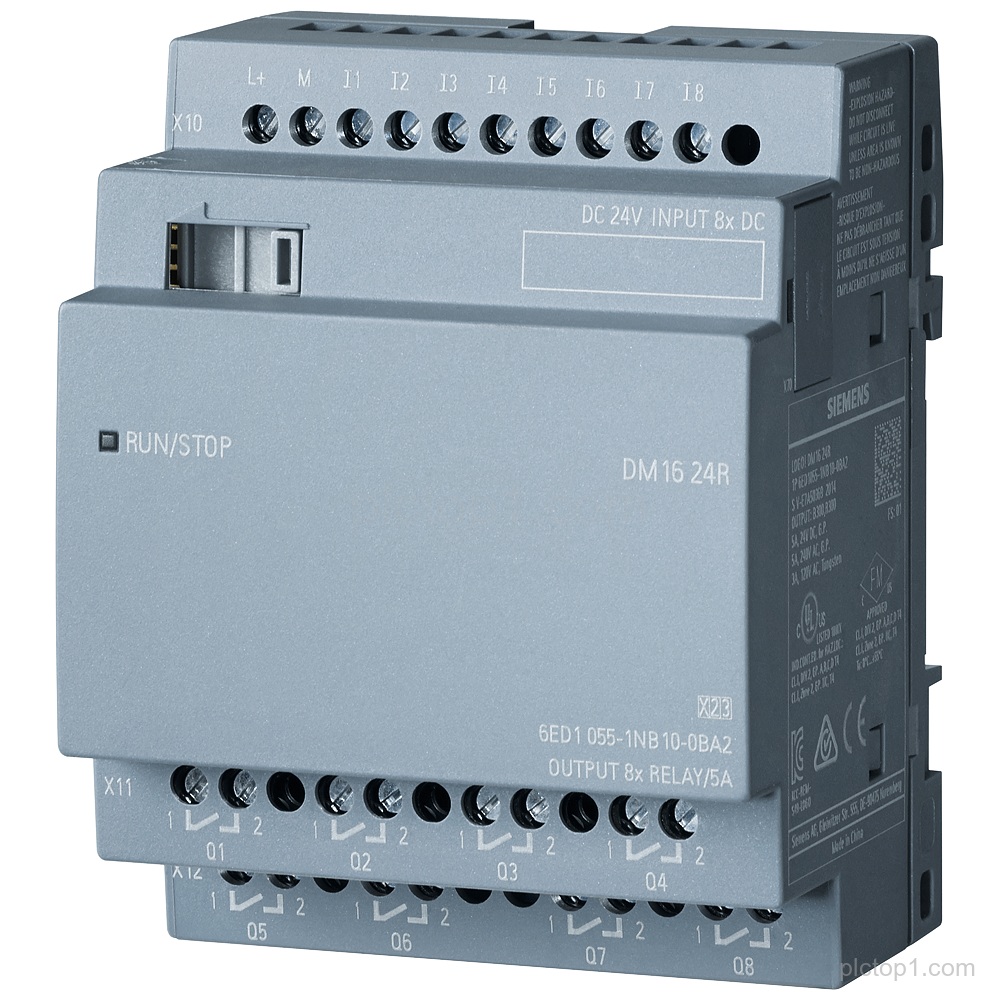

LOGO! DM16 24R expansion module with part number 6ED1055-1NB10-0BA2 for LOGO! 8, providing PS/I/O: 24 V DC/24 V DC/relay and 8 DI/8 DO with 4 MW.
Detailed Parameters
Product designation:LOGO! DM16 24R expansion module
Part number:6ED1055-1NB10-0BA2
PS/I/O:24 V DC/24 V DC/relay
Number of DI:8
Number of DO:8
Power consumption:4 MW for LOGO! 8
Engineering Context
The LOGO! DM16 24R expansion module supports 8 DI and 8 DO configured with relay outputs.
The module specifies PS/I/O as 24 V DC/24 V DC/relay for its interfaces.
The expansion module is listed for use with LOGO! 8 with a stated 4 MW requirement.
FAQ
1. What is the PS/I/O type of the LOGO! DM16 24R expansion module 6ED1055-1NB10-0BA2?
PS/I/O: 24 V DC/24 V DC/relay.
2. How many digital inputs and digital outputs does the LOGO! DM16 24R expansion module provide?
8 DI and 8 DO.
3. For which base system is the LOGO! DM16 24R expansion module specified?
It is specified with 4 MW for LOGO! 8.
