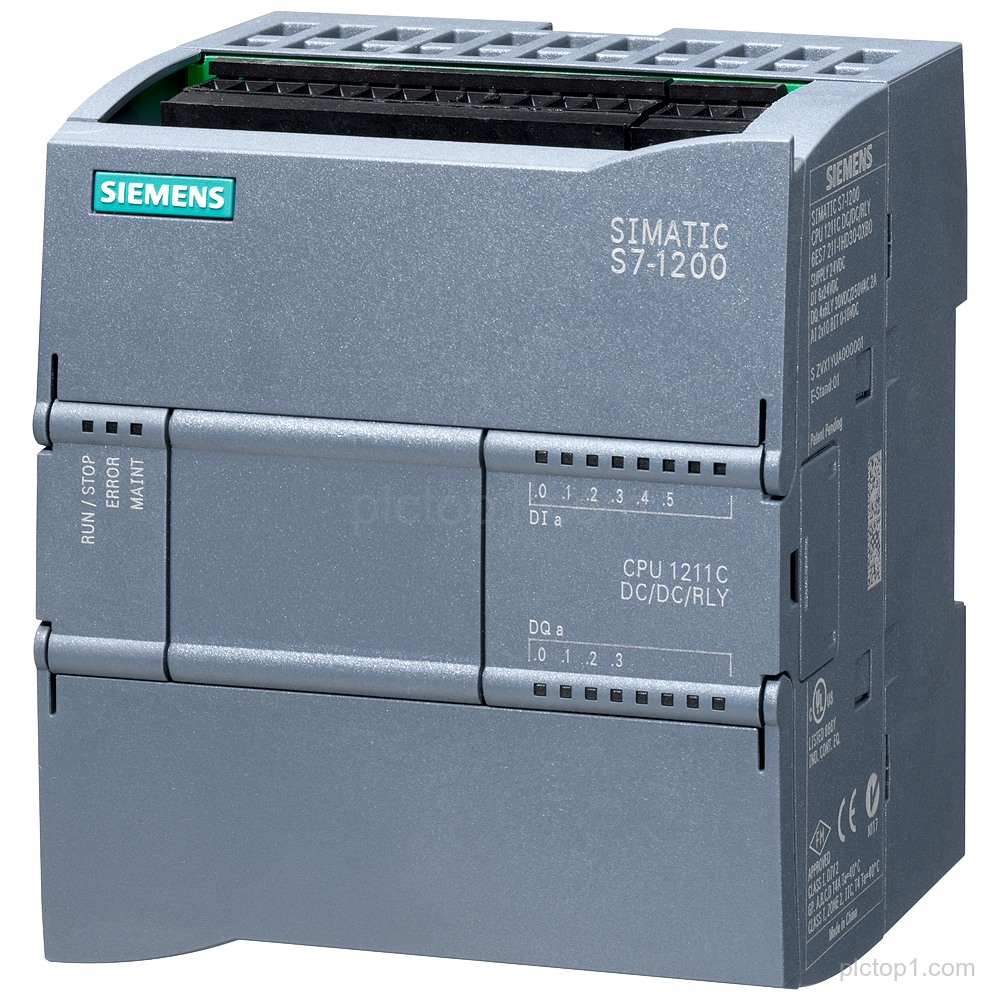

SIMATIC S7-1200 CPU 1211C compact CPU DC/DC/relay (Part number: 6ES7211-1HE40-0XB0) provides onboard I/O and program/data memory as specified.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU type:CPU 1211C
CPU design:compact CPU
Design type:DC/DC/relay
Onboard I/O – digital inputs:6 DI 24 V DC
Onboard I/O – digital outputs:4 DO relay 2 A
Onboard I/O – analog inputs:2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:75 KB
Engineering Context
The CPU 1211C compact CPU DC/DC/relay from SIMATIC S7-1200 provides onboard digital inputs, relay digital outputs, and analog inputs as specified.
The integrated power supply requirement is DC 20.4-28.8 V DC for the CPU.
The provided program/data memory is specified as 75 KB for the CPU.
FAQ
1. Which Siemens product family and CPU designation correspond to part number 6ES7211-1HE40-0XB0?
It is SIMATIC S7-1200, CPU 1211C.
2. What onboard I/O types and quantities are available on CPU 1211C (DC/DC/relay)?
Onboard I/O includes 6 DI 24 V DC, 4 DO relay 2 A, and 2 AI 0-10 V DC.
3. What power supply range is specified for this CPU?
The power supply is DC 20.4-28.8 V DC.
4. What is the program/data memory capacity stated for this CPU?
Program/data memory is specified as 75 KB.
