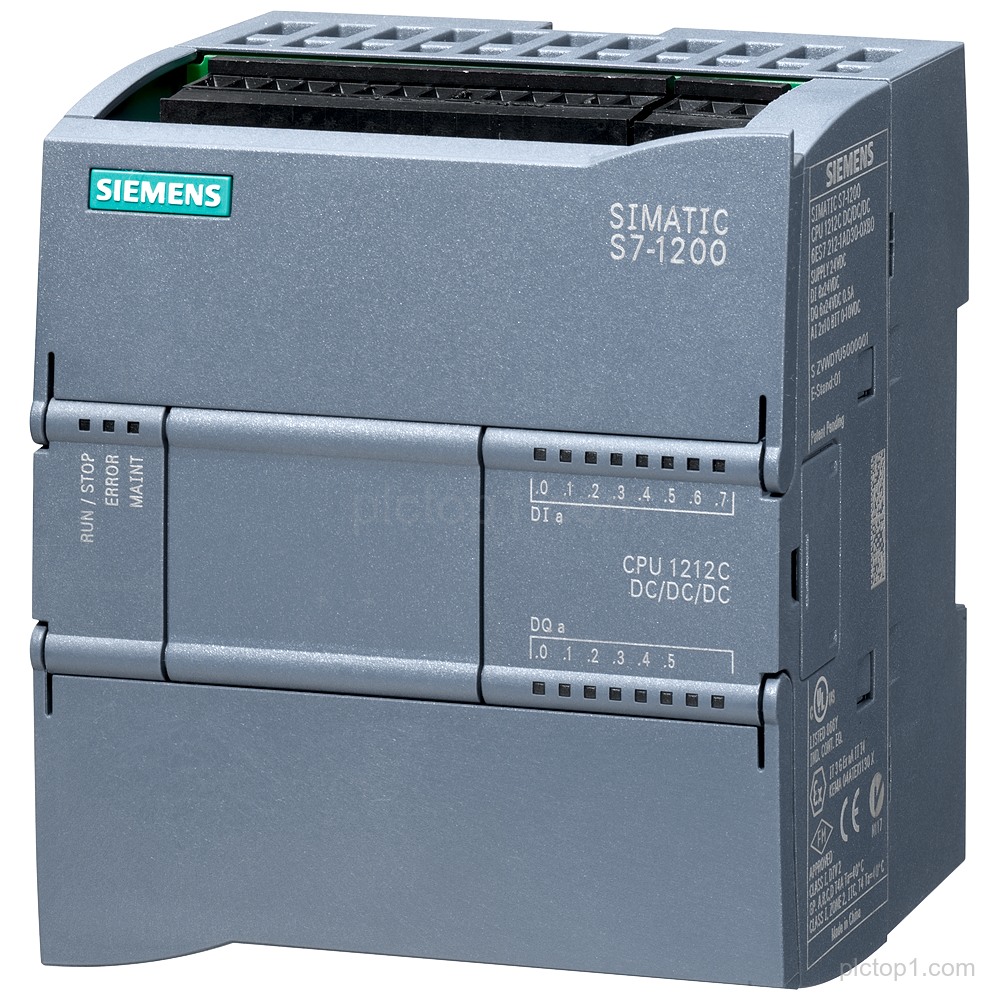

SIMATIC S7-1200 CPU 1212C (Part number: 6ES7212-1AE40-0XB0) is a compact CPU with DC/DC/DC design and onboard I/O.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU designation:CPU 1212C
Design:compact CPU
DC/DC/DC:DC/DC/DC
Onboard I/O:8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:100 KB
Engineering Context
CPU 1212C provides compact CPU processing in the SIMATIC S7-1200 system with DC/DC/DC design.
The onboard I/O includes 8 DI 24 V DC, 6 DO 24 V DC, and 2 AI 0-10 V DC.
The CPU is supplied with DC 20.4-28.8 V DC and offers 100 KB program/data memory.
FAQ
1. What is the product family and CPU designation for part number 6ES7212-1AE40-0XB0?
SIMATIC S7-1200, CPU 1212C.
2. What onboard I/O does CPU 1212C provide?
8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC.
3. What power supply range is specified for this CPU?
DC 20.4-28.8 V DC.
4. How much program/data memory is available?
100 KB.
5. Is the CPU described as a compact CPU?
Yes, it is described as a compact CPU.
