Product information

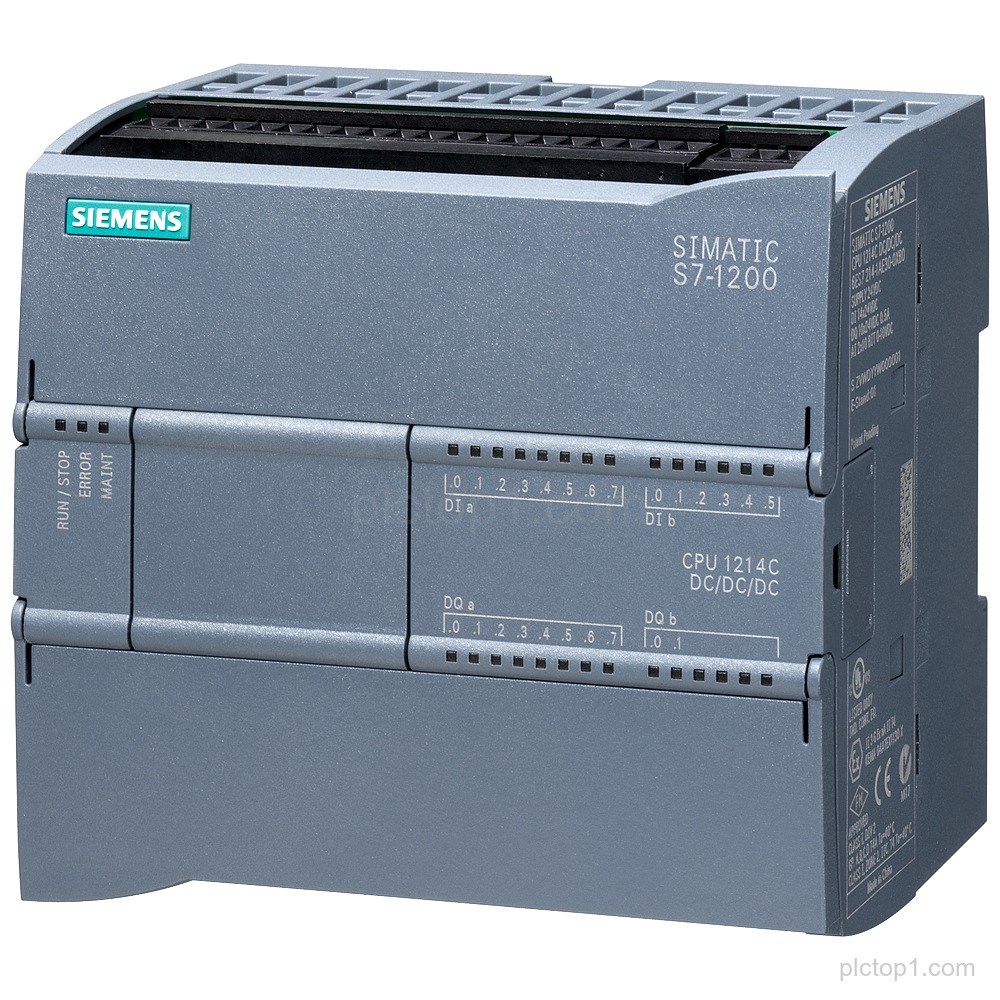

SIMATIC S7-1200 CPU 1214C compact CPU (Part Number: 6ES7214-1AG40-0XB0) with DC/DC/DC design and onboard I/O, suitable for system configurations requiring the specified power supply range and memory capacity.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU type:CPU 1214C
Design:compact CPU
Power supply design:DC/DC/DC
Onboard DI:14 DI 24 V DC
Onboard DO:10 DO 24 V DC
Onboard AI:2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:150 KB
Engineering Context
The CPU 1214C provides onboard I/O configured as 14 DI 24 V DC, 10 DO 24 V DC, and 2 AI 0-10 V DC.
The specified DC 20.4-28.8 V DC power supply range is required for operation of this compact CPU.
The CPU includes program/data memory of 150 KB for application storage.
FAQ
1. What product family and CPU designation are associated with part number 6ES7214-1AG40-0XB0?
SIMATIC S7-1200, CPU 1214C.
2. What is the onboard I/O configuration for this compact CPU?
Onboard I/O: 14 DI 24 V DC, 10 DO 24 V DC, and 2 AI 0-10 V DC.
3. What power supply range is specified for the CPU 1214C?
DC 20.4-28.8 V DC.
4. What are the provided program/data memory specifications?
Program/data memory: 150 KB.
