Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

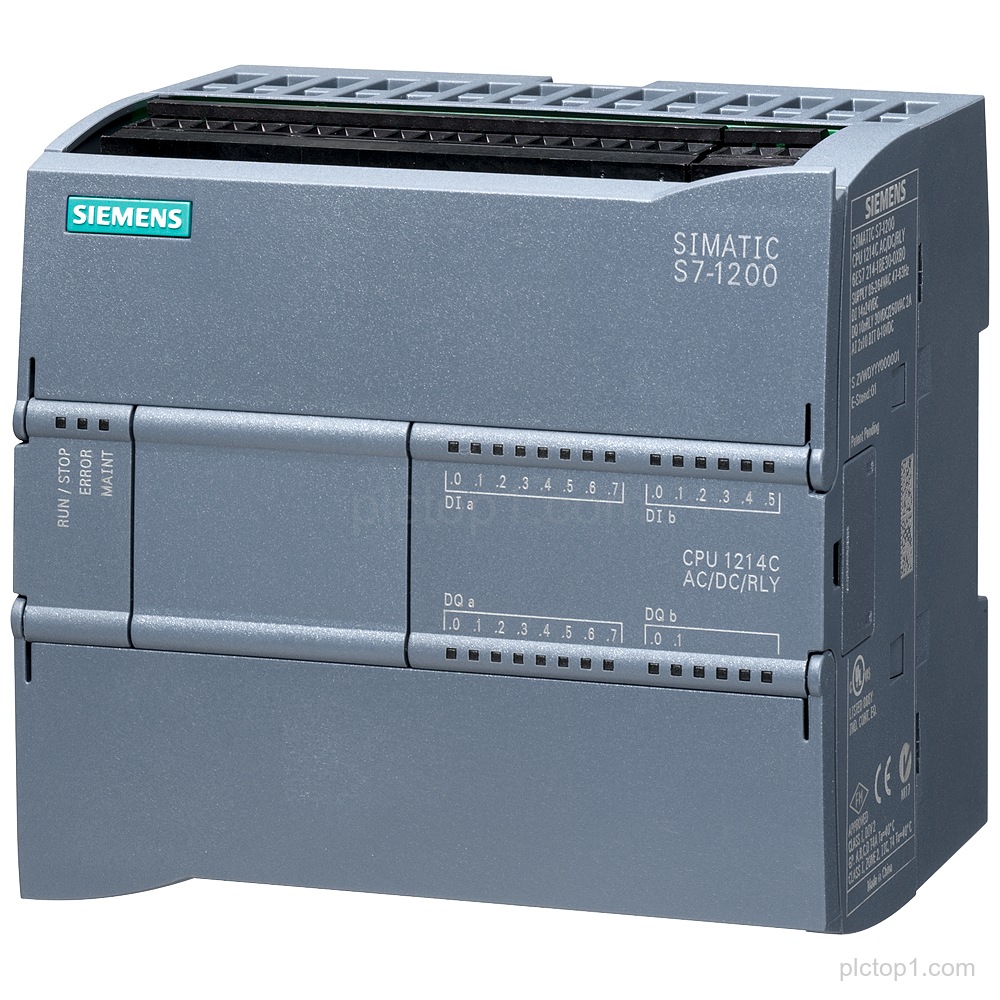

SIMATIC S7-1200 CPU 1214C compact CPU with part number 6ES7214-1BG40-0XB0, featuring AC/DC/relay design and onboard I/O (DI, DO relay, and AI).
Detailed Parameters
Product family:SIMATIC S7-1200
CPU:CPU 1214C
CPU type:compact CPU
Design:AC/DC/relay
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DO:10 DO relay 2 A
Onboard I/O – AI:2 AI 0-10 V DC
Power supply:AC 85-264 V AC at 47-63 Hz
Program/data memory:150 KB
Engineering Context
CPU 1214C is a compact CPU in the SIMATIC S7-1200 family.
The CPU 1214C provides onboard I/O including 14 DI 24 V DC, 10 DO relay 2 A, and 2 AI 0-10 V DC.
The CPU 1214C is supplied with AC 85-264 V AC at 47-63 Hz and includes 150 KB program/data memory.
FAQ
1. Which Siemens product family does 6ES7214-1BG40-0XB0 belong to?
It belongs to the SIMATIC S7-1200 family.
2. What CPU designation and type are provided by 6ES7214-1BG40-0XB0?
It is SIMATIC S7-1200 CPU 1214C, a compact CPU.
3. What onboard digital input and output are available?
Onboard I/O includes 14 DI 24 V DC and 10 DO relay 2 A.
4. What onboard analog input range is available?
Onboard analog input is 2 AI 0-10 V DC.
5. What power supply range does CPU 1214C support?
Power supply is AC 85-264 V AC at 47-63 Hz.
6. How much program/data memory is specified for this CPU?
Program/data memory is 150 KB.
