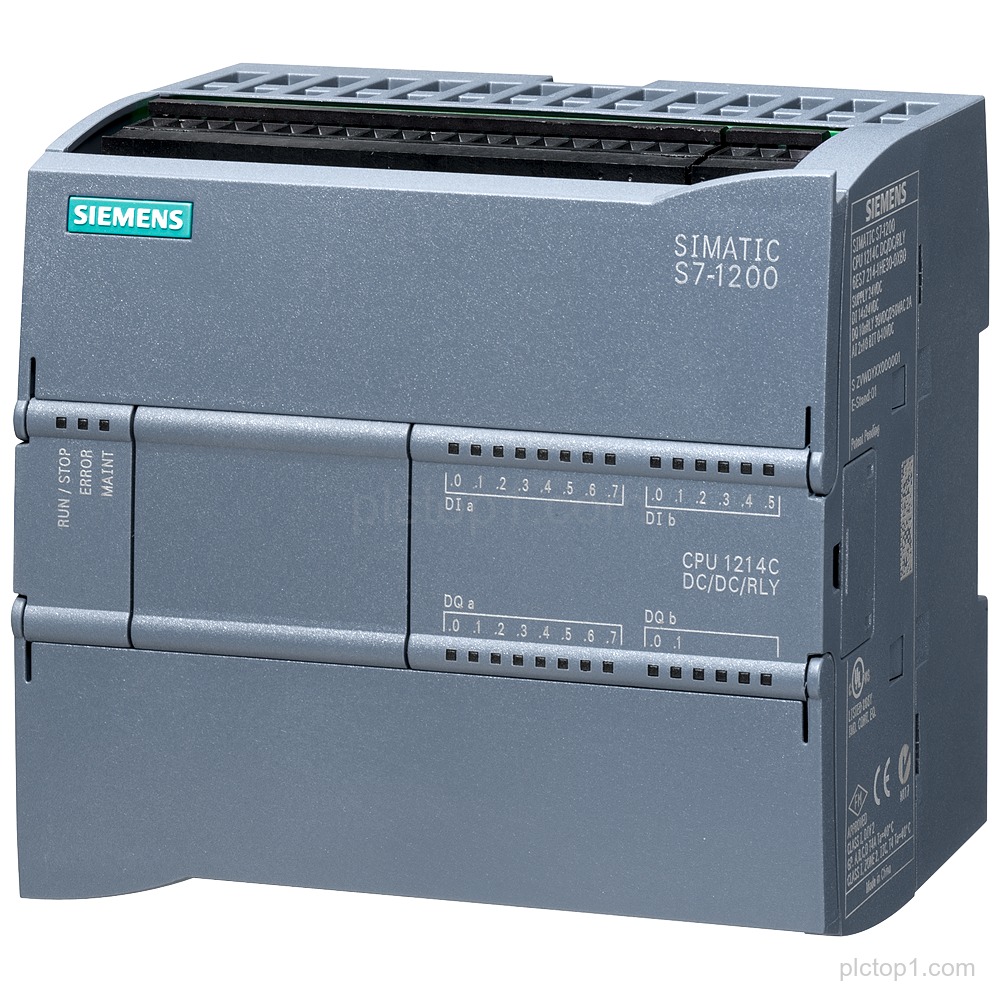

SIMATIC S7-1200 CPU 1214C compact CPU (part number: 6ES7214-1HG40-0XB0) provides DC/DC/relay control with onboard I/O and defined memory and power supply ranges.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU designation:CPU 1214C
CPU type:compact CPU
Technology:DC/DC/relay
Onboard digital inputs:14 DI 24 V DC
Onboard digital outputs:10 DO relay 2 A
Onboard analog inputs:2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:150 KB
Engineering Context
CPU 1214C is a SIMATIC S7-1200 compact CPU with DC/DC/relay technology and onboard I/O.
The onboard I/O includes 14 DI 24 V DC, 10 DO relay 2 A, and 2 AI 0-10 V DC.
The CPU is supplied with DC 20.4-28.8 V DC and provides 150 KB program/data memory.
