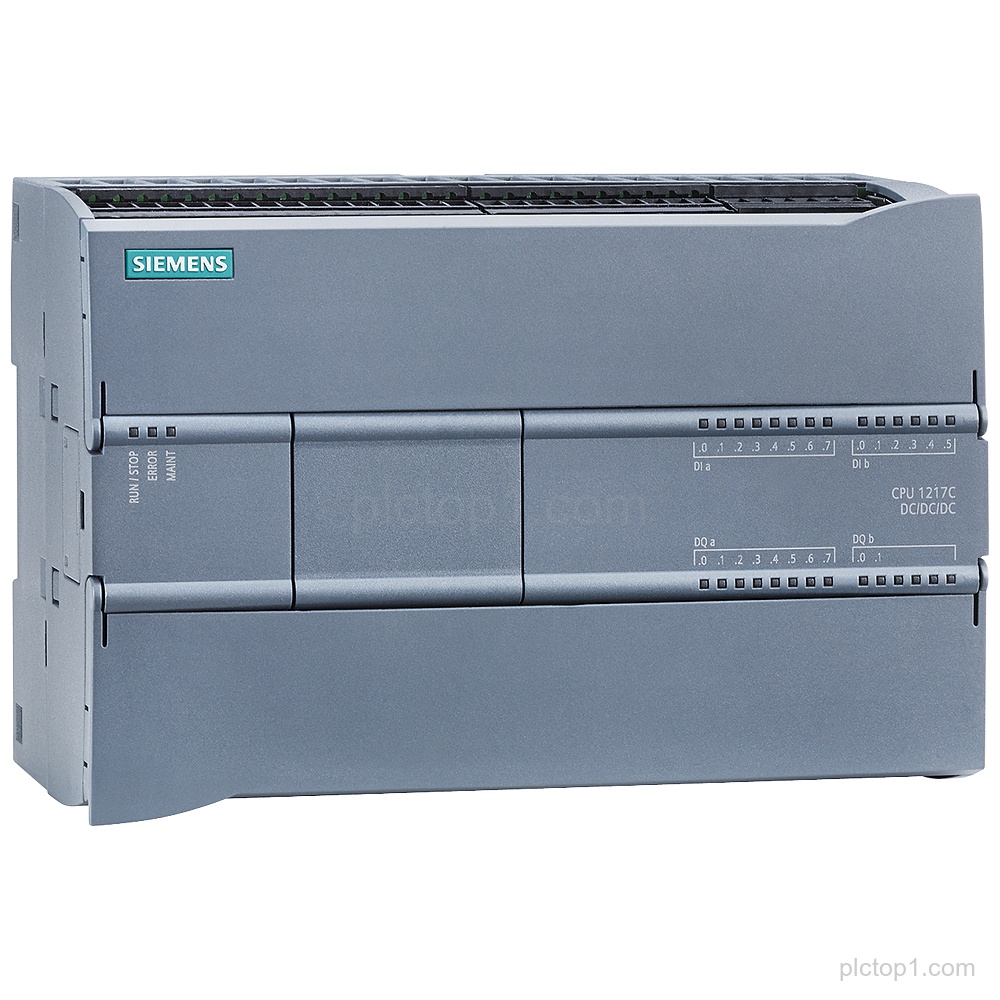

SIMATIC S7-1200 CPU 1217C compact CPU with part number 6ES7217-1AG40-0XB0 and onboard I/O including 10 DI 24 V DC, 4 DI RS-422/485, 6 DO 24 V DC, 4 DO RS-422/485, 2 AI 0-10 V DC and 2 AO 0-20 mA.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU designation:CPU 1217C
CPU type:compact CPU
Power supply concept:DC/DC/DC
Onboard PROFINET ports:2
Digital inputs DI 24 V DC:10
Digital inputs DI RS-422/485:4
Digital outputs DO 24 V DC:6
Digital output DO 24 V DC current:0.5 A
Digital outputs DO RS-422/485:4
Analog inputs AI 0-10 V DC:2
Analog outputs AO 0-20 mA:2
Power supply voltage:DC 20.4-28.8 V DC
Program/data memory:250 KB
Engineering Context
The SIMATIC S7-1200 CPU 1217C compact CPU provides onboard I/O including digital and analog channels as listed.
The CPU 1217C includes 2 PROFINET ports onboard for system integration depending on the configured system.
Use the DC 20.4-28.8 V DC power supply specification when designing the power supply for the CPU.
FAQ
1. What is the product family and CPU designation for part number 6ES7217-1AG40-0XB0?
SIMATIC S7-1200, CPU 1217C.
2. How many PROFINET ports are onboard on CPU 1217C?
2 PROFINET ports onboard.
3. What digital inputs and outputs are available onboard?
10 DI 24 V DC, 4 DI RS-422/485, 6 DO 24 V DC (0.5 A), and 4 DO RS-422/485.
4. What analog channels are available onboard CPU 1217C?
2 AI 0-10 V DC and 2 AO 0-20 mA.
5. What is the required power supply voltage range for the CPU?
DC 20.4-28.8 V DC.
6. What program/data memory capacity is specified for CPU 1217C?
250 KB.
