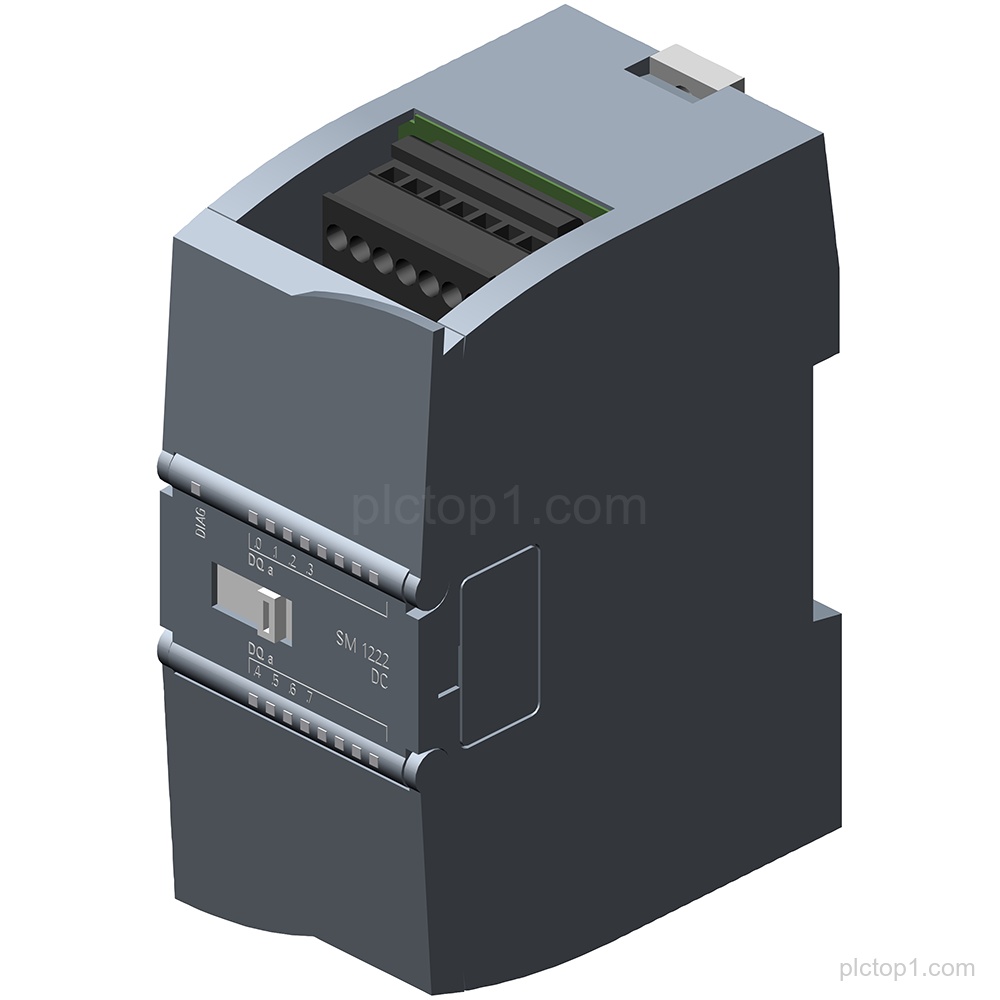

SIMATIC S7-1200 Digital output SM 1222 (Part Number: 6ES7222-1BF32-0XB0) is a digital output module with 8 DO for 24 V DC transistor outputs.
Detailed Parameters
Product family:SIMATIC S7-1200
Module:Digital output SM 1222
Number of digital outputs (DO):8
Output voltage:24 V DC
Output type:transistor
Output current:0.5 A
Engineering Context
Digital output SM 1222 is intended for use within the SIMATIC S7-1200 system as a digital output module.
The module provides 8 DO with transistor outputs at 24 V DC, suitable for switching loads configured for this output type.
Use the specified 0.5 A output current rating when designing the load interface for the 24 V DC transistor outputs.
FAQ
1. What system family is 6ES7222-1BF32-0XB0 for?
6ES7222-1BF32-0XB0 is for SIMATIC S7-1200.
2. How many digital outputs does the Digital output SM 1222 provide?
It provides 8 DO.
3. What output voltage and output type are specified?
The outputs are 24 V DC and are transistor outputs.
4. What output current rating is specified for the module?
The specified output current is 0.5 A.
