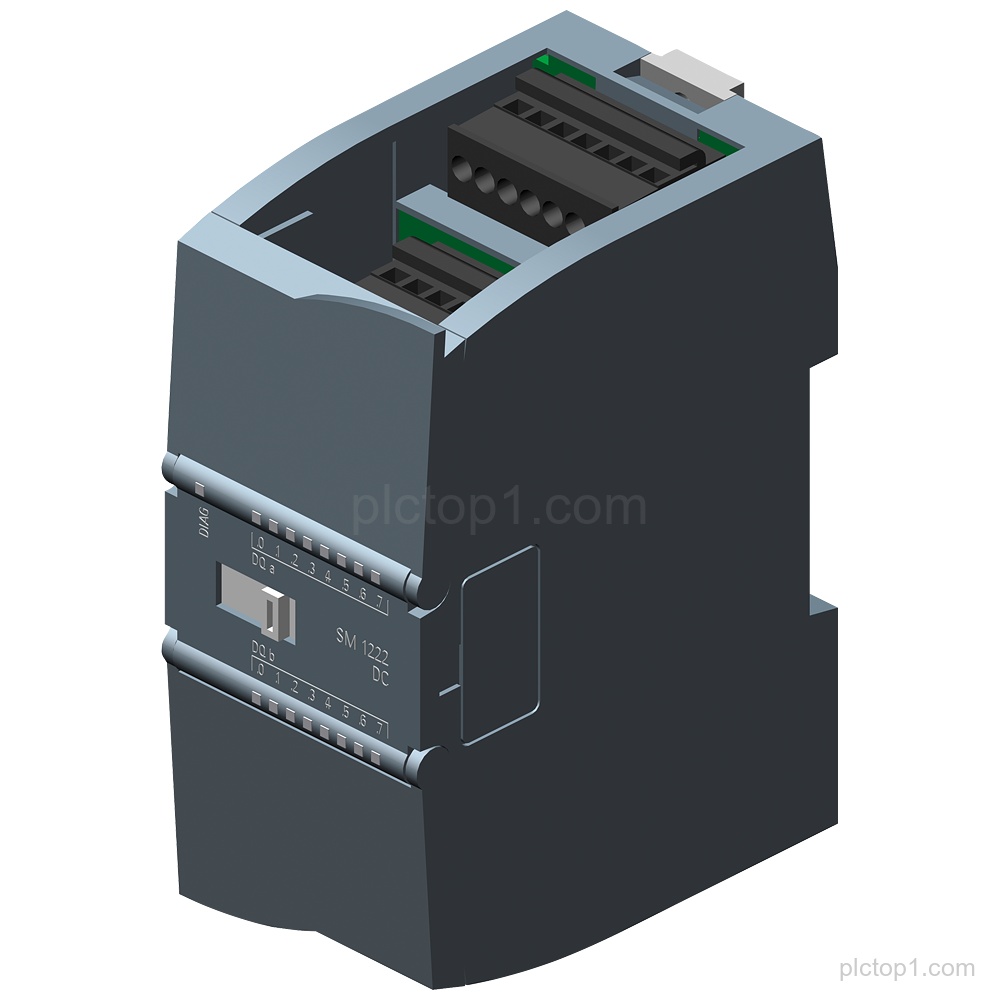

SIMATIC S7-1200 Digital output SM 1222 (Part number: 6ES7222-1BH32-0XB0) provides 16 DO transistor outputs for 24 V DC applications.
Detailed Parameters
Product family:SIMATIC S7-1200
Module type:Digital output SM 1222
Number of digital outputs:16 DO
Output voltage:24 V DC
Output type:transistor
Output current:0.5 A
Engineering Context
Use the Digital output SM 1222 in the SIMATIC S7-1200 system configuration to provide 16 DO transistor outputs.
The SM 1222 outputs are specified for 24 V DC and are transistor-based.
The module output current is specified as 0.5 A.
FAQ
1. What is the module type for part number 6ES7222-1BH32-0XB0?
The module type is Digital output SM 1222.
2. How many digital outputs does SM 1222 provide?
It provides 16 DO.
3. What output voltage and output type are specified?
The output voltage is 24 V DC and the output type is transistor.
4. What is the specified output current for this SM 1222?
The output current is specified as 0.5 A.
