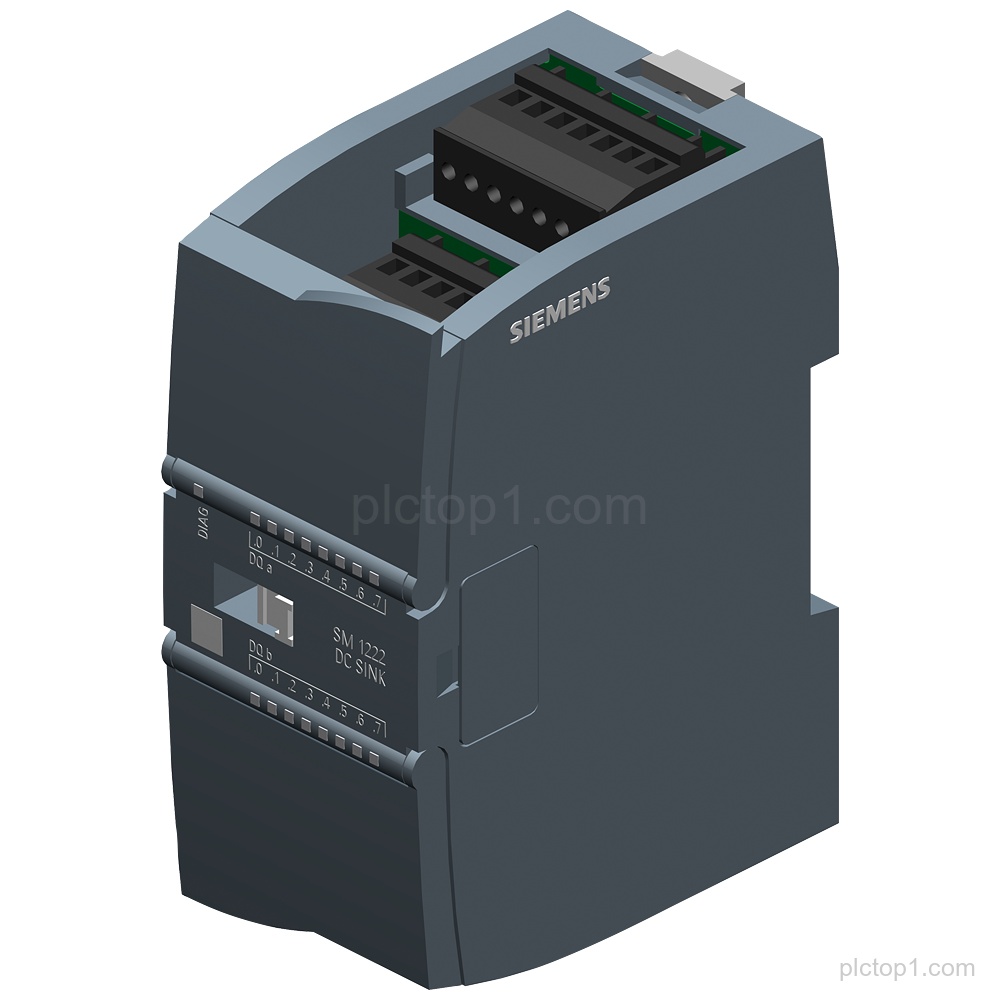

SIMATIC S7-1200 SM 1222 digital output module 6ES7222-1BH32-1XB0 with 16 DO for 24 V DC using an NPN transistor output.
Detailed Parameters
Product family:SIMATIC S7-1200
Module type:Digital output SM 1222
Number of digital outputs:16 DO
Output voltage:24 V DC
Output type:sourcing (Sinking Output)
Transistor type:NPN transistor
Output current:0.5 A
Engineering Context
Use SM 1222 as a SIMATIC S7-1200 digital output module with 16 DO.
The SM 1222 provides 24 V DC digital output with an NPN transistor and an output current of 0.5 A.
Select the SM 1222 output stage according to the specified sourcing (Sinking Output) configuration.
FAQ
1. What SIMATIC system is this digital output module for?
It is for SIMATIC S7-1200.
2. How many digital outputs does SM 1222 provide?
It provides 16 DO.
3. What output voltage does the SM 1222 module use?
It uses 24 V DC.
4. What output configuration and transistor type are specified?
It is specified as sourcing (Sinking Output) with an NPN transistor.
5. What output current is specified for this module?
0.5 A.
6. What is the part number of this module?
6ES7222-1BH32-1XB0.
