Product information

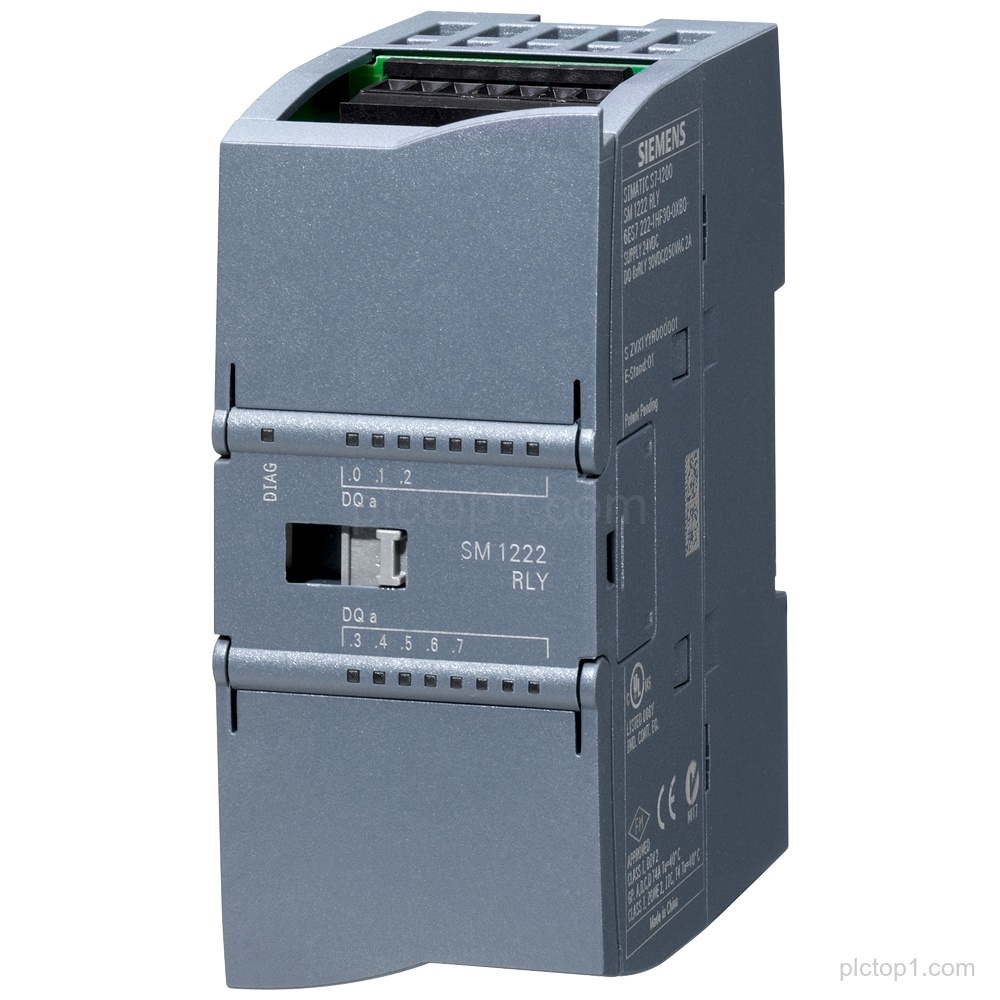

SIMATIC S7-1200 Digital output SM 1222 with part number 6ES7222-1HF32-0XB0 provides 8 digital outputs (DO) implemented as relay outputs rated at 2 A.
Detailed Parameters
Product family:SIMATIC S7-1200
Module:Digital output SM 1222
Part number:6ES7222-1HF32-0XB0
Output type:Relay
Number of digital outputs (DO):8
Output current:2 A
Engineering Context
The Digital output SM 1222 is used in SIMATIC S7-1200 configurations to provide digital output switching via relay outputs.
The module provides 8 digital outputs (DO) for system-level signal output based on relay operation.
The relay output current rating is specified as 2 A.
FAQ
1. What product family and module designation does 6ES7222-1HF32-0XB0 belong to?
6ES7222-1HF32-0XB0 belongs to SIMATIC S7-1200 and is a Digital output SM 1222.
2. How many digital outputs are provided by the SM 1222 for 6ES7222-1HF32-0XB0?
It provides 8 DO.
3. What output technology is used on the Digital output SM 1222?
It uses relay outputs.
4. What is the relay output current rating for 6ES7222-1HF32-0XB0?
The relay output current rating is 2 A.
