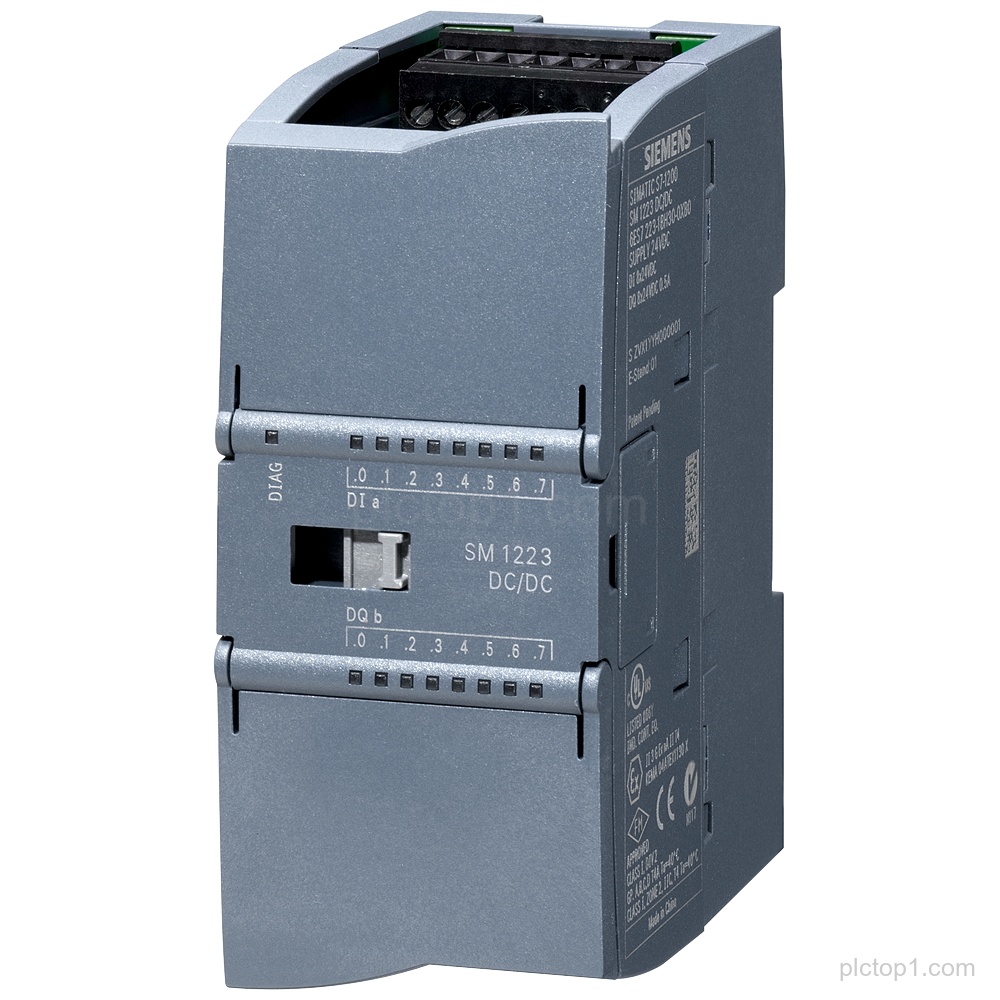

SIMATIC S7-1200 Digital I/O SM 1223 (Part Number: 6ES7223-1BH32-0XB0) is designed for 8 DI and 8 DO with 24 V DC digital inputs and transistor outputs.
Detailed Parameters
Product family:SIMATIC S7-1200
Module:Digital I/O SM 1223
Digital inputs (DI):8 DI
Digital input voltage:24 V DC
Input type:Sink/Source
Digital outputs (DO):8 DO
Output technology:transistor
Output current:0.5 A
Engineering Context
The SM 1223 supports a mixed configuration of 8 digital inputs (DI) and 8 digital outputs (DO) within the SIMATIC S7-1200 system.
Digital inputs are specified for 24 V DC operation with Sink/Source input type.
Digital outputs are implemented using transistor outputs with a current value of 0.5 A.
FAQ
1. What system and module family is 6ES7223-1BH32-0XB0 for?
6ES7223-1BH32-0XB0 is for SIMATIC S7-1200 as a Digital I/O SM 1223 module.
2. How many digital input and output channels does the module provide?
It provides 8 DI and 8 DO.
3. What is the specified digital input voltage?
The digital inputs are specified as 24 V DC.
4. What output type is used for the digital outputs?
The digital outputs use transistor outputs.
5. What output current value is specified?
The output current is specified as 0.5 A.
6. What input type is specified for the digital inputs?
The digital input type is Sink/Source.
