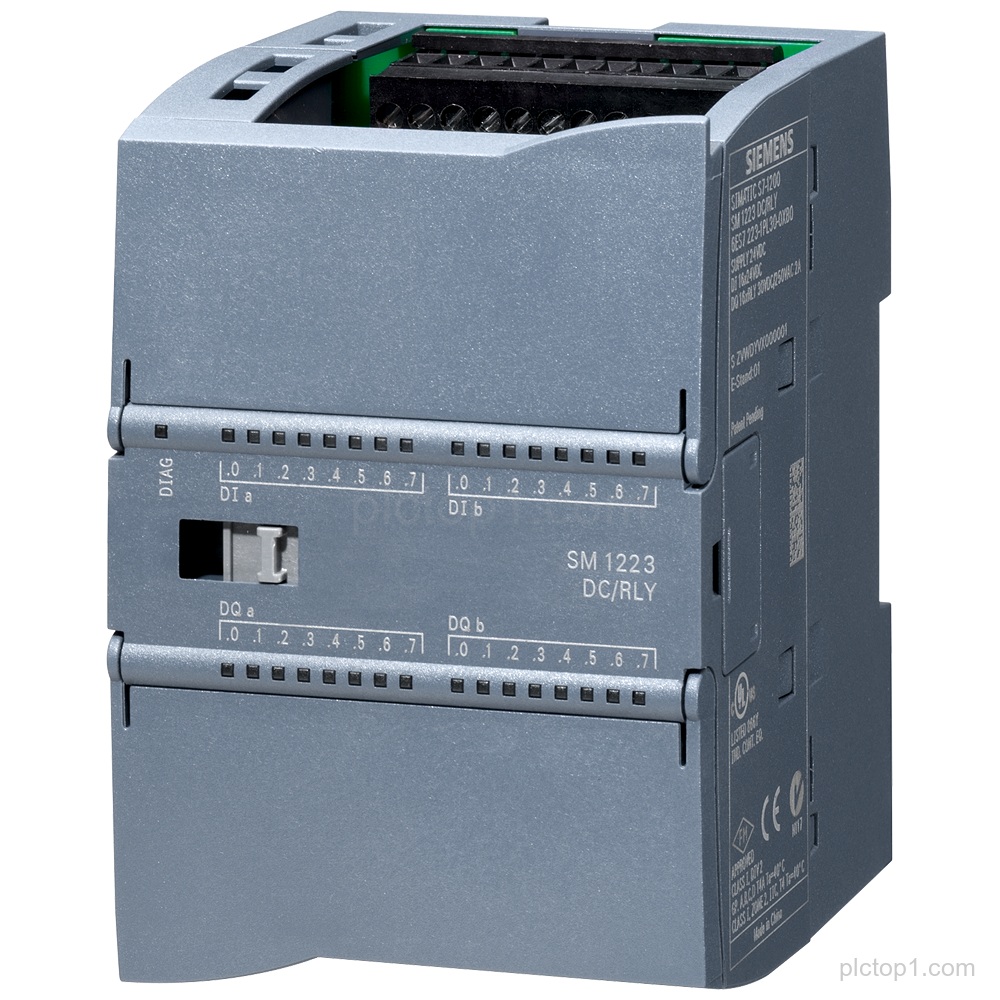

SIMATIC S7-1200 Digital I/O SM 1223 (part number 6ES7223-1PL32-0XB0) provides 16 DI and 16 DO for digital I/O applications with a 24 V DC input supply and relay output rated current.
Detailed Parameters
Product family:SIMATIC S7-1200
Module:Digital I/O SM 1223
Digital inputs (DI):16
Digital outputs (DO):16
Input type:16 DI 24 V DC
Input configuration:Sink/Source
Output type:relay
Relay current:2 A
Engineering Context
Use SIMATIC S7-1200 Digital I/O SM 1223 to implement a combined digital input and digital output stage.
The module supports 16 DI and 16 DO, with the digital inputs specified as 24 V DC and sink/source configuration.
The outputs are specified as relay outputs with a rated current of 2 A.
FAQ
1. What module family and function does 6ES7223-1PL32-0XB0 belong to?
6ES7223-1PL32-0XB0 is a SIMATIC S7-1200 Digital I/O SM 1223.
2. How many digital inputs and digital outputs are provided?
It provides 16 DI and 16 DO.
3. What is the digital input voltage specification?
The digital inputs are specified as 16 DI 24 V DC.
4. What sink/source configuration is supported?
The module is specified as Sink/Source.
5. What is the output type and rated current?
The outputs are relay outputs with 2 A rated current.
