Product information

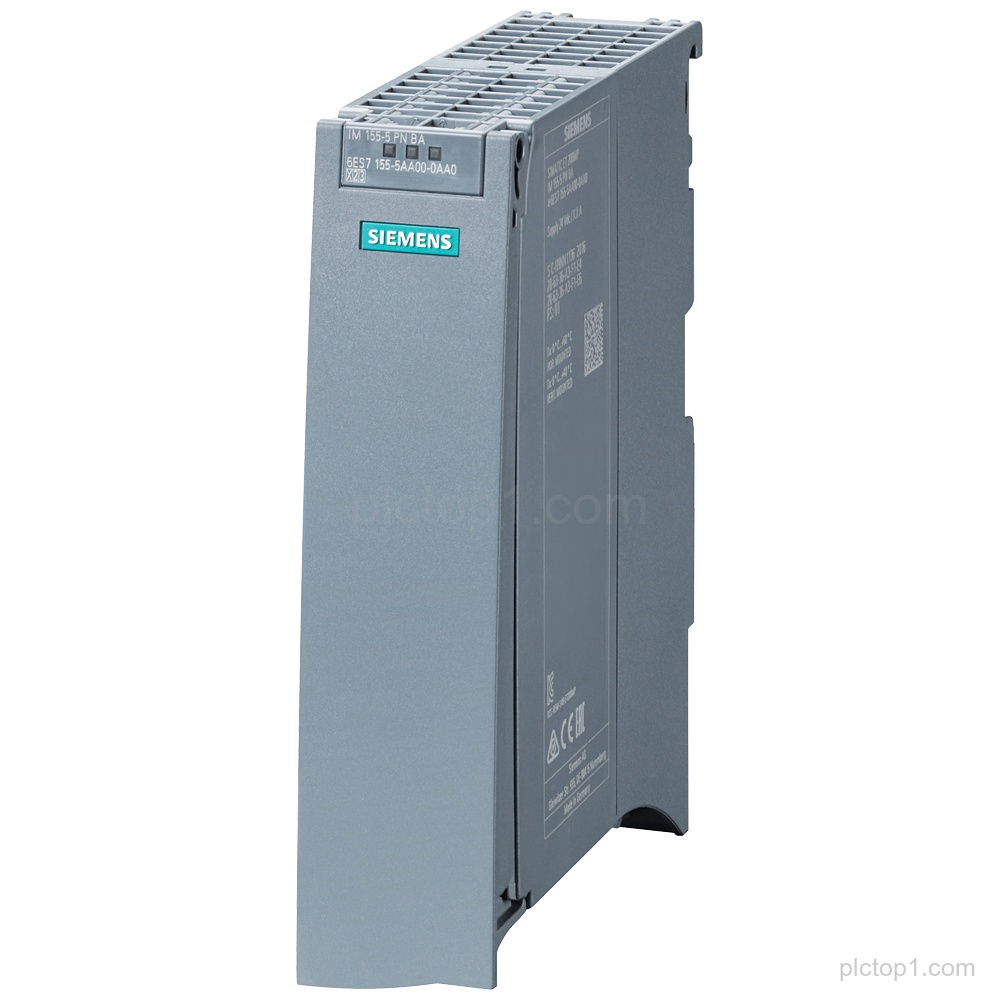

SIMATIC ET 200MP PROFINET IO Interface module IM 155-5 PN BA (Part number: 6ES7155-5AA00-0AA0) is designed for ET 200MP electronic modules and provides an integrated 2-port switch for interface operation.
Detailed Parameters
Product family:SIMATIC ET 200MP PROFINET IO
Module designation:IM 155-5 PN BA
Interface module type:Interface module
Application system:ET 200MP electronic modules
Max. IO modules:up to 12 IO modules
Switch:Integrated 2-port switch
Shared Device:RJ45 Shared Device with 2 IO controllers, MRP
Firmware update:FW update
I&M:I&M0…3
Engineering Context
The IM 155-5 PN BA interface module is intended for use with ET 200MP electronic modules.
The module supports up to 12 IO modules and includes an integrated 2-port switch.
The RJ45 Shared Device configuration operates with 2 IO controllers with MRP and supports FW update.
FAQ
1. What is the product family and module designation for part number 6ES7155-5AA00-0AA0?
The product family is SIMATIC ET 200MP PROFINET IO and the module designation is IM 155-5 PN BA.
2. What is the maximum number of IO modules supported?
Up to 12 IO modules.
3. Does the module include an integrated switch?
Yes, it has an integrated 2-port switch.
4. What shared-device and controller configuration is supported?
RJ45 Shared Device with 2 IO controllers, MRP.
5. Is FW update supported?
Yes, FW update is supported.
6. Which I&M data ranges are provided?
I&M0…3.
