Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

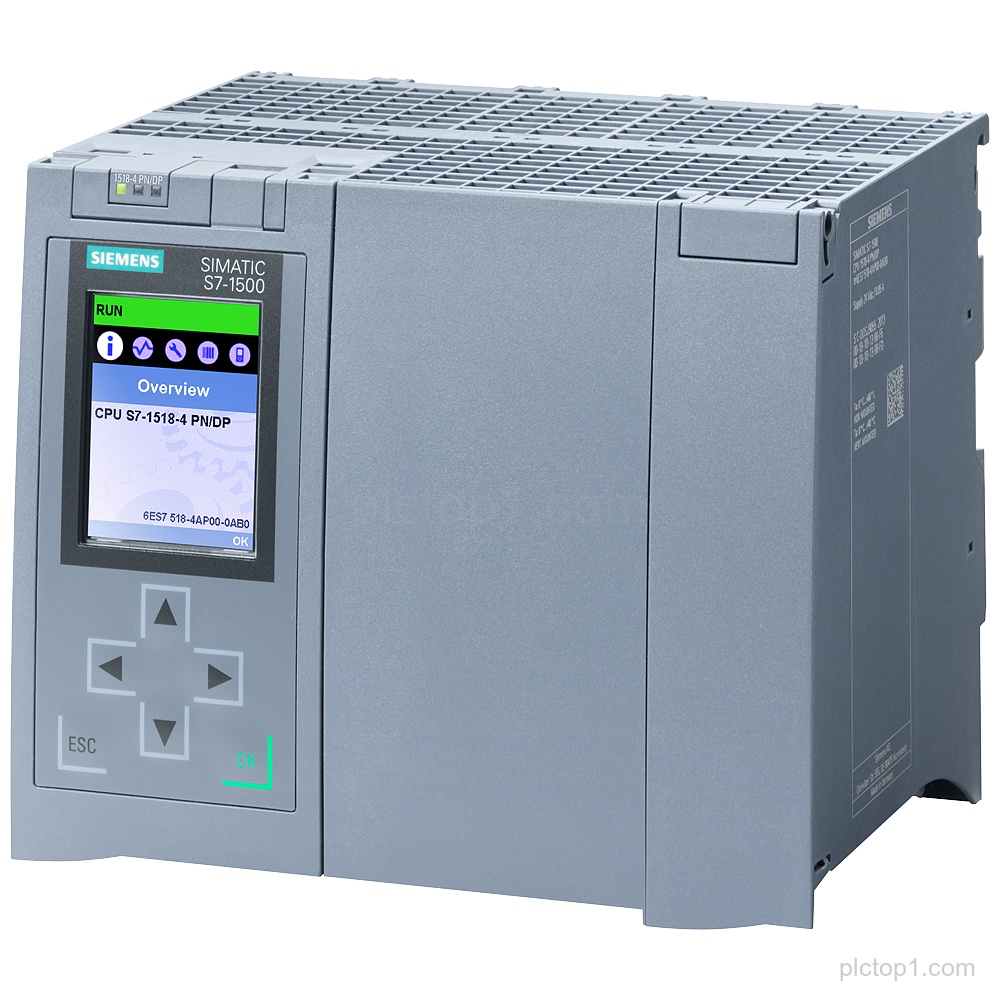

SIMATIC S7-1500 CPU 1518-4 PN/DP (Part number: 6ES7518-4AP00-0AB0) is a central processing unit with provided work memory and interfaces including PROFINET IRT, PROFINET RT, Ethernet, and PROFIBUS. SIMATIC Memory Card required.
Detailed Parameters
Product family:SIMATIC S7-1500
CPU type:CPU 1518-4 PN/DP
Work memory for program:6 MB
Data memory:60 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:Ethernet
4th interface:PROFIBUS
Bit performance:1 ns
Memory card requirement:SIMATIC Memory Card required
Engineering Context
CPU 1518-4 PN/DP provides central processing unit functionality for SIMATIC S7-1500 system configuration.
The CPU includes PROFINET IRT with a 2-port switch and additional interfaces for PROFINET RT, Ethernet, and PROFIBUS.
The CPU supports performance specified as 1 ns bit performance and includes memory for program (6 MB) and data (60 MB).
FAQ
1. What product family and CPU designation are associated with Part number 6ES7518-4AP00-0AB0?
The product belongs to SIMATIC S7-1500 and the CPU designation is CPU 1518-4 PN/DP.
2. How much memory is provided for program and data?
It provides 6 MB work memory for program and 60 MB for data.
3. Which interfaces are available on CPU 1518-4 PN/DP?
1st interface: PROFINET IRT with 2-port switch; 2nd interface: PROFINET RT; 3rd interface: Ethernet; 4th interface: PROFIBUS.
4. Is a SIMATIC Memory Card required for this CPU?
Yes, SIMATIC Memory Card required.
5. What is the specified bit performance of the CPU?
The specified bit performance is 1 ns.
