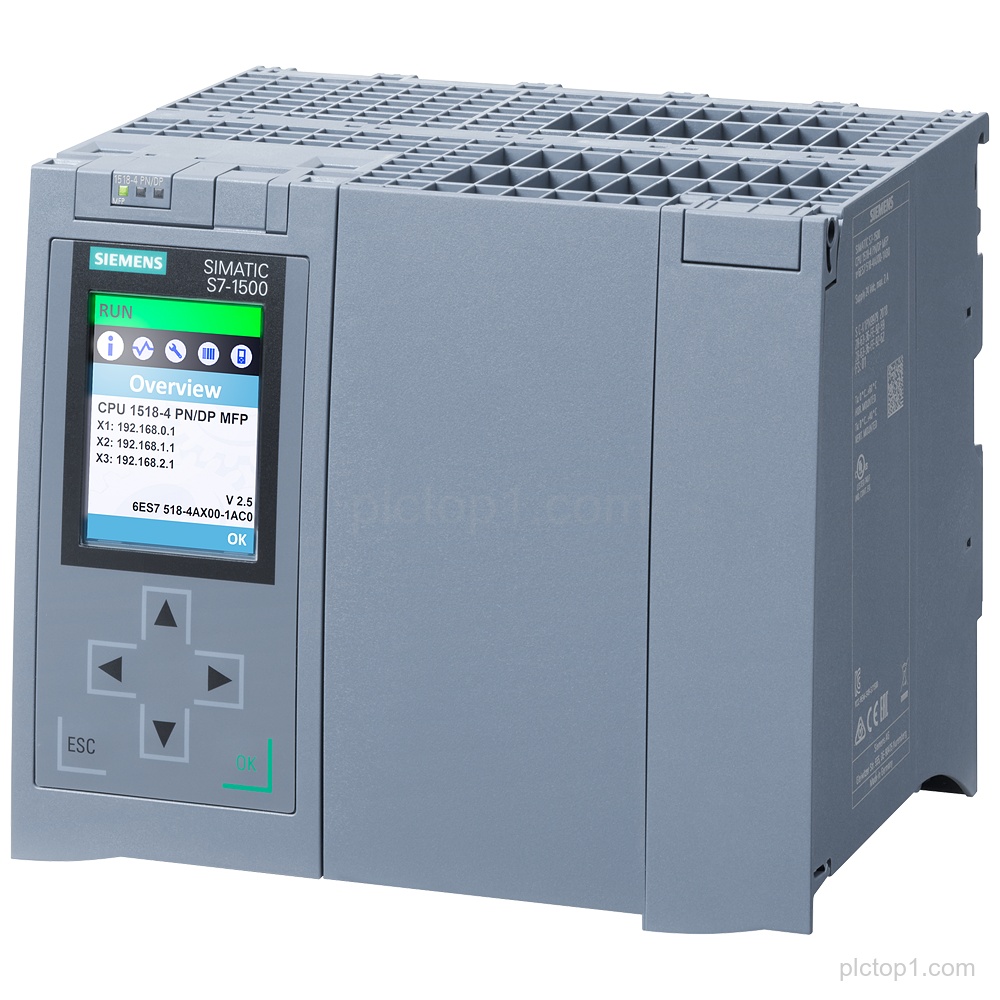

SIMATIC S7-1500 CPU Bundle (6ES7518-4AX00-1AC0) consisting of CPU 1518-4 PN/DP MFP with C/C++ Runtime and OPC UA Runtime license, memory resources, and specified interfaces including PROFINET IRT, PROFINET RT, PROFINET basic services, and PROFIBUS.
Detailed Parameters
Product type:SIMATIC S7-1500, CPU Bundle
CPU included:CPU 1518-4 PN/DP MFP (6ES7518-4AX00-1AB0)
Runtime licenses included:C/C++ Runtime and OPC UA Runtime license
Work memory for program:6 MB
Work memory for data:60 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:PROFINET basic services
4th interface:PROFIBUS
Bit performance:1 ns
SIMATIC Memory Card requirement:SIMATIC Memory Card (min. 2 GB) required
Engineering Context
The CPU Bundle is based on CPU 1518-4 PN/DP MFP for SIMATIC S7-1500 systems.
The bundle provides multiple interfaces including PROFINET IRT (2-port switch), PROFINET RT, PROFINET basic services, and PROFIBUS.
The included runtime licenses cover C/C++ Runtime and OPC UA Runtime within the bundle.
FAQ
1. What is included in the SIMATIC S7-1500 CPU Bundle 6ES7518-4AX00-1AC0?
It includes CPU 1518-4 PN/DP MFP (6ES7518-4AX00-1AB0), C/C++ Runtime and OPC UA Runtime license, work memory of 6 MB for program and 60 MB for data, and the specified interfaces.
2. Which interfaces are available on the 6ES7518-4AX00-1AC0 CPU Bundle?
1st interface: PROFINET IRT with 2-port switch; 2nd interface: PROFINET RT; 3rd interface: PROFINET basic services; 4th interface: PROFIBUS.
3. What work memory is specified for 6ES7518-4AX00-1AC0?
6 MB work memory for program and 60 MB work memory for data.
4. Which runtime licenses are included with 6ES7518-4AX00-1AC0?
C/C++ Runtime and OPC UA Runtime license.
5. Is a SIMATIC Memory Card required for 6ES7518-4AX00-1AC0?
Yes. SIMATIC Memory Card (min. 2 GB) required.
