Product information

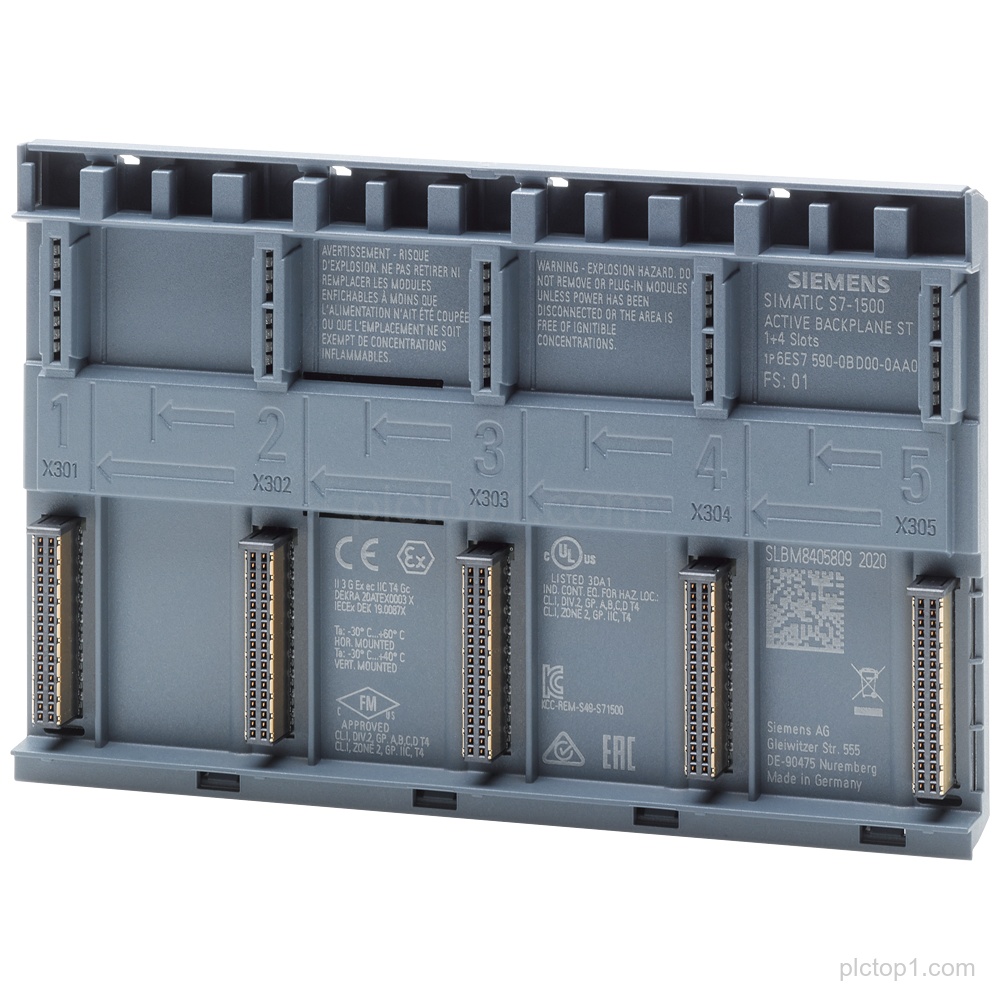

SIMATIC S7-1500 / ET 200MP active backplane bus; part number 6ES7590-0BD00-0AA0 for 4 slots for inserting S7-1500 I/O modules for hot swapping in the ET 200MP with IM 155-5 PN HF (from FW V4.4.1).
Detailed Parameters
Product line:SIMATIC S7-1500 / ET 200MP
Backplane bus type:active backplane bus
Slot count:4 slots
Intended function:for inserting S7-1500 I/O modules for hot swapping
Use with:ET 200MP with IM 155-5 PN HF (from FW V4.4.1)
Mounting rail and slot covers:to be ordered separately
Engineering Context
The SIMATIC S7-1500 / ET 200MP active backplane bus provides 4 slots for inserting S7-1500 I/O modules.
The backplane bus is intended for hot swapping in the ET 200MP when used with IM 155-5 PN HF from FW V4.4.1.
Mounting rail and slot covers are not included and are to be ordered separately.
FAQ
1. What is the SIMATIC product family and designation of the part 6ES7590-0BD00-0AA0?
SIMATIC S7-1500 / ET 200MP active backplane bus.
2. How many slots does the active backplane bus provide?
It provides 4 slots for inserting S7-1500 I/O modules.
3. Is the backplane bus intended for hot swapping?
Yes, it is for inserting S7-1500 I/O modules for hot swapping.
4. For which ET 200MP controller is the backplane bus intended, and from which firmware version?
For use in the ET 200MP with IM 155-5 PN HF (from FW V4.4.1).
5. Are the S7-1500 mounting rail and slot covers included with the backplane bus?
No. The S7-1500 mounting rail and slot covers are to be ordered separately.
