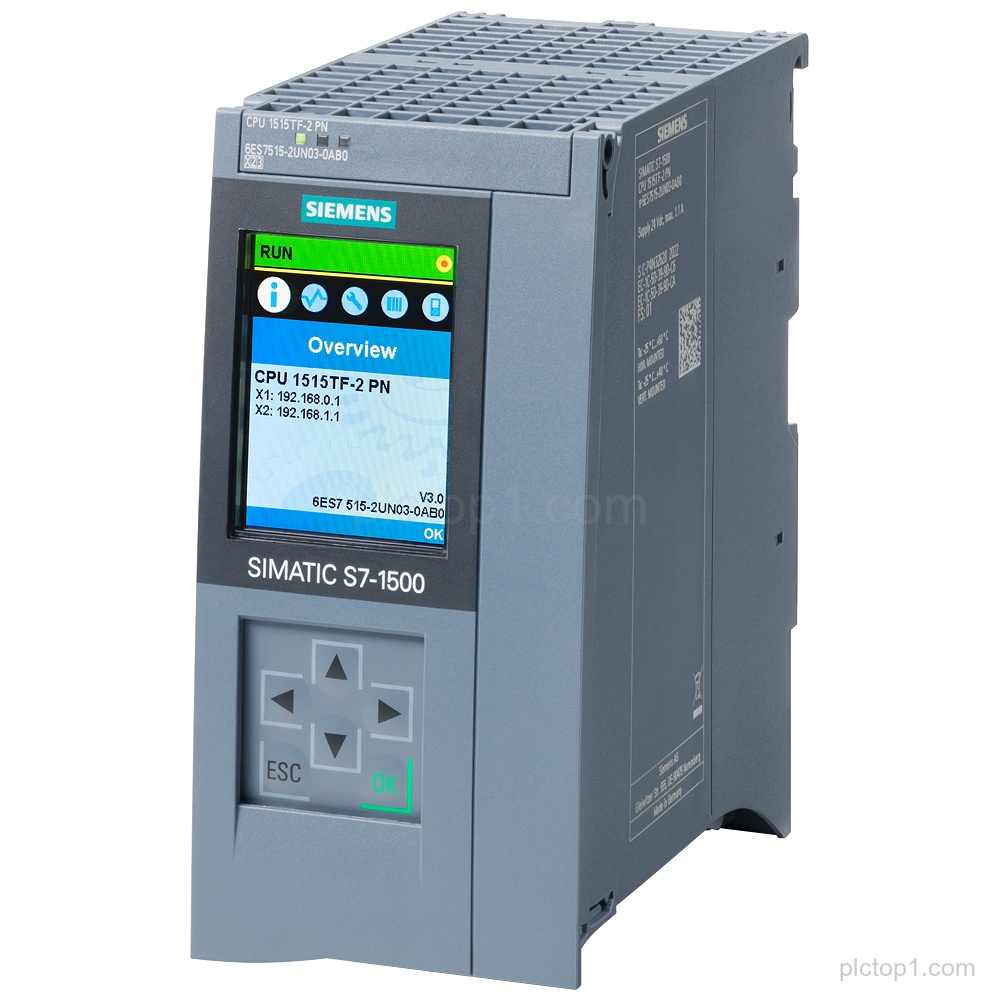

SIMATIC S7-1500T CPU 1515TF-2 PN (Part number: 6ES7515-2UN03-0AB0) provides central processing with defined work memory and PROFINET IRT/RT interfaces.
Detailed Parameters
Product family:SIMATIC S7-1500T
CPU type:CPU 1515TF-2 PN
Work memory for program:1.5 MB
Work memory for data:4.5 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
Bit performance:6 ns bit performance
SIMATIC Memory Card:SIMATIC Memory Card required
Approvals and certificates:Approvals and certificates according to entry 109816881 at support.industry.siemens.com to be considered
Engineering Context
The product is a SIMATIC S7-1500T central processing unit (CPU) CPU 1515TF-2 PN for system configuration using PROFINET IRT and PROFINET RT interfaces.
PROFINET IRT is provided with a 2-port switch for the 1st interface, and PROFINET RT is provided for the 2nd interface.
The CPU performance is specified as 6 ns bit performance and is supported with SIMATIC work memory capacities for program (1.5 MB) and data (4.5 MB).
FAQ
1. What is the product family and CPU designation for Part number 6ES7515-2UN03-0AB0?
The product family is SIMATIC S7-1500T and the CPU designation is CPU 1515TF-2 PN.
2. What work memory capacities are specified for program and data?
The CPU provides 1.5 MB work memory for program and 4.5 MB for data.
3. Which PROFINET interfaces are provided and how many ports are specified for PROFINET IRT?
The 1st interface is PROFINET IRT with 2-port switch and the 2nd interface is PROFINET RT.
4. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required.
5. What is the specified bit performance?
The CPU is specified with 6 ns bit performance.
6. Where should approvals and certificates be considered?
Approvals and certificates are according to entry 109816881 at support.industry.siemens.com.
