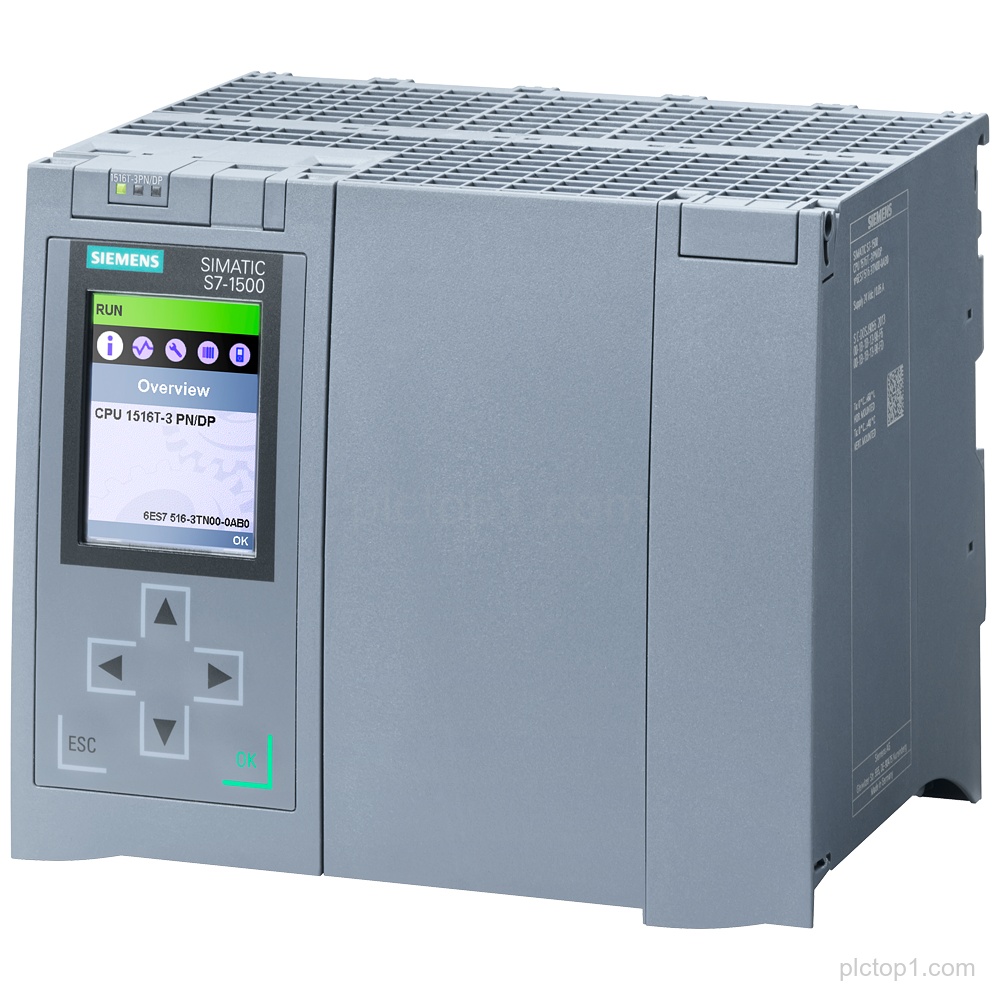

SIMATIC S7-1500T CPU 1516T-3 PN/DP (part number 6ES7516-3TN00-0AB0) provides work memory for program and data and includes PROFINET IRT, Ethernet, and PROFIBUS interfaces.
Detailed Parameters
CPU family:SIMATIC S7-1500T
CPU designation:CPU 1516T-3 PN/DP
Work memory for program:3 MB
Work memory for data:7.5 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:Ethernet
3rd interface:PROFIBUS
Bit performance:6 ns
Memory card requirement:SIMATIC Memory Card required
Engineering Context
The CPU 1516T-3 PN/DP in the SIMATIC S7-1500T family provides work memory for program and data.
Interface configuration includes PROFINET IRT with 2-port switch as well as Ethernet and PROFIBUS via additional interfaces.
SIMATIC Memory Card is required for the CPU.
FAQ
1. What is the product family and CPU designation for part number 6ES7516-3TN00-0AB0?
SIMATIC S7-1500T, CPU 1516T-3 PN/DP.
2. How much work memory is available for program and data?
Work memory: 3 MB for program and 7.5 MB for data.
3. Which interfaces are provided on the CPU?
1st interface: PROFINET IRT with 2-port switch; 2nd interface: Ethernet; 3rd interface: PROFIBUS.
4. What is the specified bit performance?
6 ns.
5. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required.
