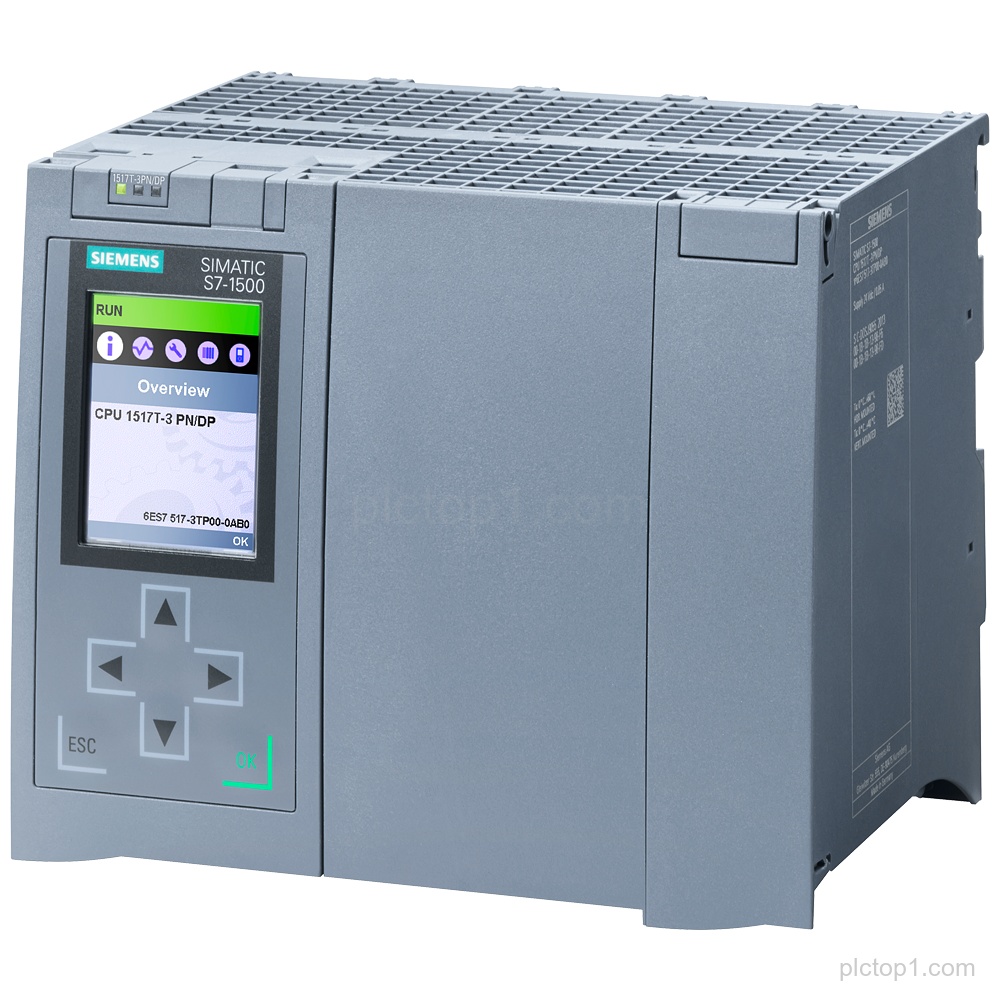

SIMATIC S7-1500T CPU 1517T-3 PN/DP (Part number: 6ES7517-3TP00-0AB0) provides central processing with specified work memory and interfaces including PROFINET IRT, Ethernet, and PROFIBUS; SIMATIC Memory Card required.
Detailed Parameters
Product family:SIMATIC S7-1500T
Module designation:CPU 1517T-3 PN/DP
Work memory for program:3 MB
Work memory for data:8 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:Ethernet
3rd interface:PROFIBUS
Bit performance:2 ns
Memory card requirement:SIMATIC Memory Card required
Engineering Context
The CPU 1517T-3 PN/DP in SIMATIC S7-1500T is configured as a central processing unit with defined work memory for program and data.
The CPU provides access via PROFINET IRT with a 2-port switch, plus Ethernet and PROFIBUS interfaces depending on the system configuration.
SIMATIC Memory Card is required for the CPU operation as specified.
FAQ
1. What product family does 6ES7517-3TP00-0AB0 belong to?
It belongs to the SIMATIC S7-1500T product family.
2. What is the official module designation for 6ES7517-3TP00-0AB0?
The official module designation is CPU 1517T-3 PN/DP.
3. How much work memory is provided for program and for data?
It provides 3 MB work memory for program and 8 MB work memory for data.
4. Which interfaces are available on the CPU?
It includes PROFINET IRT with 2-port switch as the 1st interface, Ethernet as the 2nd interface, and PROFIBUS as the 3rd interface.
5. What is the specified bit performance?
The specified bit performance is 2 ns.
6. Is a memory card required?
Yes, SIMATIC Memory Card required.
