Product information

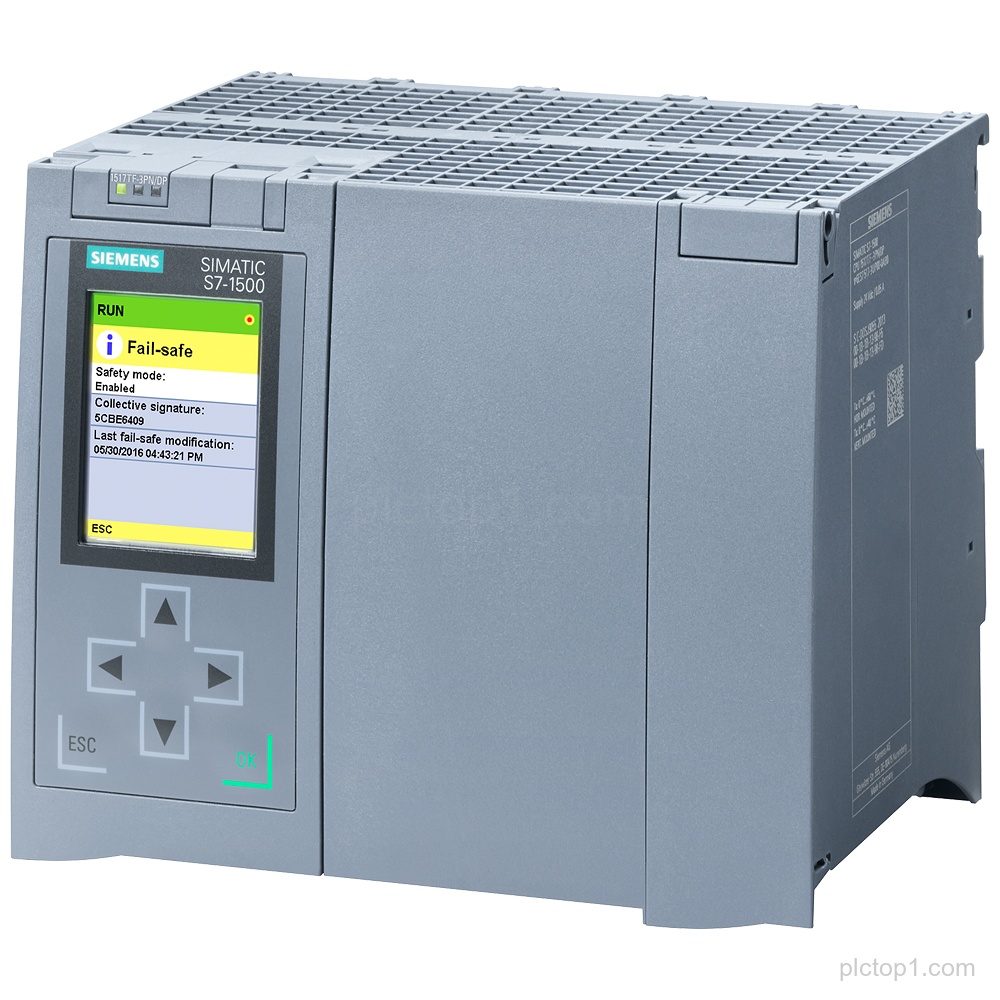

SIMATIC S7-1500TF CPU 1517TF-3 PN/DP (Part number: 6ES7517-3UP00-0AB0) provides central processing with work memory 3 MB for program and 8 MB for data, including PROFINET IRT with 2-port switch, Ethernet, and PROFIBUS interfaces; SIMATIC Memory Card required.
Detailed Parameters
Product family:SIMATIC S7-1500TF
CPU designation:CPU 1517TF-3 PN/DP
Work memory (program):3 MB
Work memory (data):8 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:Ethernet
3rd interface:PROFIBUS
Bit performance:2 ns
Memory card:SIMATIC Memory Card required
Engineering Context
CPU 1517TF-3 PN/DP is specified as the central processing unit within the SIMATIC S7-1500TF product family.
The CPU includes a PROFINET IRT interface with a 2-port switch as the 1st interface, with Ethernet as the 2nd interface and PROFIBUS as the 3rd interface.
Work memory is specified as 3 MB for program and 8 MB for data, and SIMATIC Memory Card is required.
FAQ
1. Which SIMATIC S7-1500TF CPU designation corresponds to part number 6ES7517-3UP00-0AB0?
The part number 6ES7517-3UP00-0AB0 corresponds to CPU 1517TF-3 PN/DP in the SIMATIC S7-1500TF family.
2. What work memory is available for program and data?
The work memory is 3 MB for program and 8 MB for data.
3. What interfaces are provided on this CPU?
The interfaces are: 1st interface PROFINET IRT with 2-port switch, 2nd interface Ethernet, and 3rd interface PROFIBUS.
4. Is a memory card required for this CPU?
Yes, SIMATIC Memory Card required.
5. What is the specified bit performance of the CPU?
The specified bit performance is 2 ns.
