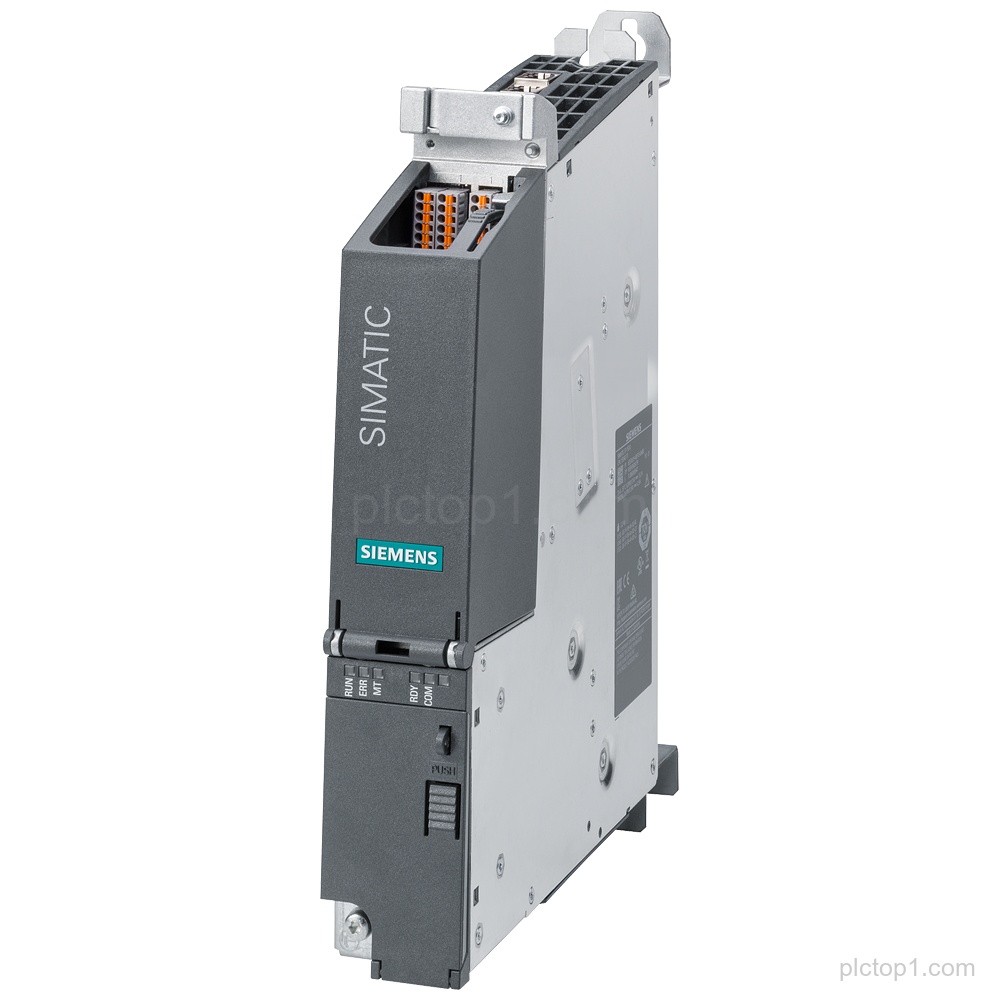

SIMATIC S7-1500 Drive Controller CPU 1507D TF with SINAMICS S120 Integrated (Part number: 6ES7615-7DF10-0AB0) supports defined interface counts and firmware version ranges.
Detailed Parameters
Product family / system:SIMATIC S7-1500
CPU designation:Drive Controller CPU 1507D TF
Integrated system:SINAMICS S120
Interfaces:12 DI; 16 DI/DQ; 4 DRIVE-CLiQ; 3 PROFINET (3+1+1 ports); 1 PROFIBUS
Memory:SIMATIC Memory Card required
Supported firmware (SIMATIC S7-1500):up to V3.1 (technology version up to V8.0)
Supported firmware (SINAMICS):V5.2/V5.2 SP3
Engineering Context
The SIMATIC S7-1500 Drive Controller CPU 1507D TF supports drive integration with SINAMICS S120 Integrated.
The available hardware interfaces include DI, DI/DQ, DRIVE-CLiQ, PROFINET (3+1+1 ports), and PROFIBUS depending on system configuration.
Firmware support is specified for SIMATIC S7-1500 up to V3.1 (technology version up to V8.0) and for SINAMICS FW V5.2/V5.2 SP3.
FAQ
1. What system and CPU designation are associated with Part number 6ES7615-7DF10-0AB0?
SIMATIC S7-1500 Drive Controller CPU 1507D TF with SINAMICS S120 Integrated.
2. How many DI and DI/DQ inputs does this CPU provide?
The interfaces include 12 DI and 16 DI/DQ.
3. How many DRIVE-CLiQ interfaces and PROFINET ports are specified?
The interfaces include 4 DRIVE-CLiQ and 3 PROFINET (3+1+1 ports).
4. Does it include PROFIBUS connectivity?
Yes, 1 PROFIBUS is specified.
5. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required is specified.
6. What firmware versions are supported?
SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0) and SINAMICS FW V5.2/V5.2 SP3.
