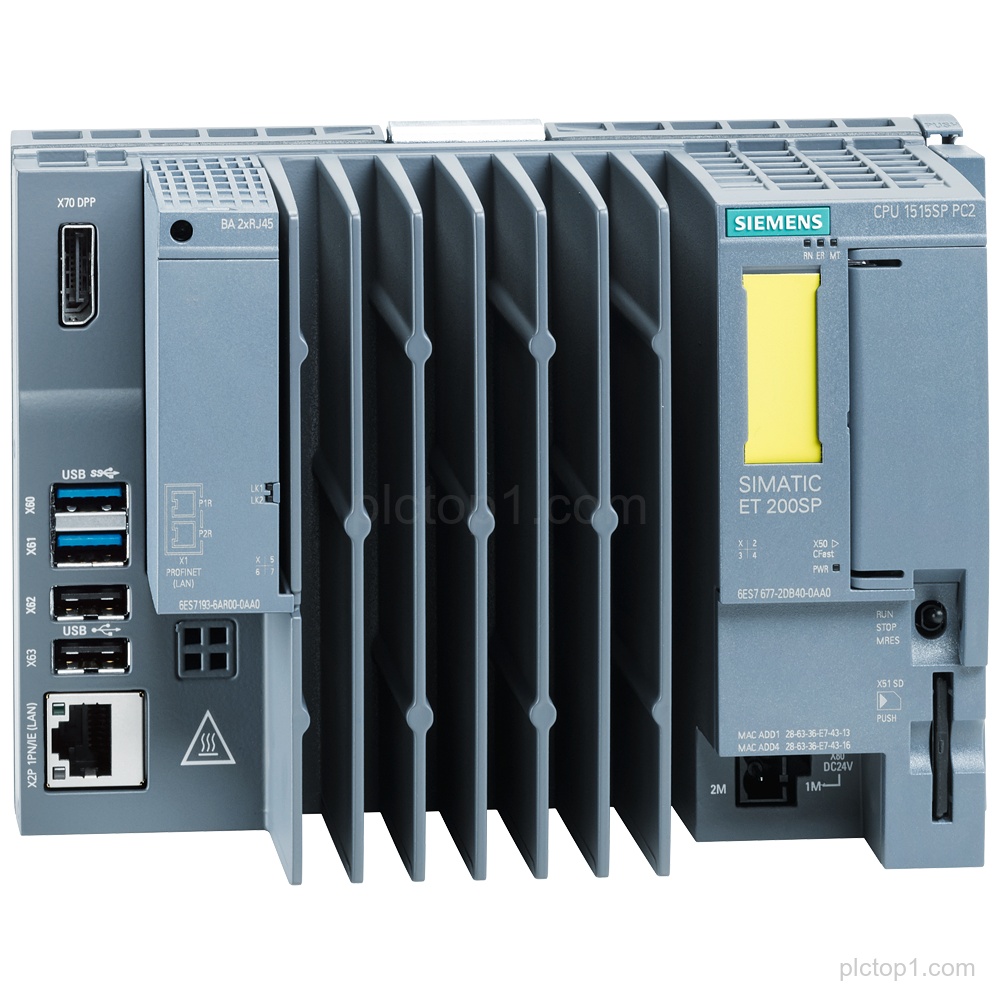

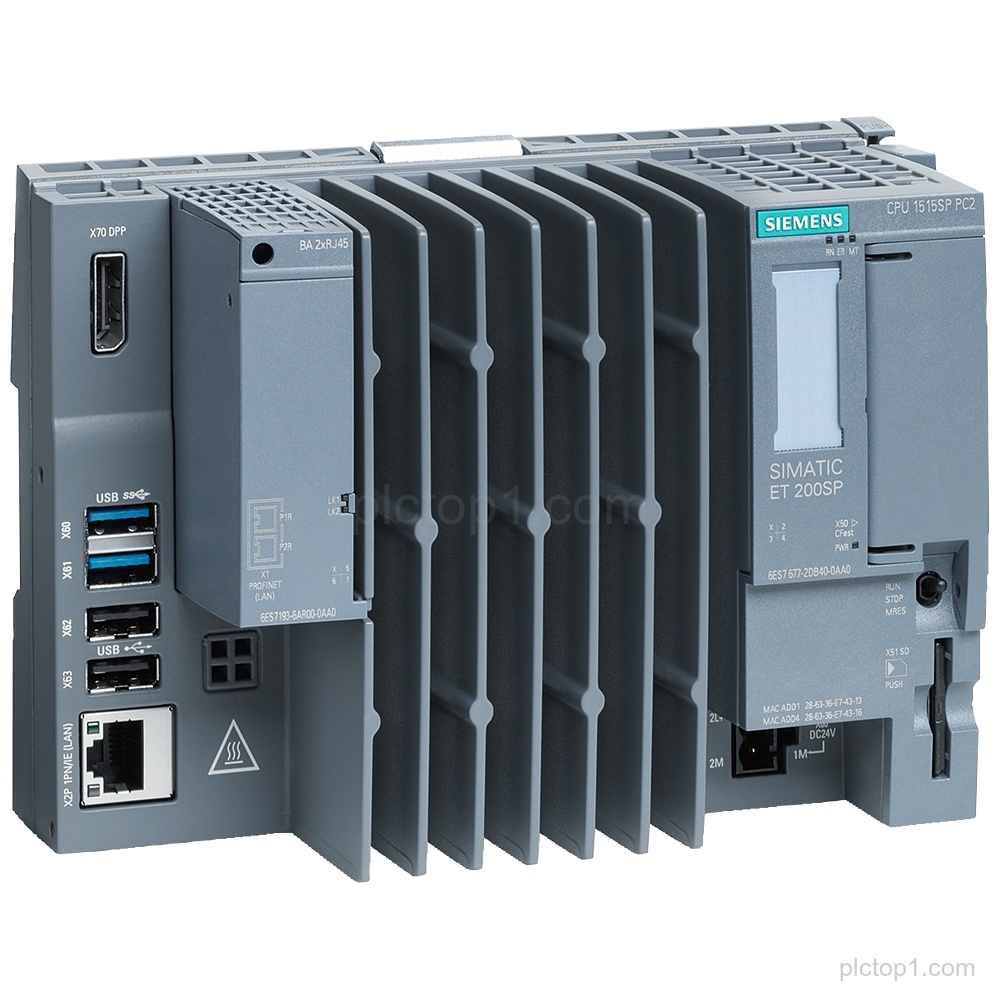

SIMATIC ET 200SP Open Controller with part number 6ES7677-2VB42-0GK0 provides an Open Controller solution including CPU 1515SP PC2 T and preinstalled software for S7-1500 Software Controller CPU 1505SP T V2x and WinCC Runtime Advanced V17.
Detailed Parameters
Product family:SIMATIC ET 200SP Open Controller
CPU designation:CPU 1515SP PC2 T
HMI capacity:128PT
RAM:8 GB
basic device:6ES7677-2DB40-0AA0
CFast capacity:128 GB
CFast OS:Windows 10 IoT Enterprise LTSC 2019 64-bit
S7-1500 software controller:S7-1500 Software Controller CPU 1505SP T V2x
HMI runtime:WinCC Runtime Advanced V17
PowerTags license:128
CFast slot:1x slot CFast
SD/MMC slot:1x slot SD/MMC
ET 200SP BusAdapter interface:1x connection for ET 200SP BusAdapter PROFINET
Ethernet:1x 10/100/1000 Mbps Ethernet
USB 3.0 ports:2x USB 3.0
USB 2.0 ports:2x USB 2.0
DisplayPort:1x DisplayPort
Documentation:documentation on CFast
Engineering Context
The SIMATIC ET 200SP Open Controller integrates CPU 1515SP PC2 T with preinstalled S7-1500 Software Controller CPU 1505SP T V2x and WinCC Runtime Advanced V17.
The configuration includes Windows 10 IoT Enterprise LTSC 2019 64-bit on a 128 GB CFast with 128 PowerTags license.
The interfaces include an ET 200SP BusAdapter PROFINET connection, Ethernet 10/100/1000 Mbps, multiple USB ports, and a DisplayPort.
FAQ
1. What CPU and HMI capacity are included in 6ES7677-2VB42-0GK0?
It includes CPU 1515SP PC2 T and HMI 128PT.
2. Which software controller and HMI runtime are preinstalled?
S7-1500 Software Controller CPU 1505SP T V2x and WinCC Runtime Advanced V17 are preinstalled.
3. What is the operating system and storage capacity on the CFast?
The CFast is 128 GB and contains Windows 10 IoT Enterprise LTSC 2019 64-bit.
4. Which interface options are specified for this product?
The interfaces include 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, and 1x DisplayPort.
5. How many PowerTags licenses are included?
The configuration includes a 128 PowerTags license.
