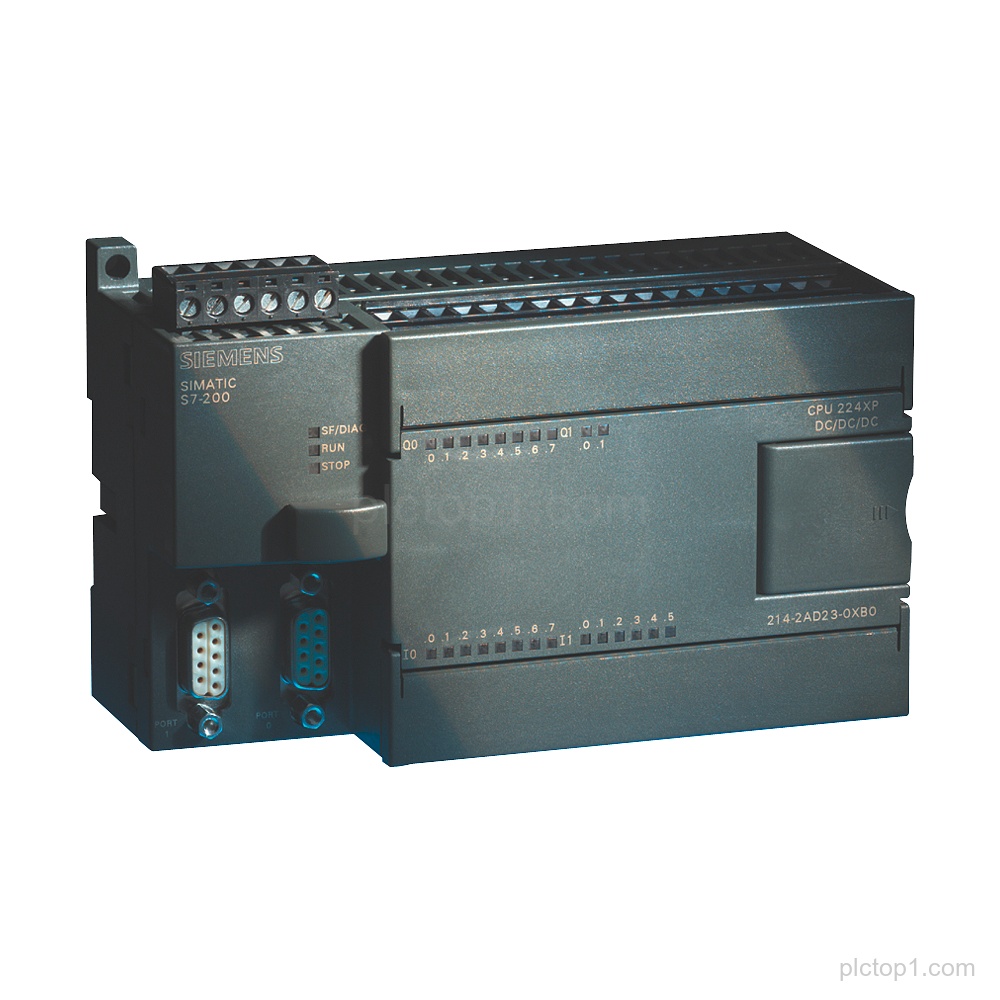

SIMATIC S7-200 CN CPU 224XP Compact device (Part Number: 6ES7214-2BD23-0XB8) provides AC power supply with 14DI DC/10DO relay and includes 2 AI and 1 AO for system control where this S7-200 CN product is used.
Detailed Parameters
Product family:SIMATIC S7-200 CN
Device:CPU 224XP Compact
Spare part:Yes
Power supply:AC power supply
Digital inputs:14DI DC
Digital outputs:10DO relay
Analog inputs:2 AI
Analog output:1 AO
Program memory:12/16 KB
Data memory:10 KB
PPI/user-programmable interface:2
Approval:CE
Engineering Context
The CPU 224XP Compact is provided as a SIMATIC S7-200 CN spare part with AC power supply and mixed digital and analog I/O.
The digital output stage is specified as 10DO relay and digital inputs as 14DI DC within the CPU 224XP Compact configuration.
The device includes 2 PPI/user-programmable interface connections depending on system configuration.
FAQ
1. What is the product family and device designation for Part Number 6ES7214-2BD23-0XB8?
It is a SIMATIC S7-200 CN CPU 224XP Compact device.
2. Is this item identified as a spare part?
Yes.
3. What power supply does the CPU 224XP Compact use?
AC power supply.
4. How many digital inputs and what type are provided?
14DI DC.
5. How many digital outputs are provided and what output type is specified?
10DO relay.
6. How many analog inputs and analog outputs are specified?
2 AI and 1 AO.
7. What memory capacities are specified for program and data?
12/16 KB program memory and 10 KB data memory; it also states 10 KB data in the information provided.
8. How many PPI/user-programmable interface connections are specified?
2.
9. What approval is stated for this SIMATIC S7-200 CN product?
CE approval.
