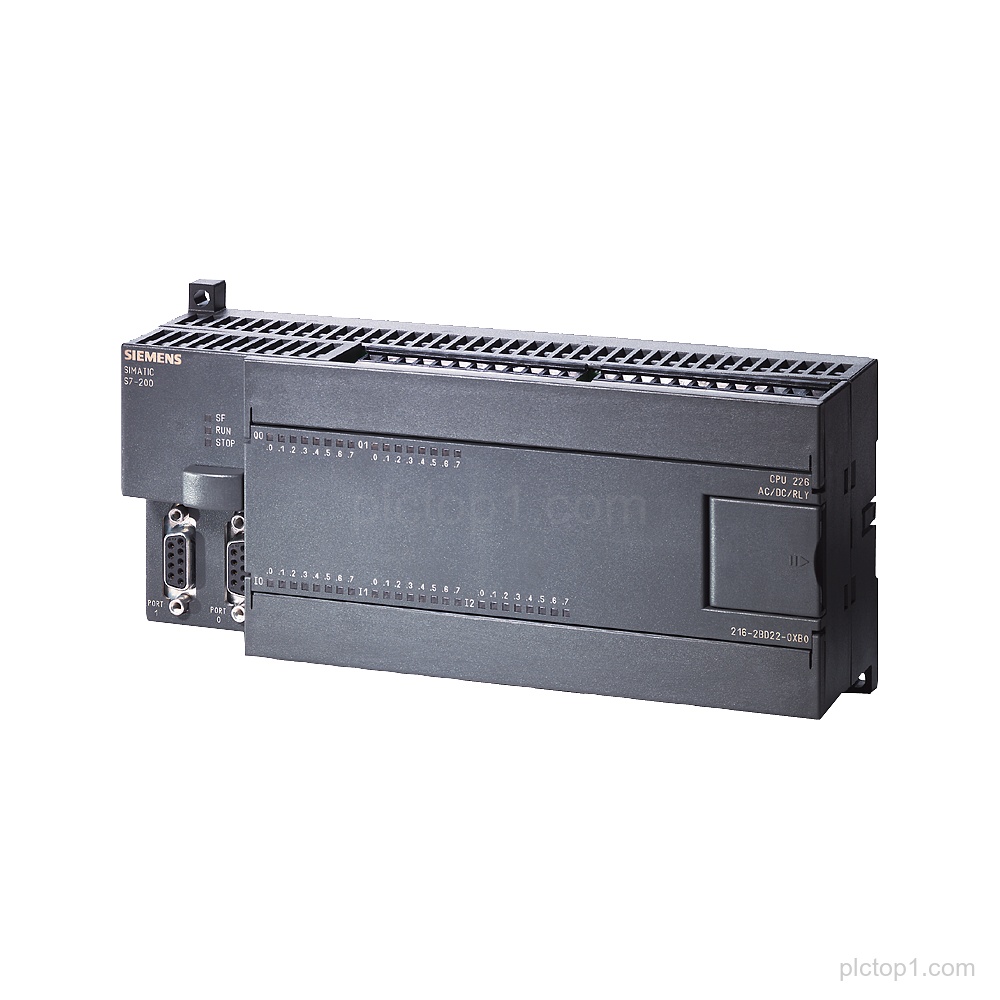

SIMATIC S7-200 CN CPU 226 Compact device, part number 6ES7216-2AD23-0XB8, provides a DC power supply and digital I/O for configured control applications, with 2 PPI/user-programmable interface and specified program and data memory.
Detailed Parameters
Spare part:Yes
Product family:SIMATIC S7-200 CN
CPU:CPU 226 Compact device
Power supply:DC power supply 24
DI:16 DI DC
DO:16 DO DC
Program memory:16/24 KB progr.
Data memory:10 KB data
Interface:2 PPI
PPI/user-programmable interface:2 PPI/user-programmable interface
Approvals:CE approval
Scope note:This S7-200 CN product only has CE approval
Engineering Context
The CPU 226 Compact device in the SIMATIC S7-200 CN family is specified with a DC power supply 24 and digital I/O 16 DI DC/16 DO DC.
The CPU 226 Compact device provides 16/24 KB program memory and 10 KB data memory as stated in the product information.
The device supports 2 PPI/user-programmable interface as provided in the product information.
FAQ
1. What is the SIMATIC product family and CPU designation for part 6ES7216-2AD23-0XB8?
SIMATIC S7-200 CN, CPU 226 Compact device.
2. What power supply type is specified for this CPU 226 Compact device?
DC power supply 24.
3. How many digital inputs and outputs are specified?
16 DI DC and 16 DO DC.
4. What are the specified program and data memory sizes?
16/24 KB progr. and 10 KB data.
5. How many PPI/user-programmable interfaces are specified?
2 PPI/user-programmable interface.
6. What approval information is provided?
This S7-200 CN product only has CE approval.
