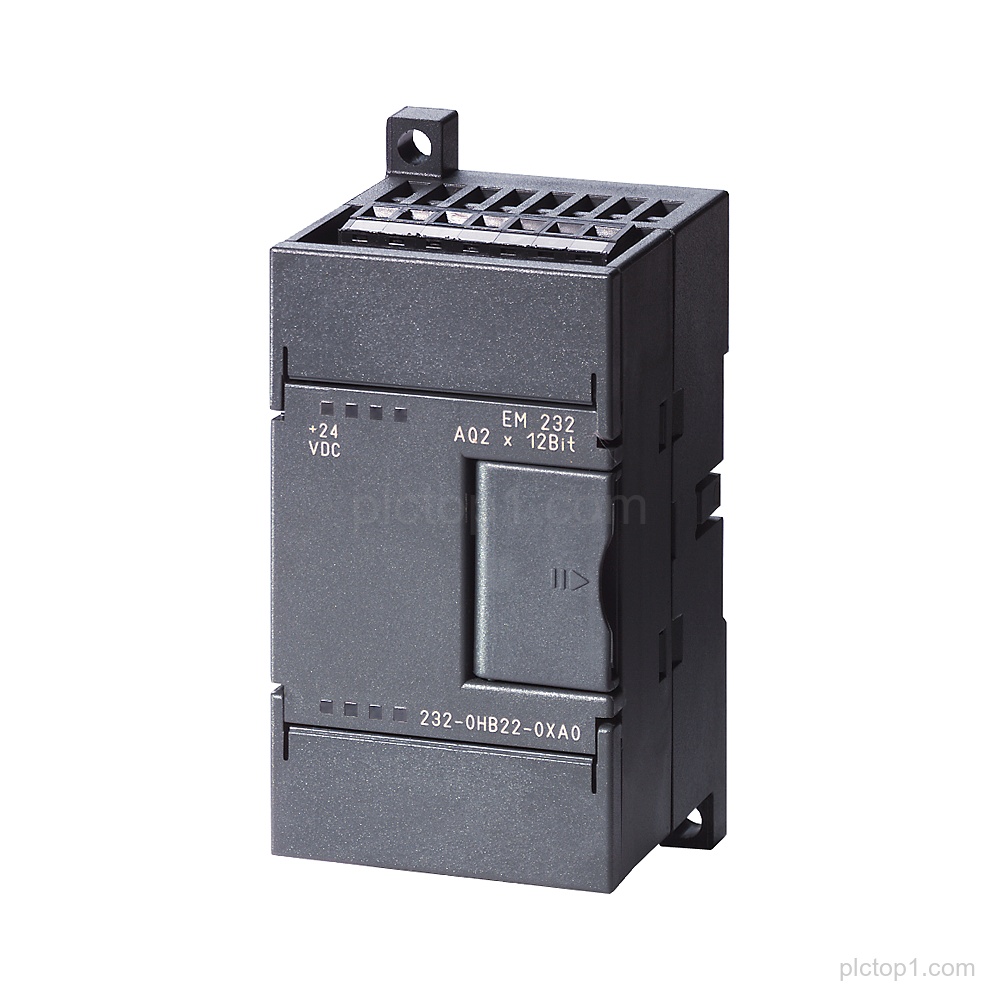

SIMATIC S7-200 CN analog output EM 232 (Part Number: 6ES7232-0HB22-0XA8) provides 2 AO channels for use only with S7-22X CPU.
Detailed Parameters
Product type:SIMATIC S7-200 CN analog output EM 232
Spare part:*** spare part ***
CPU compatibility:only for S7-22X CPU
Channel count:2 AO
Output range:+/-10 V DC
Converter resolution:12 bit converter
Approval:CE approval
Engineering Context
The EM 232 is an analog output module in the SIMATIC S7-200 CN product family intended for use with S7-22X CPU.
The module provides 2 analog output channels with a +/-10 V DC output range and 12 bit conversion.
As a SIMATIC S7-200 CN product, it is specified as CE approved.
FAQ
1. What is the SIMATIC S7-200 CN function of part 6ES7232-0HB22-0XA8?
It is an analog output EM 232 module.
2. How many analog output channels are provided?
2 AO.
3. What output voltage range does the module support?
+/-10 V DC.
4. What is the converter resolution?
12 bit converter.
5. Which CPU is this module intended for?
Only for S7-22X CPU.
6. What approval is listed for this SIMATIC S7-200 CN product?
CE approval.
