Product information

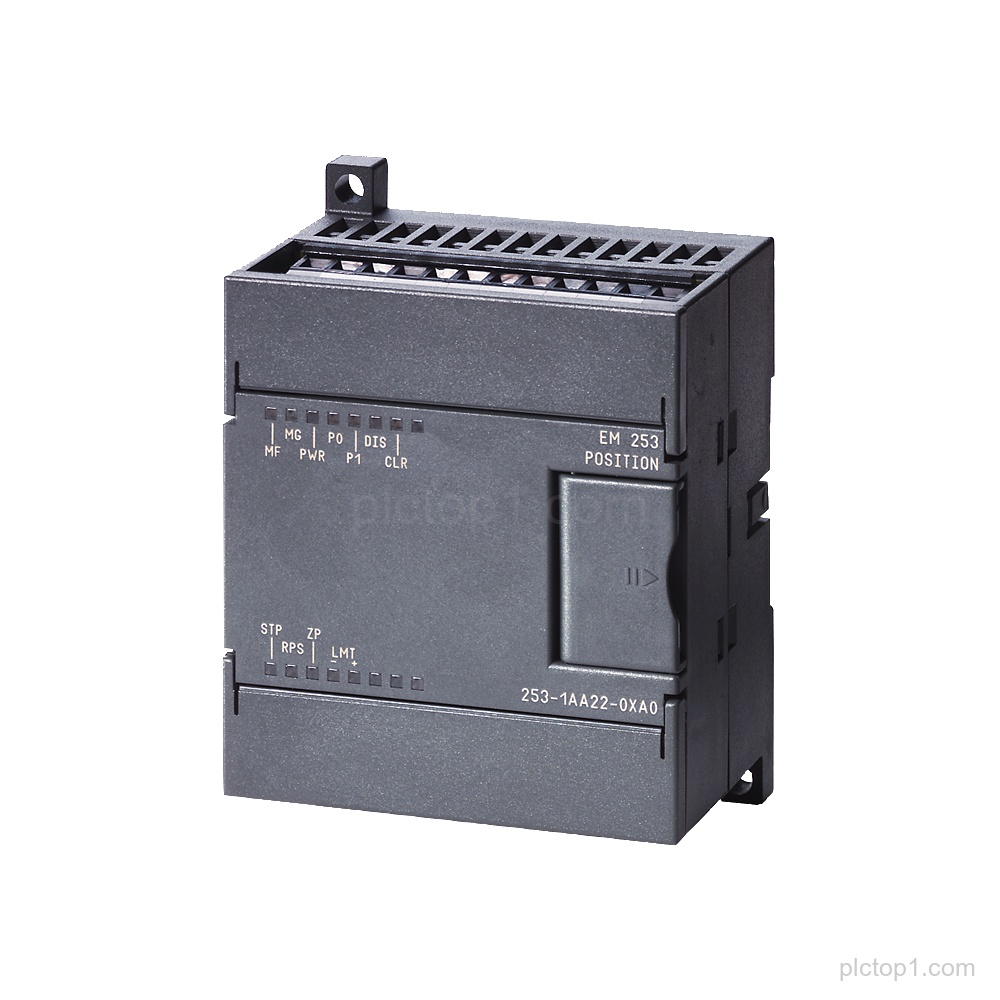

SIMATIC S7-200 EM253 positioning expansion module; part number 6ES7253-1AA22-0XA0. The module supports positioning expansion functionality with 200 kHz and open-loop control, with programming via Micro/WIN.
Detailed Parameters
Product family:SIMATIC S7-200
Module:EM253 positioning expansion module
Signal frequency:200 kHz
Control type:open-loop control
Intended control for:stepper motors or servo drives
Programming:programming via Micro/WIN
Engineering Context
The EM253 positioning expansion module is part of the SIMATIC S7-200 system and is intended for positioning-related control at 200 kHz.
The module performs open-loop control for stepper motors or servo drives depending on system configuration.
Programming is provided via Micro/WIN for configuring the EM253 module.
FAQ
1. Which product family does 6ES7253-1AA22-0XA0 belong to?
6ES7253-1AA22-0XA0 belongs to the SIMATIC S7-200 product family.
2. What is the function of the EM253 module?
It is an EM253 positioning expansion module for controlling stepper motors or servo drives.
3. What control type is supported?
The module supports open-loop control.
4. What is the specified frequency?
The module is specified with 200 kHz.
5. How is the module programmed?
It is programmed via Micro/WIN.
6. Is this part identified as a spare part?
Yes, it is identified as a spare part.
