Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

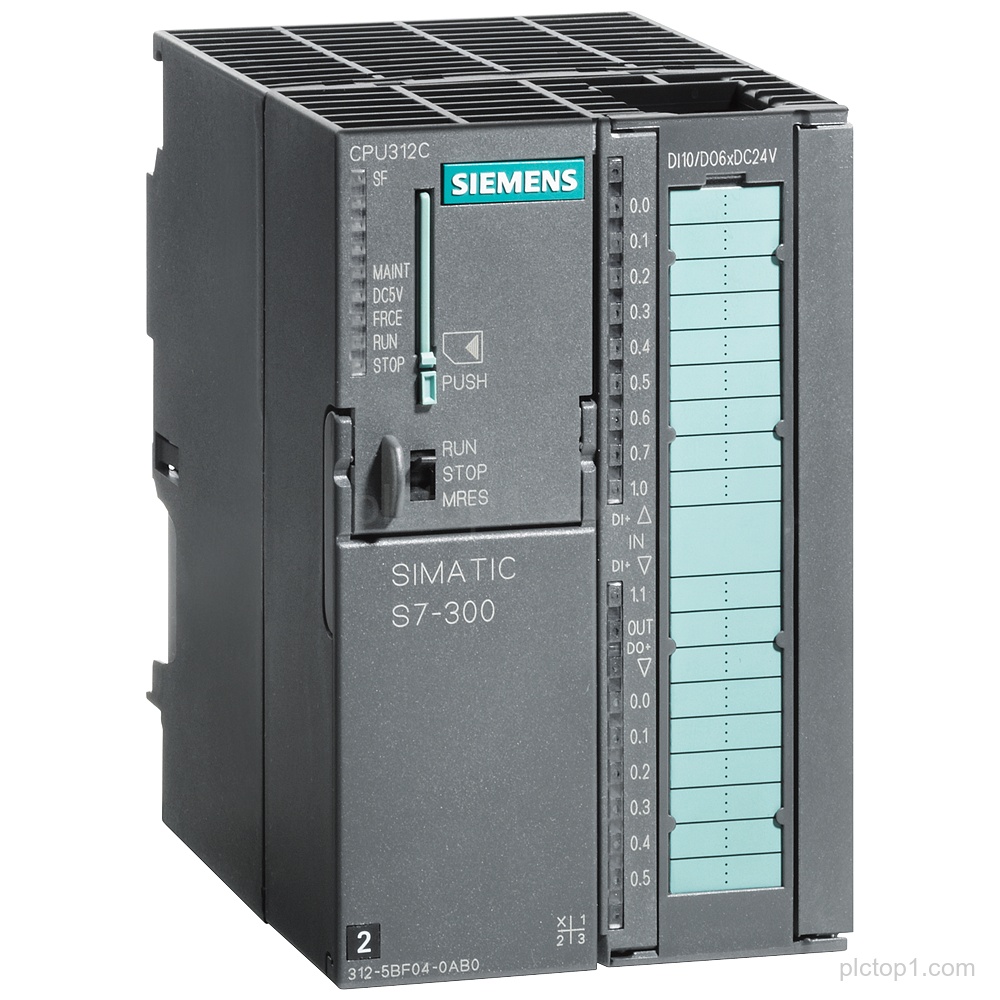

SIMATIC S7-300 CPU 312C compact CPU with MPI; spare part number 6ES7312-5BF04-0AB0.
Detailed Parameters
MPI:included
DI:10
DO:6
High-speed counters:2
High-speed counter frequency:10 kHz
Integrated power supply:24 V DC
Work memory:64 KB
Front connector:1x 40-pole
Micro Memory Card:required
Engineering Context
SIMATIC S7-300 CPU 312C compact CPU provides 10 DI and 6 DO and includes 2 high-speed counters (10 kHz).
The CPU 312C compact CPU integrates a power supply 24 V DC and includes work memory of 64 KB.
A front connector (1x 40-pole) is used and a Micro Memory Card is required.
FAQ
1. What is the product family and designation for part 6ES7312-5BF04-0AB0?
It is SIMATIC S7-300 CPU 312C compact CPU with MPI.
2. How many digital inputs and digital outputs does CPU 312C provide?
CPU 312C provides 10 DI and 6 DO.
3. How many high-speed counters are integrated, and what is the counter frequency?
It includes 2 high-speed counters with a frequency of 10 kHz.
4. What power supply is integrated in this CPU?
It has an integrated power supply of 24 V DC.
5. What work memory size is provided?
The work memory is 64 KB.
6. Is a Micro Memory Card required?
Yes, a Micro Memory Card is required.
