Product information

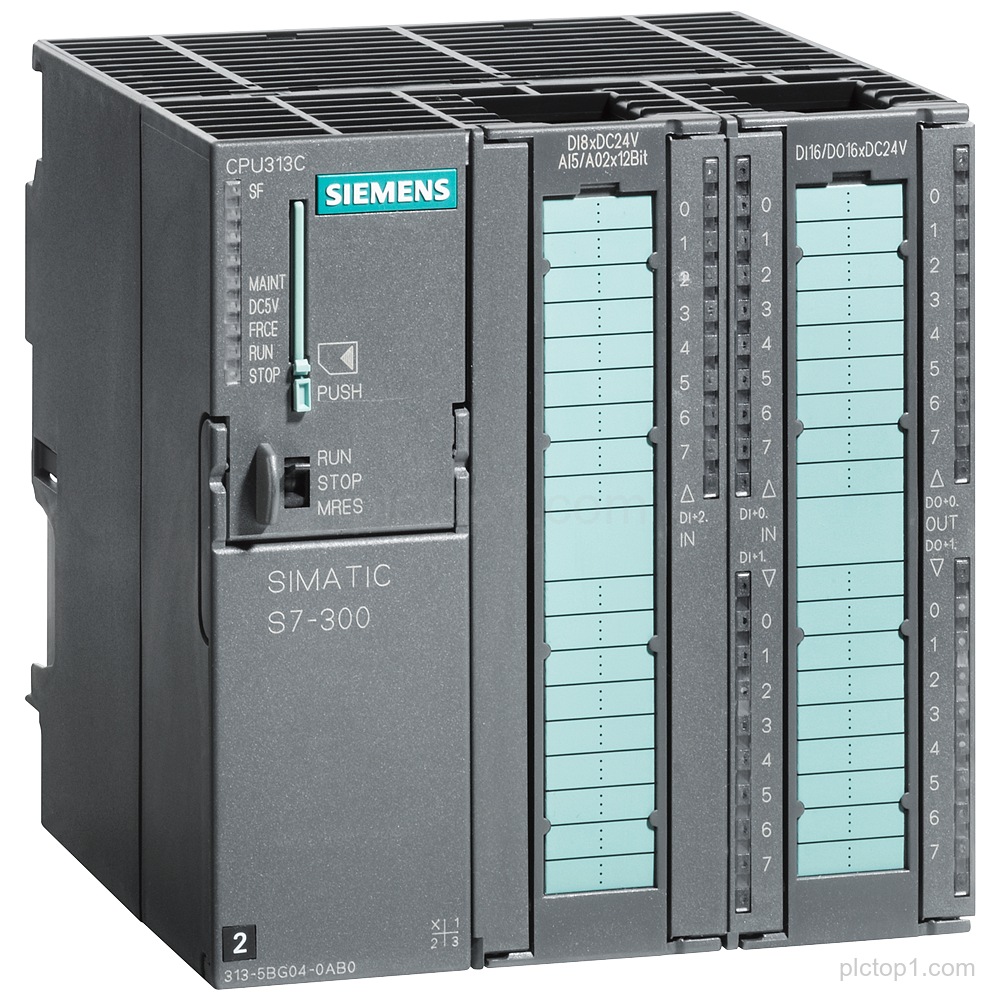

SIMATIC S7-300, 6ES7313-5BG04-0AB0, CPU 313C is a compact CPU with MPI. It includes 24 DI, 16 DO, 4 AI, 2 AO, 1 Pt100, and 3 high-speed counters at 30 kHz. An integrated power supply 24 V DC is included. Work memory is 128 KB. Front connector (2x 40-pole) and Micro Memory Card are required.
Detailed Parameters
Product family:SIMATIC S7-300
CPU designation:CPU 313C
Communication:MPI
Digital inputs:24 DI
Digital outputs:16 DO
Analog inputs:4 AI
Analog outputs:2 AO
Temperature input:1 Pt100
High-speed counters:3
High-speed counter frequency:30 kHz
Integrated power supply:24 V DC
Work memory:128 KB
Required front connector:2x 40-pole
Required memory card:Micro Memory Card
Product status:spare part
Engineering Context
The CPU 313C combines compact CPU functionality with integrated digital and analog I/O.
The module includes a Pt100 input and three high-speed counters with 30 kHz capability.
Front connector and Micro Memory Card are required for use.
FAQ
1. What product family does 6ES7313-5BG04-0AB0 belong to?
It belongs to the SIMATIC S7-300 product family.
2. What is the CPU designation of this spare part?
The CPU designation is CPU 313C.
3. How many digital inputs and outputs are included?
It includes 24 DI and 16 DO.
4. What analog channels are included?
It includes 4 AI and 2 AO.
5. What additional input and counter functions are specified?
It includes 1 Pt100 input and 3 high-speed counters at 30 kHz.
