Product information

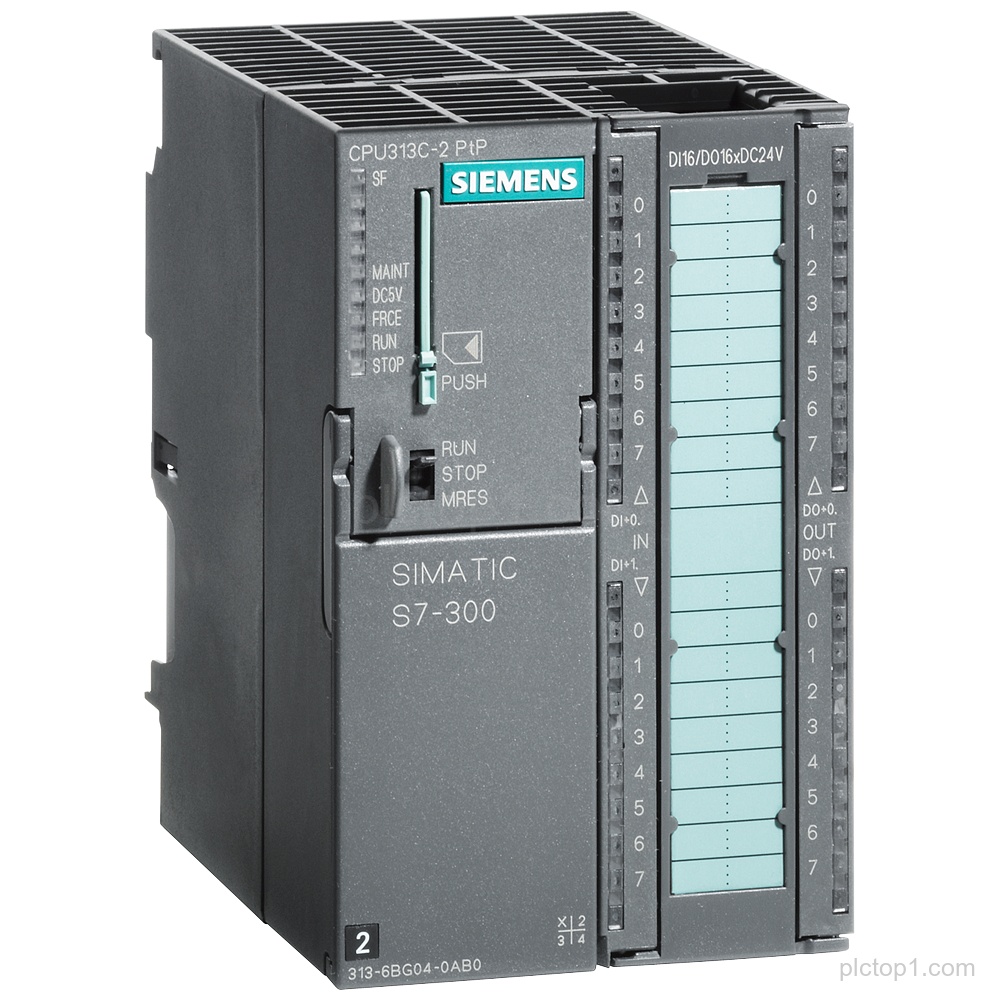

SIMATIC S7-300 compact CPU 313C-2 PTP (part number: 6ES7313-6BG04-0AB0) integrates MPI and includes 16 DI/16 DO, 3 high-speed counters, an integrated RS485 interface, and an integrated 24 V DC power supply; a front connector (1x 40-pole) and Micro Memory Card are required.
Detailed Parameters
Product type:compact CPU
products:SIMATIC S7-300
CPU designation:CPU 313C-2 PTP
Interface:MPI
DI/DO:16 DI/16 DO
High-speed counters:3 high-speed counters (30 kHz)
Integrated interface:RS485
Power supply:integrated power supply 24 V DC
Work memory:128 KB
Front connector:1x 40-pole
Micro Memory Card:required
Spare part:spare part
Engineering Context
The SIMATIC S7-300 CPU 313C-2 PTP compact CPU provides integrated MPI and an integrated RS485 interface.
The integrated I/O specification includes 16 DI/16 DO and 3 high-speed counters (30 kHz).
The CPU operates with an integrated 24 V DC power supply and has 128 KB work memory, with a Micro Memory Card required.
FAQ
1. What is the SIMATIC family and CPU designation for part number 6ES7313-6BG04-0AB0?
The part number 6ES7313-6BG04-0AB0 is for SIMATIC S7-300 CPU 313C-2 PTP (compact CPU).
2. How many digital inputs and outputs does CPU 313C-2 PTP provide?
It provides 16 DI/16 DO.
3. How many high-speed counters are integrated, and what is the counter frequency?
It integrates 3 high-speed counters with a frequency of 30 kHz.
4. Which interfaces are integrated in the CPU 313C-2 PTP?
It has integrated interface MPI and an integrated interface RS485.
5. What power supply specification is included?
It includes an integrated power supply 24 V DC.
6. What additional components are required for the CPU 313C-2 PTP?
A front connector (1x 40-pole) and Micro Memory Card are required.
