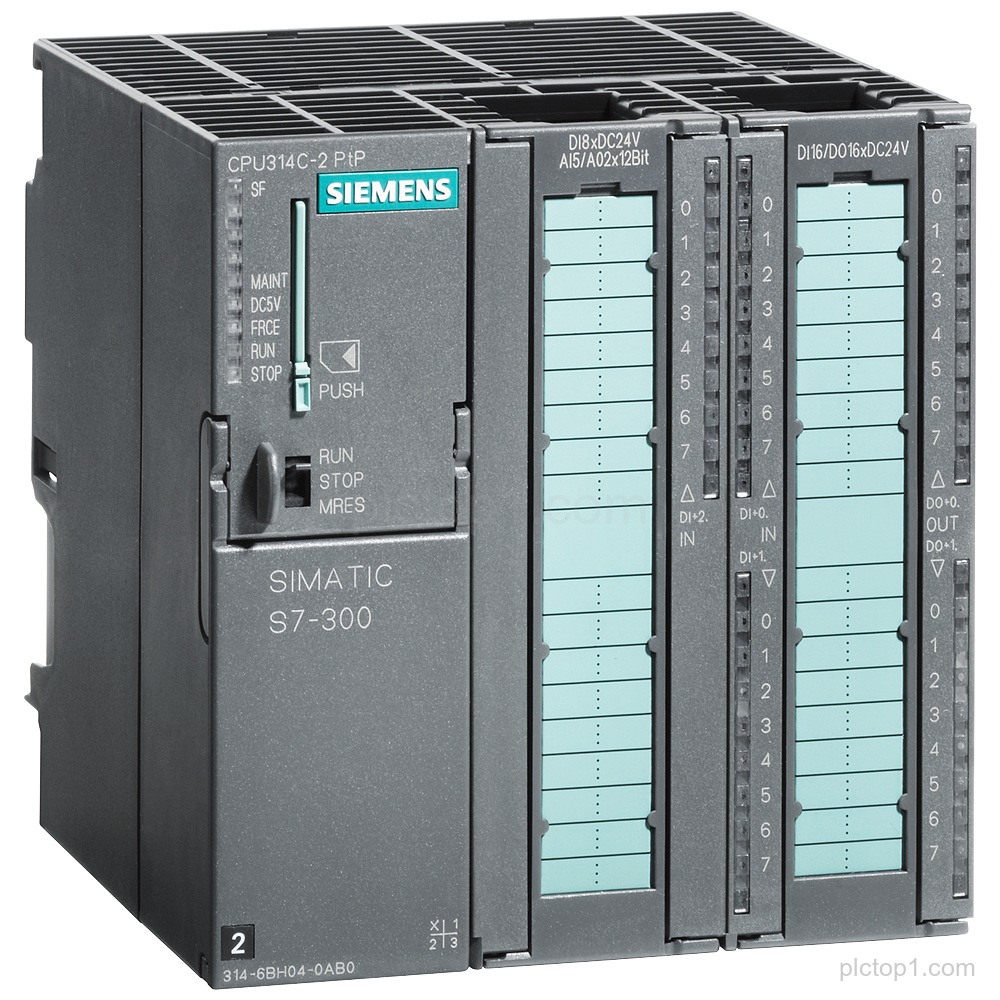

SIMATIC S7-300 CPU 314C-2 PTP compact CPU with MPI; part number 6ES7314-6BH04-0AB0.
Detailed Parameters
Product type:compact CPU with MPI
Number of DI:24
Number of DO:16
Number of AI:4
Number of AO:2
PT100:1
High-speed counters:4
High-speed counter frequency:60 kHz
Integrated interface:RS485
Integrated power supply:24 V DC
Work memory:192 KB
Front connector:2x 40-pole
Micro Memory Card:required
Engineering Context
This spare part is for SIMATIC S7-300 and is specified as CPU 314C-2 PTP compact CPU with MPI.
The CPU configuration includes integrated interface RS485 and an integrated power supply 24 V DC.
The integrated I/O and counters are specified as 24 DI/16 DO, 4 AI/2 AO, and 4 high-speed counters (60 kHz) plus 1 Pt100.
