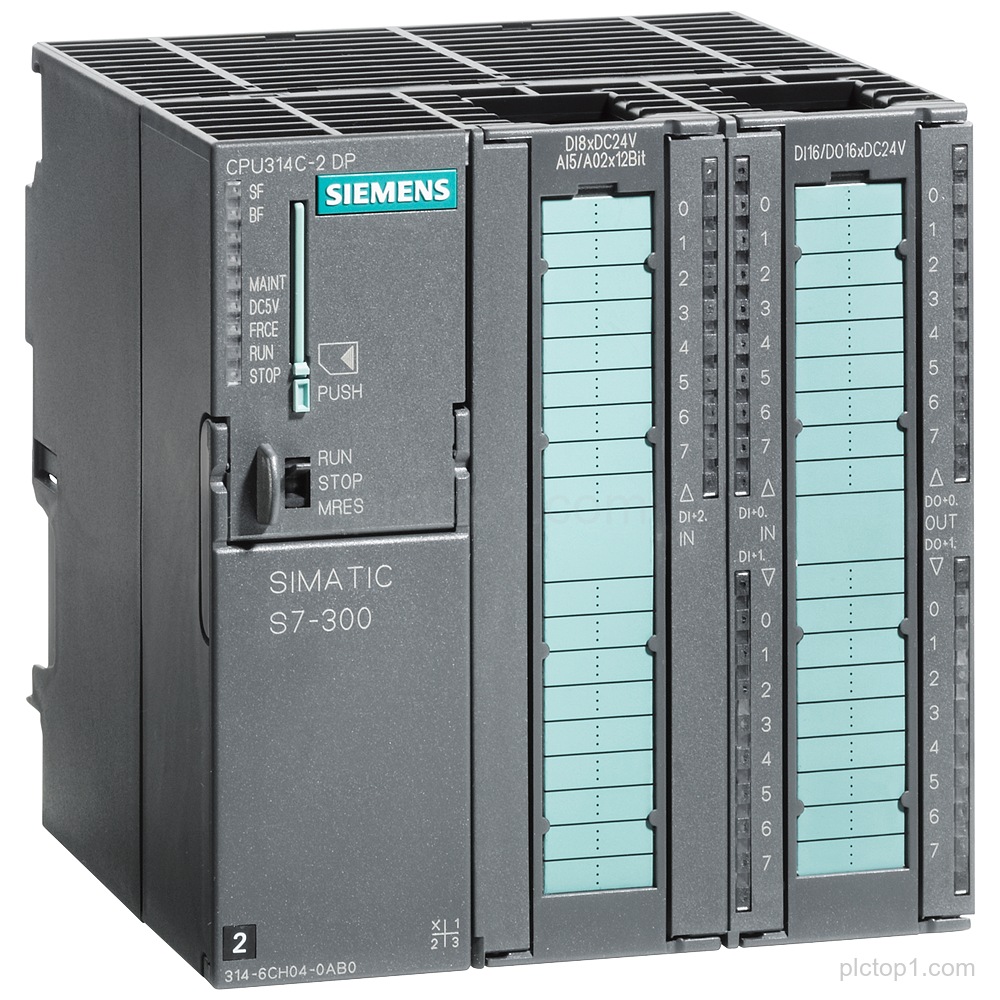

SIMATIC S7-300 CPU 314C-2 DP compact (part number 6ES7314-6CH04-0AB0) provides MPI and integrated DP interface with integrated power supply 24 V DC, and is supplied as a spare part with a requirement for a Micro Memory Card and the front connector (2x 40-pole).
Detailed Parameters
Product family:SIMATIC S7-300
CPU designation:CPU 314C-2 DP compact CPU with MPI
Function:compact CPU
Spare part:Yes
Digital inputs:24 DI
Digital outputs:16 DO
Analog inputs:4 AI
Analog outputs:2 AO
Temperature input:1 Pt100
High-speed counters:4 high-speed counters (60 kHz)
Interfaces:integrated DP interface
Power supply:integrated power supply 24 V DC
Work memory:192 KB
Front connector:front connector (2x 40-pole) required
Memory card:Micro Memory Card required
Engineering Context
CPU 314C-2 DP compact CPU with MPI is part of the SIMATIC S7-300 system and includes an integrated DP interface.
The integrated power supply 24 V DC supports the compact CPU configuration in the SIMATIC S7-300 setup.
High-speed counters are provided as 4 channels (60 kHz) for fast counting functions.
FAQ
1. What is the product family and CPU designation for part number 6ES7314-6CH04-0AB0?
SIMATIC S7-300, CPU 314C-2 DP compact CPU with MPI.
2. What input and output counts are stated for this CPU?
24 DI / 16 DO, 4 AI, and 2 AO, with 1 Pt100.
3. How many high-speed counters are provided, and what is the stated frequency?
4 high-speed counters (60 kHz).
4. Which interfaces and power supply are integrated?
An integrated DP interface and an integrated power supply 24 V DC are stated.
5. What memory and connection requirements are stated?
Work memory is 192 KB, and a front connector (2x 40-pole) and a Micro Memory Card are required.
6. Is part number 6ES7314-6CH04-0AB0 listed as a spare part?
Yes, it is listed as spare part.
