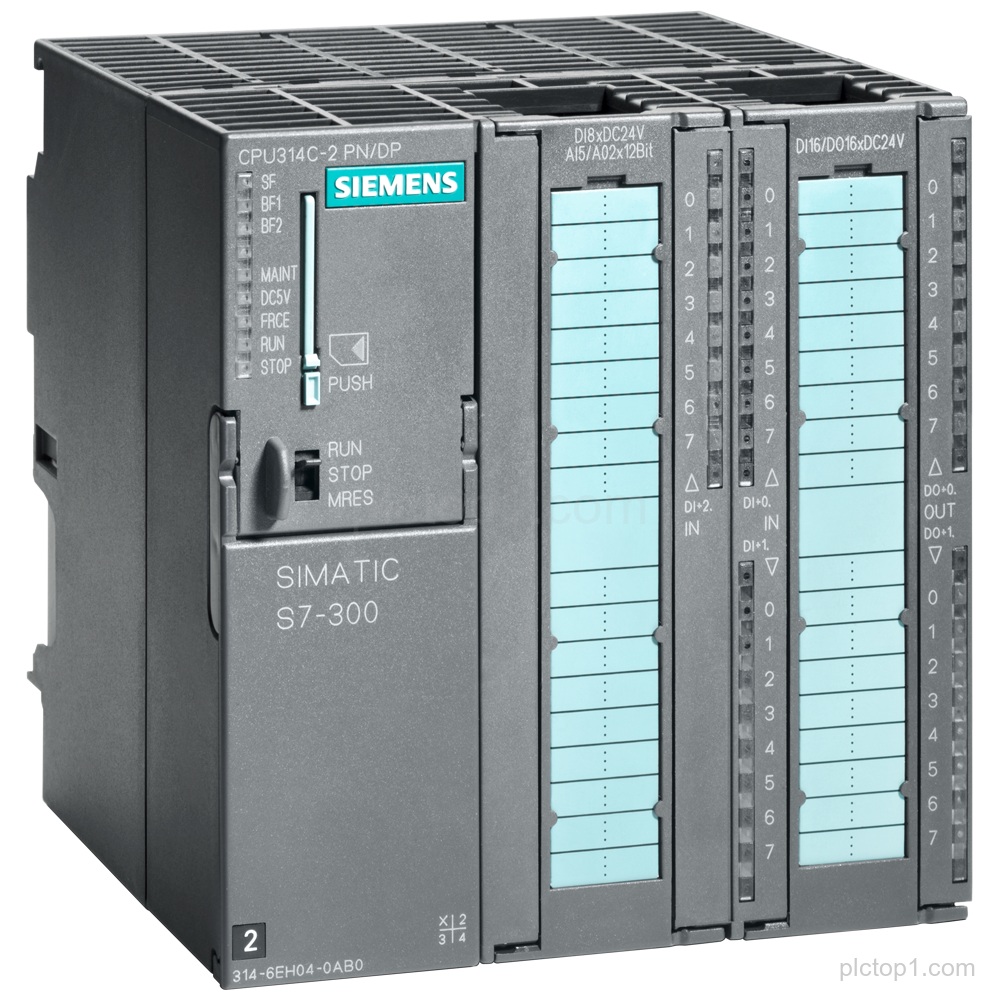

SIMATIC S7-300 CPU 314C-2PN/DP compact CPU 6ES7314-6EH04-0AB0 with 192 KB work memory and 2nd interface Ethernet PROFINET including 2-port switch.
Detailed Parameters
Product type:CPU 314C-2PN/DP compact CPU
Work memory:192 KB
Digital inputs (DI):24
Digital outputs (DO):16
Analog inputs (AI):4
Analog outputs (AO):2
Temperature input:1 Pt100
High-speed counters:4 (60 kHz)
1st interface:MPI/DP 12 Mbps
2nd interface:Ethernet PROFINET (with 2-port switch)
Integrated power supply:24 V DC
Front connector:2x 40-pole
Micro Memory Card:required
Engineering Context
CPU 314C-2PN/DP is part of the SIMATIC S7-300 compact CPU system configuration.
The CPU provides integrated digital and analog inputs/outputs including 24 DI/16 DO, 4 AI, and 2 AO.
The CPU includes two interfaces: MPI/DP 12 Mbps and Ethernet PROFINET with a 2-port switch.
FAQ
1. What is the SIMATIC product family and CPU designation for part number 6ES7314-6EH04-0AB0?
SIMATIC S7-300 CPU 314C-2PN/DP compact CPU.
2. How much work memory is provided?
192 KB work memory.
3. What input/output counts are specified for this CPU?
24 DI/16 DO, 4 AI, and 2 AO, plus 1 Pt100.
4. What high-speed counter capability is specified?
4 high-speed counters (60 kHz).
5. Which interfaces are included and what are their data rates/characteristics?
1st interface MPI/DP 12 Mbps and 2nd interface Ethernet PROFINET with 2-port switch.
6. Is an integrated power supply included, and what voltage is specified?
Yes, integrated power supply 24 V DC.
7. What is required for operation according to the provided information?
Micro Memory Card required.
